mobile PA systems: Amplifier systems and accessories

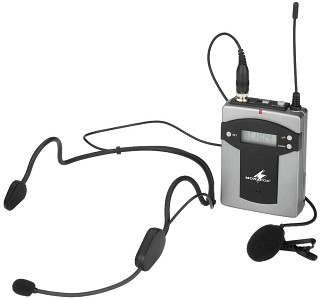

Multifrequency pocket transmitter TXA-800HSE

Multifrequency pocket transmitter, with UHF PLL technology. Matching the portable amplifier systems of the TXA-1000 and TXA-800 series.

1 headband microphone (omnidir. char.), 1 tie clip microphone (cardioid char.)
16 selectable UHF frequencies (863.1-864.9 MHz)
Metal housing
Microphone connection via 3-pole mini XLR jack
Audio line input via 3.5 mm stereo jack
Sensitivity to be adjusted in 3 steps
Mute function
Backlit LCD for indicating channel/frequency and battery status
Transmitting power: 10 mW (EIRP)
Power supply via 2 x 1.5 V battery AA size (not supplied)
Belt clip

Licence-free in the EU.

tastenwelt 02/2008

"The use of the headset is interesting for keyboard players."

Specifications:

Carrier frequency: 863.1-864.9 MHz
Audio frequency range: 70-16,000 Hz
Frequency stability: ±0.005 %
Operating time:
Dimensions: 65x95x30 mm
Weight: 110 g

Price per unit (Order No. mo-172250) EUR 305,60 excl. VAT: € 256.81 / $ 300.46

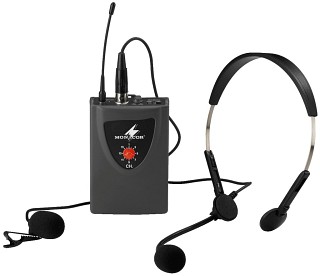

Multifrequency pocket transmitter TXA-100HSE

Multifrequency pocket transmitter, with UHF PLL technology. Matching the portable amplifier systems TXA-110 and TXA-120.1 headband microphone (omnidir. characteristic), 1 tie clip microphone (cardioid characterisic) 16 selectable UHF frequencies (863.050-864.925 MHz) Battery status indication Transmitting power:<10 mW (EIRP) Power supply via 2 x 1.5 V battery AA size (not supplied) Belt clip Licence-free in the EU.

Specifications:

Carrier frequency: 863.050-864.925 MHz
Audio frequency range: 50-18,000 Hz
Frequency stability: ±0.005 %
Operating time:
Dimensions: 65x100x35 mm
Weight: 320 g

Price per unit (Order No. mo-172440) EUR 232,67 excl. VAT: € 195.52 / $ 228.76

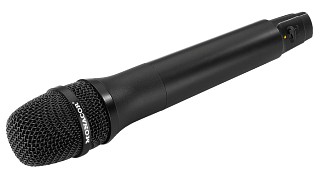

Hand-held microphone with integrated multifrequency transmitter TXA-100HT

Hand-held microphone with integrated multifrequency transmitter, with UHF PLL technology. Matching the portable amplifier systems TXA-110 and TXA-120.

Dynamic microphone cartridge, cardioid characteristic
16 selectable UHF frequencies (863.05-864.925 MHz)
Battery status indication
Transmitting power:<10 mW (EIRP)
Power supply via 2 x 1.5 V battery AA size (not supplied)

Licence-free in the EU.

Specifications:

Carrier frequency: 863.05-864.925 MHz
Audio frequency range: 50-18,000 Hz
Frequency stability: ±0.005 %
Operating time:
Dimensions: Ø 50 mm x 255 mm
Weight: 290 g

Price per unit (Order No. mo-172450) EUR 190,20 excl. VAT: € 159.83 / $ 187.00

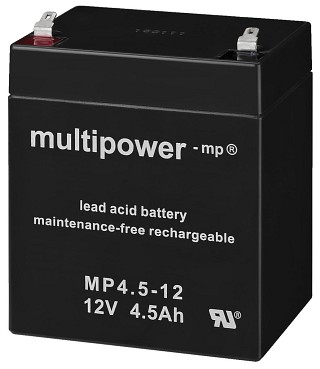

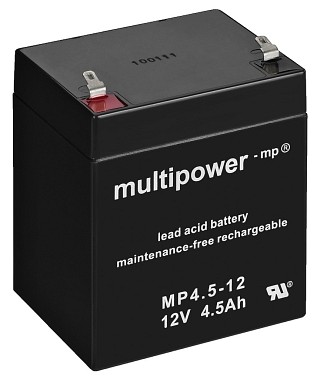

Rechargeable lead battery, 12 V TXA-1015ACCU

Rechargeable lead battery, 12 V, universal rech. battery, also suitable as a replacement for the TXA-1000 series.

Capacity: 12 V/4.5 Ah
Maintenance-free, hermetically sealed
Dimensions: 90x110x70 mm
Weight: 1.8 kg

Price per unit (Order No. mo-173210) EUR 30,76 excl. VAT: € 25.85 / $ 30.24

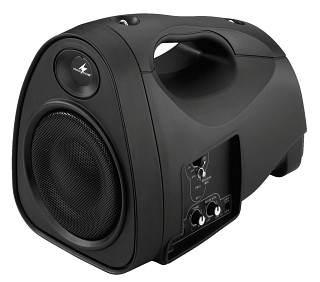

Portable amplifier system TXA-110

Portable amplifier system, with integrated adjustable multifrequency receiver unit with UHF PLL technology.

For mobile applications, e.g. at sales events, lectures
Robust plastic housing of compact size with carrying handle and carrying strap
Operation via built-in rechargeable lead gel battery 12 V/2.7 Ah (operating time: up to 3 hours) or supplied switch-mode PSU
Integrated automatic battery charging
1 wireless microphone channel with 16 selectable UHF frequencies (863.050-864.925 MHz) and volume control
1 microphone input via 6.3 mm jack, 1 line input via 3.5 mm jack, common volume control and tone control
1 mix output via 3.5 mm jack
9mm ( 3/8 ") stand thread
Supplied with practical protective shoulder bag which can stay on during operation

Licence-free in the EU. Matching microphone transmitters or pocket transmitters TXA-100HT or TXA-100HSE are available at option.

Specifications:

Output power: 50 W_MAX/36 W_RMS
Frequency range: 60-15,000 Hz
Carrier frequency: 863.050-864.925 MHz
Operating range: approx. 30 m
Sensitivities:
Mic inputs: 10 mV
Line inputs: 100 mV
Mix output: 560 mV
Equalizer: ±8 dB/10 kHz
Power supply: rech. batt. 12 V/2.7 Ah, via suppl. PSU
Admiss. ambient temp.: 0-40 °C
Dimensions: 160x210x290 mm
Weight: 3.15 kg

Price per unit (Order No. mo-172420) EUR 465,30 excl. VAT: € 391.01 / $ 457.48

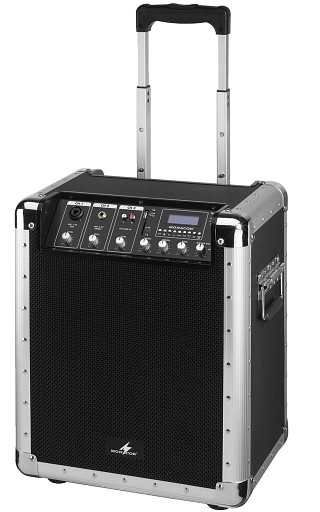

Portable amplifier system TXA-15USB

Portable amplifier system, with integrated Bluetooth receiver and USB/SD card player.

Operation via mains connection or built-in lead gel battery 12 V/7.2 Ah (operating time: up to 6 hours), integrated automatic battery charging
For mobile applications, e.g. at sales events, lectures
Bluetooth receiver for the wireless connection of portable audio players
Adjustable USB/SD card player with connection for external storage media
2-way speaker system
1 adjustable balanced microphone input via XLR, 1 adjustable microphone input via 6.3 mm mono jack, 1 adjustable CD/Tape input via RCA
Adjustable master output with 3-way equalizer
Link connection (6.3 mm jack) for combining several TXA-15USB systems
Cabinet in flight case design, with folding handles
Due to the integrated extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
Stand sleeve

Specifications:

Output power: 20 W_MAX/15 W_RMS
Frequency range: 70-20,000 Hz
Carrier frequency: -
Operating range: -
Mic inputs: 6 mV
Line inputs: 600 mV
Link: 380 mV
Equalizer, bass: ±15 dB/100 Hz
Equalizer, midrange: ±15 dB/2.5 kHz
Equalizer, treble: ±15 dB/10 kHz
Power supply: 230 V /50 Hz/60 VA, rech. battery: 12 V/7.2 Ah
Admiss. ambient temp.: 0-40 °C
Dimensions: 410x470x310 mm
Weight: 17.2 kg

Price per unit (Order No. mo-173150) EUR 432,70 excl. VAT: € 363.61 / $ 425.43

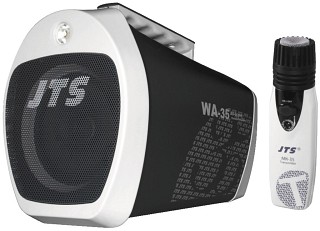

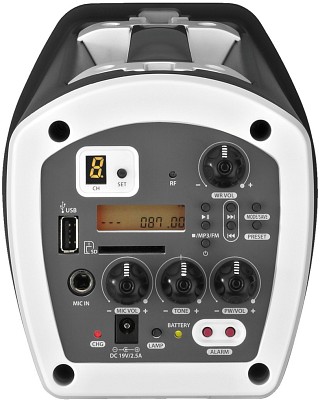

Portable MP3 FM amplifier system with wireless microphone WA-35

Portable MP3 FM amplifier system with wireless microphone. A powerful and most versatile unit for mobile applications in any weather condition! This compact and ultra-light class D power unit features a power capability of 25 W in battery operation (integrated 14.8 V rechargeable LiPo battery) and 35 W with a PSU. The WA-35 is ideally suited for outdoor applications due to a plashproof housing, stainless steel screws, impregnated full range speaker with dual cone and push-on silicone cover for the control unit. Further impressive features combined in a compact size:

MP3 reproduction via USB interface and SD card slot
FM radio with 20 station presets
Wireless 16-channel microphone system in the licence-free range 863-865 MHz (1 x 1.5 V battery, AA size)
Sound adjustment
Connection facility for a cable-connected microphone
Alarm siren: 2-tone and wailing sound
LED lamp with continuous light, automatic SOS light and flashing light
Charging status indication
Deep discharge protection
9 mm ( 3/8 ") stand sleeve
Integrated recessed carrying handle
Robust carrying strap with integrated microphone bag ...

... and all that at an overall weight of 1.75 kg only!

Price per unit (Order No. mo-172940) EUR 645,01 excl. VAT: € 542.03 / $ 634.17

Protective bag TXA-1000BAG

Protective bag, suitable for portable amplifier systems TXA-1000, TXA-1000CD and TXA-1002CD.

Robust synthetic fibre material, black
Sound-transparent front of meshed fabric
The bag can stay on during operation!
Opening for transport handle and trolley handle
2 lateral pockets, each with hook and loop fastener

Supplied without unit.

Price per unit (Order No. mo-172820) EUR 59,15 excl. VAT: € 49.71 / $ 58.16

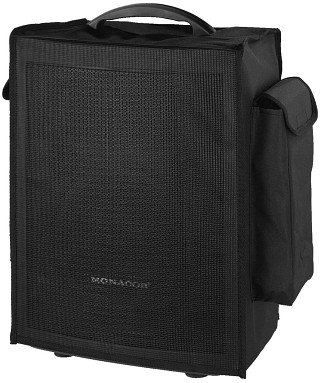

Protective bag TXA-800BAG

Protective bag, suitable for portable amplifier systems TXA-800, TXA-800CD and TXA-802CD.

Robust synthetic fibre material, black
Sound-transparent front of meshed fabric
The bag can stay on during operation!
Opening for transport handle
2 lateral pockets, each with hook and loop fastener

Supplied without unit.

Price per unit (Order No. mo-172340) - not available
