Voice alarm

Wall-mounted housing for 482 mm (19") units RACK-12W

Wall-mounted housing for 482 mm (19") units

Sheet steel version
Light grey powder coating (RAL 7035)
Lockable front door with safety glass
Door can alternatively be opened to the left or right
Maximum mounting depth behind the front plate: 370 mm
Supplied with earthing set and 16 sets of mounting screws

RACK-12W: 12 RS

RACK-6W: 6 RS

Specifications:

Max. load capacity at centr. weight concentration: 40 kg
Dimensions: 600x655x400 mm
Weight: 24 kg

Price per unit (Order No. mo-244520) EUR 387,30 excl. VAT: € 325.46 / $ 377.54

Wall-mounted housing for 482 mm (19") units RACK-6WP

Wall-mounted housing for 482 mm (19") units, with movable middle part of the housing.

Sheet steel version
Light grey powder coating (RAL 7035)
Lockable front door with safety glass
Door can alternatively be opened to the left or right
Maximum mounting depth behind the front plate: 470 mm
Supplied with earthing set and 16 sets of mounting screws

RACK-12WP: 12 RS

RACK-6WP: 6 RS

Specifications:

Max. load capacity at centr. weight concentration: 40 kg
Dimensions: 600x388x500 mm
Weight: 21 kg

Price per unit (Order No. mo-244550) EUR 404,20 excl. VAT: € 339.66 / $ 394.01

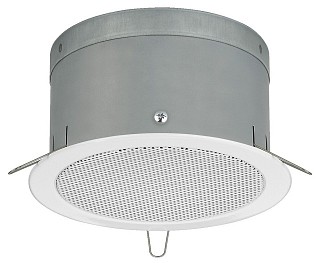

PA ceiling speaker EDL-165C/WS

PA ceiling speaker, with EN 54-24 certification.

100 V line technique
Full range speaker with a high efficiency
Metal housing
Fire protection cover
Quick mounting facility
3 power taps via push terminals

Specifications:

Frequency range: 80-19,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
Power capability, 4 Ω: -
SPL (1 W/m): 93 dB
Max. rated SPL: 101 dB
Type of speaker: 130
Mounting cutout: Ø 150 mm
Mounting depth: 90 mm
Admiss. ambient temp.: -10 °C to +55 °C
Dimensions: Ø 170 mm x 95 mm
Weight: 1 kg
Other features: -

Price per unit (Order No. mo-160090) EUR 70,66 excl. VAT: € 59.38 / $ 68.88

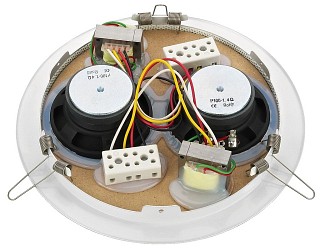

PA A/B ceiling speaker EDL-224ABC

PA A/B ceiling speaker, with EN 54-24 certification. For systems with A/B speaker distribution according to EN 60849. Thus, ideally suited for smaller PA applications due to the cost-effective reduction of the required ceiling cutouts.

100 V line technique
2 separate speaker systems
Full range speaker with a very high efficiency and high maximum volume level
Metal housing
Fire protection cover
Quick mounting facility
3 power taps via push terminals

Specifications:

Frequency range: 75-20,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 2 x 6/2 x 3/2 x 1.5 W_RMS
Power capability, 8 Ω: -
Power capability, 4 Ω: -
SPL (1 W/m): 92 dB
Max. rated SPL: 100 dB
Type of speaker: 2 x 100
Mounting cutout: Ø 230 mm
Mounting depth: 110 mm
Admiss. ambient temp.: -10 °C to +55 °C
Dimensions: Ø 252 mm x 115 mm
Weight: 1.7 kg
Other features: -

Price per unit (Order No. mo-160100) EUR 118,60 excl. VAT: € 99.66 / $ 115.61

Weatherproof horn speaker IT-15EN

Weatherproof horn speaker, with EN 54-24 certification.

100 V line technique
IP66 tested
Light grey ABS housing (self-extinguishing, complies with the standard UL 94V-0)
Cable inlet via high-strength cable gland
Suitable for general indoor and outdoor applications
Integrated high-pass filter for optimising the sound and stability
Supplied with mounting bracket

Specifications:

Power rating: 15/7.5/3.75 W_RMS
Frequency range: 350-10,000 Hz
SPL (1 W/1 m): 110 dB
Radiation angle (hor./vert.): 110°/55°
Admiss. ambient temp.: -25 °C to +70 °C
Dimensions: 180x120x230 mm
Weight: 2.2 kg
Special feature: IP66, self-extinguishing ABS
Replacement voice coil: -

Price per unit (Order No. mo-160230) EUR 118,60 excl. VAT: € 99.66 / $ 115.61

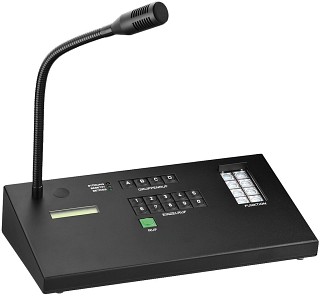

System microphone station EVA-16TER

System microphone station, according to DIN EN 60849 (VDE 0828) for announcements in up to 80 speaker circuits, to be selected as desired.

Microprocessor-controlled system microphone station, especially for the connection to controller EVA-16MEN with EN 54-16 certification
For announcements in up to 80 speaker circuits, to be selected as desired
Built-in two-line LCD for indicating the respective operating status
Separate emergency button
Individual programming of single, group, collective and emergency announcements with the respective priority level
Concealed buttons for safety-related system functions
Connection via RJ45 jack
Dimensions: 350x75x210 mm
Weight: 3.15 kg

Price per unit (Order No. mo-230020) - not available

Hand-held PA microphone MEVAC-1FH

Hand-held PA microphone, for emergency announcements according to EN 60849.

For connecting to evacuation controller MEVAC-4
Monitored microphone cartridge and request line
Push-to-talk button
Red plastic housing (fireman's microphone) with dynamic microphone cartridge and steel clip
1 m helix connection cable with 5-pole DIN plug

Price per unit (Order No. mo-235580) - not available

PA desktop microphone (push-to-talk) MEVAC-1PTT

PA desktop microphone (push-to-talk), for connecting to evacuation controller MEVAC-4.

Programmable push-button for all-call function or individual zone
Ready to call indication via LED
Gooseneck with dynamic microphone cartridge
1.8 m connection cable with 9-pole D-sub plug

Price per unit (Order No. mo-235570) - not available

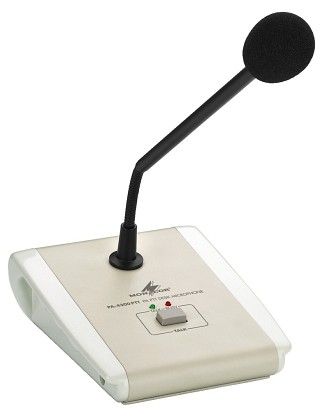

PA desktop microphone (push-to-talk) PA-4300PTT

PA desktop microphone (push-to-talk), for connecting to PA-1120 or PA-1240.

Automatic chime via microphone announcement button (talk)
Chime can additionally be switched on or off
LED indication for talk and busy
Power supply via connected amplifier
RJ45 jack for connecting additional PA-4300PTT with slave/priority switch

Three PA-4300PTT can be connected to each amplifier

Price per unit (Order No. mo-230980) EUR 226,10 excl. VAT: € 190.00 / $ 220.40

Audio management controller (slave) EVA-16SEN

Audio management controller (slave), with EN 54-16 certification for voice alarm systems (VAS) according to DIN EN 60849 (VDE 0828) and DIN VDE 0833-4. As an extension of the controller EVA-16MEN, the EVA-16SEN is used for managing and monitoring microphone announcements, emergency announcements and stored evacuation announcements, any required music feeds and for a reliable reproduction of chimes and sirens. Furthermore, the EVA-16SEN is also monitoring power amplifiers connected as well as a possible emergency power supply. Connected speaker lines are also monitored for interruption, impedance deviations as well as for short-circuit and fault to earth. To be used as a slave unit for EVA-16MEN for more complex projects, can be cascaded to up to 10 systems.

Monitoring of the amplifiers with emergency switching (8 amplifiers and 1 spare amplifier)
Monitoring of up to 8 speaker lines in A/B cabling (16 testing circuits)
2 x fireman's microphone can be connected (MEVAC-1FT) at the rear panel or a hand-held microphone (MEVAC-1FH) directly at the front panel
Up to 8 monitored system microphone stations EVA-16TER can be connected
4 audio inputs with free assignment/distribution of the audio input signals
2 additional audio inputs (AUX)
4 transformer-balanced AF outputs + 1 output for emergency amplifier with free assignment of the different music sources
Digital voice memory for alarm announcements
Tone control and volume control for each amplifier channel
Easy programming via push-buttons and two-line display
Extensive inputs and outputs for controlling and signalling
RS-232 interface for programming or updating via a PC
482 mm (19") rack installation
Power supply: 230 V /50 Hz/25 VA or 24 V DC current /600 mA
Dimensions: 483x88x248 mm (19", 2 RS)
Weight: 6 kg
Mains operation and 24 V emergency power operation

Price per unit (Order No. mo-174220) - not available

Evacuation controller MEVAC-4

Evacuation controller, with EN 54-16 certification for voice alarm systems (VAS) according to DIN EN 60849 (VDE 0828) and DIN VDE 0833-4. As a central controller, the MEVAC-4 can carry out numerous functions:

Monitoring of the speaker lines
Monitoring of the amplifiers with emergency switching (for 4 amplifiers and 1 spare amplifier)
Digital voice storage for alarm announcements
Monitoring of the fireman's microphones
Distributor for audio input signals like microphone and background music
4 independently addressable announcement circuits in A/B wiring
Fault signalling via relay contacts

Additional features:

Connection for any number of emergency announcement microphones (1-channel or 4-channel)
Extensive inputs and outputs for monitoring and signalling
Modern DSP technology, updatable
Easy programming via push-buttons and built-in display
Input for background music
Aux input to be activated via external contact
Tone control and volume control for each amplifier channel
Background music is turned off automatically during 24 V operation
Bass attenuation in case of an alarm
RS-232 connection for programming and updating
Power supply: 230 V /50 Hz/20 VA or 24 V DC current /500 mA
Dimensions: 482x44x315 mm (1 RS)
Weight: 5 kg
Mains operation and 24 V emergency power operation

Price per unit (Order No. mo-172670) - not available

24 V emergency PSU PA-24ESP

24 V emergency PSU, for our PA components with 24 V connection.

Possible to install 2 x rechargeable lead battery NPA-12/24
Screw connection for external 24 V rechargeable batteries
Maximum charging current: 2.5 A
Electronic charging control with overload protection, protection against total discharge and trickle charge
1 x output 24 V DC current /1 A (unswitched)
2 x output 24 V DC current /32 A
3 x output 24 V DC current /16 A
Power supply: 230V /50Hz/110 VA
Dimensions: 482x135x405 mm
Weight: 11.7 kg

Price per unit (Order No. mo-243120) EUR 730,80 excl. VAT: € 614.12 / $ 712.38

PA power amplifier SINUS-10

PA power amplifier, for the application in professional PA systems and for setting up standardised voice alarm systems (VAS) according to EN 54-16 in combination with the audio management system EVA-16 from MONACOR.

Temperature-controlled fan
LED indication for protect and signal
Mains switch at the rear panel for preventing accidental switch-off
24 V emergency power input
Mains operation or 24 V emergency power operation
482 mm (19") rack installation with fitted mounting brackets

SINUS-220 = 2 x 240 WRMS

SINUS-20 = 1 x 240 WRMS

SINUS-10 = 1 x 120 WRMS

Specifications:

Output power: 1 x 120 W_RMS
Input sensitivity: 1 V/10 kΩ, bal.
Output impedance: -
Frequency range: 35-18,000 Hz, -3 dB
S/N ratio:>86 dB
THD:<1 %
High-pass filter: -
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/320 W, 24 V DC current /7.5 A
Dimensions: 425x88x305 mm, 2 RS
Weight: 8.5 kg
Connections:
Signal input: XLR / screw terminals
Speaker output: screw terminals
Other features:

Price per unit (Order No. mo-174230) EUR 753,70 excl. VAT: € 633.36 / $ 734.70

PA power amplifier SINUS-220

Temperature-controlled fan
LED indication for protect and signal
Mains switch at the rear panel for preventing accidental switch-off
24 V emergency power input
Mains operation or 24 V emergency power operation
482 mm (19") rack installation with fitted mounting brackets

SINUS-220 = 2 x 240 WRMS

SINUS-20 = 1 x 240 WRMS

SINUS-10 = 1 x 120 WRMS

Specifications:

Output power: 2 x 240 W_RMS
Input sensitivity: 1 V/10 kΩ, bal.
Output impedance: -
Frequency range: 35-18,000 Hz, -3 dB
S/N ratio:>86 dB
THD:<1 %
High-pass filter: -
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/1,280 W, 24 V DC current /30 A
Dimensions: 425x88x450 mm, 2 RS
Weight: 18 kg
Connections:
Signal input: XLR / screw terminals
Speaker output: screw terminals
Other features:

Price per unit (Order No. mo-174370) EUR 1534,50 excl. VAT: € 1289.50 / $ 1495.82

Rechargeable lead battery, 12 V AKKU-12/120

Rechargeable lead battery, 12 V, for charging controller EVA-24/54.

Power rating: 12 V/120 Ah
Gas-tight sealed, maintenance-free
Dimensions: 32.5x17x22 cm
Weight: 32 kg
2 rechargeable batteries AKKU-12/120 are required for an operation with EVA-24/54

Price per unit (Order No. mo-174180) EUR 690,10 excl. VAT: € 579.92 / $ 672.70

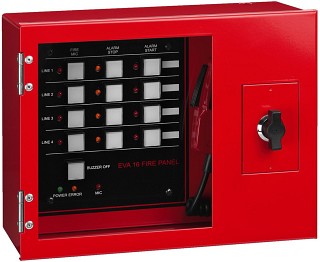

PA fireman's microphone EVA-16FP

PA fireman's microphone, for the audio management system EVA-16... This fireman's microphone station has especially been developed according to the standards DIN EN 60849 (VDE 0828), EN 54-16 or DIN 14661. Thus, it allows emergency services to organise a safe and systematic evacuation of the people in case of an alarm.

Supplied with hand-held PA microphone MEVAC-1FH
4 alarm zones
4 fireman's microphone stations
Robust red sheet steel wall-mounted housing
Relay fire alarm control panel (FACP): 24 V/2 kΩ
Relay contact ERROR: 120 V /2 A max.
Power supply: 18-30 V DC current /60 mA
Dimensions: 305x235x140 mm
Weight: 4.5 kg

Price per unit (Order No. mo-170210) - not available

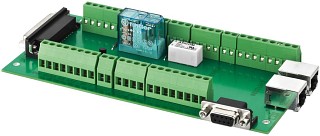

Connection PCB according to EN 54-16 EVA-16IO

Connection PCB according to EN 54-16, for connecting the system microphone station EVA-16TER, for example, to the audio management system EVA-16MEN/SEN. The PCB is to be connected to the EVA-16 system via a 25-pole D-sub cable and a Cat. cable, both available at option. Additionally, it features a changeover contact which is activated in case a fault occurs. A further relay is activated in case of an emergency and during installation. It is also used to connect emergency priority relays of L-pad attenuators.

Price per unit (Order No. mo-174210) EUR 139,00 excl. VAT: € 116.81 / $ 135.50

Certified charging controller for evacuation systems EVA-24/54

Certified charging controller for evacuation systems, for setting up a standardised emergency power supply according to EN 54-4.

Suitable for PA components with 24 V connection
Output voltage: 24 V DC current
Output current: 6 x 40 A max., 3 x 5 A max., total output: 960 W max.
Maximum charging current: 12 A
Constant monitoring of all primary and secondary input voltages
Permanent monitoring of the fuses
Monitoring of the battery charging current
Indication for discharge status of the rechargeable batteries
LED indication for every relevant operating status
Floating contacts for retransmission of errors
Admissible battery capacities: 65 Ah to 225 Ah (2 x 12 V DC current each)
Cable set EVA-24CON for connecting 2 x AKKU-12/120 is available at option
Power supply: 230 V /50 Hz/390 VA
Dimensions: 325x170x220 mm
Weight: 5.1 kg

Matching rechargeable lead batteries AKKU-12/120 (2x) are available at option.

Price per unit (Order No. mo-174190) - not available

Cable set EVA-24CON

Cable set, for connecting 2 rechargeable lead batteries AKKU-12/120 to the charging controller EVA-24/54.

Price per unit (Order No. mo-174200) EUR 95,90 excl. VAT: € 80.59 / $ 93.48

Connection box MEVAC-1CON

Connection box, for hand-held PA microphone MEVAC-1FH or PA desktop microphone MEVAC-1FT.

5-pole DIN jack
Flush mounting into standard 60 mm wall sockets
Surface mounting with supplied surface-mounted housing
Dimensions: 80x80x37 mm

Price per unit (Order No. mo-172750) EUR 104,61 excl. VAT: € 87.91 / $ 101.97

2-channel anti-feedback controller PA-24FR

2-channel anti-feedback controller

Efficient protection against acoustic feedback due to frequency shift method
Selectable frequency shift 3-15 Hz, adjustable in 13 steps via DIP switches
Integrated noise gate (mute when input level is too low)
Bypass function
LED indication for operation, input signals and activated frequency shift function
XLR connections and screw connections for line inputs and outputs

Specifications:

Inputs: 0.775 V, 60 kΩ, bal.
Outputs: 0.775 V, 50 Ω, bal.
Frequency range: 20-20,000 Hz
S/N ratio:>70 dB
THD:<0.05 %
Power supply: 230 V /50 Hz/10 VA
Dimensions: 482x44x230 mm, 1 RS
Weight: 2.4 kg

Price per unit (Order No. mo-172580) - not available

PA unit rack for 482 mm (19") units, 42 RS RACK-625/42

Voice alarm, PA unit rack for 482 mm (19 — Enlarge

PA unit rack for 482 mm (19") units, 42 RS

For the installation of voice alarm systems according to EN 54-16
Bars adjustable in height in steps of 25 mm for using quick-mount cage nuts
Flange plate, rear side flange opening in the integrated base with connection jacks for wall distribution
Ventilation slots in the upper part
Earthing bolt in each individual part of the case
Earthing accessories
Rear-ventilated sheet steel door (rear side of the rack) with cylinder lock
Colour of body: black, height-adjustable bars: red
Dimensions: 2,066x600x600 mm
Weight: 105 kg

Supplied without units.

Specifications:

Max. load capacity at centr. weight concentration: 400 kg
Dimensions: 2,066x600x600 mm
Weight: 105 kg

Price per unit (Order No. mo-170160) EUR 2327,10 excl. VAT: € 1955.55 / $ 2268.43
