Recorder and Receiver

CD and MP3 player CD-112

CD and MP3 player, with USB interface and SD/MMC card slot.

USB storage media can be connected directly
For SD/MMC cards up to 32 GB (FAT16/FAT32), available at option
Anti-shock system
Supports ID3 tags
Folder navigation
Autoplay function
Fast forward and reverse
Track programming
Repeat function (repeat 1, repeat all, random repeat)
Random play

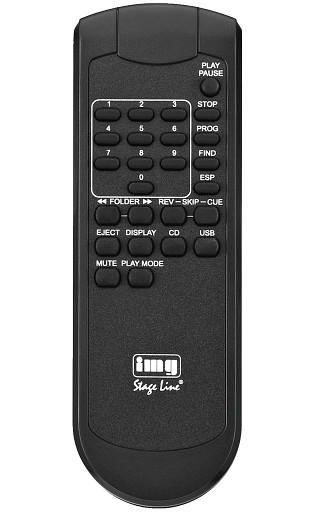

Supplied with infrared remote control
482 mm (19") rack installation with supplied mounting brackets, 1 RS
Audio CD/CD-R/CD-RW/MP3 CD

Also suitable for hi-fi and PA applications.

tastenwelt 05/2011

"Twice as good! With the new CD/MP3 players CD-112 and CD-112TRS from IMG Stage Line, a musician can meet every requirement."

Specifications:

General information:
Frequency range: 20-20,000 Hz
THD:<0.1 %
Channel separation:>60 dB
Dynamic range:>96 dB
S/N ratio:>70 dB
Output, analogue: 1.2 V
Output, digital: -
Power supply: 230 V /50 Hz/50 VA
Admiss. ambient temp.: 0-40 °C
Dim., player mech.: 482x44x265 mm, 1 RS
Dim., control panel: -
Weight: 4 kg
Connections:
Analogue output: 1 x RCA L/R
Digital output: -
Fader start: -
Control connection: -

Price per unit (Order No. mo-212800) - not available

CD and MP3 player with FM RDS tuner CD-112RDS/BT

CD and MP3 player with FM RDS tuner and Bluetooth receiver.

Bluetooth receiver for the wireless connection of laptops, smartphones or tablet PCs
FM RDS tuner with 30 station presets
USB storage media can be connected directly
For SD/MMC cards up to 32 GB (FAT16/FAT32), available at option
Anti-shock system
Supports ID3 tags
Folder navigation
Autoplay function
Fast forward and reverse
Track programming
Repeat function (repeat 1, repeat all, repeat folder)
Random play
RS-232 interface for remote control
Supplied with infrared remote control and antenna
482 mm (19") rack installation with supplied mounting brackets, 1 RS
Audio CD/CD-R/CD-RW/MP3 CD

proaudio.de 12/2013

"It features an almost intuitive operation and is provided with an excellent multilingual instruction manual (also in German) containing most detailed information. The complete operating system is practice-orientated. It delivers a high-quality sound and also meets professional requirements which is important, e.g. for high-quality reproductions in theatres. The CD-112RDS/BT is available at a very reasonable price and provides a great variety of reproduction facilities. Thus, it will certainly be interesting for a wide range of users and makes it suitable, e.g. for PA applications in halls and conference centres, multimedia applications, the use in theatres, etc."

Also suitable for PA applications.

Specifications:

General information:
Frequency range: 20-20,000 Hz
THD:<0.1 %
Channel separation:>60 dB
Dynamic range:>96 dB
S/N ratio:>70 dB
Output, analogue: 1.2 V
Output, digital: -
Power supply: 230 V /50 Hz/50 VA
Admiss. ambient temp.: 0-40 °C
Dim., player mech.: 482x44x265 mm, 1 RS
Dim., control panel: -
Weight: 4.1 kg
Connections:
Analogue output: 1 x XLR L/R, bal. (CD) 1 x XLR L/R, bal. (priority) 1 x RCA L/R (Bluetooth) 1 x RCA L/R (tuner)
Digital output: -
Fader start: -
Control connection: -

Price per unit (Order No. mo-212950) EUR 691,53 excl. VAT: € 581.12 / $ 674.10

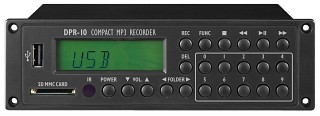

Compact MP3 recorder DPR-10

Compact MP3 recorder, with USB interface and SD/MMC card slot.

USB storage media can be connected directly (e.g. USB flash drive)
For SD/MMC cards up to 8 GB (FAT16/FAT32), available at option
Recording from USB medium, SD/MMC card or external source (aux) onto USB medium or SD/MMC card
Selectable recording bit rate: 96/128/192 kbps
Supports MP3
Supports ID3 tags
Fast forward and reverse
Track programming
Folder navigation
Repeat function (repeat 1, repeat all, repeat album)
Random play
Intro play

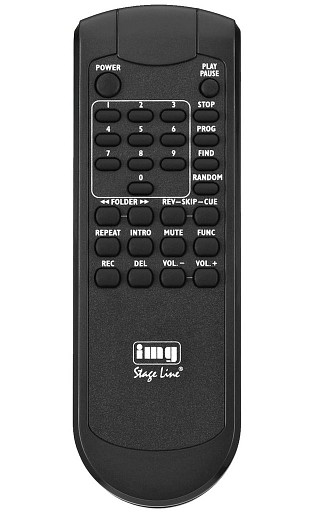

Supplied with infrared remote control
12 V power supply via plug-in PSU, available at option

Also suitable for hi-fi and PA applications.

Specifications:

General information:
Frequency range: 20-20,000 Hz
THD:<0.3 %
Channel separation:>60 dB
Dynamic range:>96 dB
S/N ratio:>60 dB
Output, analogue: 1.2 V
Output, digital: -
Power supply: via optional PSU, e.g. PSS-600E
Admiss. ambient temp.: 0-40 °C
Dim., player mech.: 175x52x110 mm
Dim., control panel: -
Weight: 545 g
Connections: 1 x RCA L/R (aux input)
Analogue output: 1 x RCA L/R
Digital output: -
Fader start: -
Control connection: -

Price per unit (Order No. mo-172740) - not available

RDS tuner/CD player insertion with USB interface PA-1140RCD

RDS tuner/CD player insertion with USB interface, for the PA mixing amplifiers with insertion compartment at the front.

USB flash drive can be connected directly

FM/AM tuner section:

RDS function for FM
24 station presets (18 x FM, 6 x AM)
Digital display
Station scanning

CD player section:

Anti-shock system
Slot-in mechanism
Random play, scan and repeat functions
Display of track/time
Shock-proof due to oil shock absorber
Audio CD/CD-R/CD-RW/MP3 CD

Price per unit (Order No. mo-173530) EUR 574,30 excl. VAT: € 482.61 / $ 559.82

CD player module M-32CD

CD player module, with anti-shock system and MP3 reproduction.

Slot-in mechanism
USB port for external storage media
Random play, repeat function
Track programming
Supplied with remote control
Power supply: 12 V DC current /800 mA
Dimensions: 174x52x160 mm
Mounting cutout: 155x50x150 mm
Audio CD/CD-R/CD-RW/MP3 CD

Price per unit (Order No. mo-173350) EUR 300,50 excl. VAT: € 252.52 / $ 292.92
