Studio microphones / Instrument microphones

Miniature electret instrument microphone CX-500

Miniature electret instrument microphone

That's what strings and many other acoustic instrumentalists have long been waiting for! The CX-500 allows perfect miking up of the instrument without the irritating setup of a stand. A pure and powerful sound which perfectly reproduces the natural sound characteristics of the instrument across a wide dynamic range and evokes the enjoyment of playing music or listening to it. The numerous possibilities of attaching the microphone allow for a precise positioning of the microphone in order to achieve a perfect alignment and prevent the instrument from damage. The innovative tailpiece which is positioned behind the bridge is a special highlight and can be used both standing or in a suspended way. The material characteristics effectively suppress undesired structure-borne sound and allow for maximum mobility. A 10 dB attenuator as well as two switchable low cut filters in the phantom power supply adapter allow to perfectly adjust the level and sound before being processed in the mixer. Impedance conversion and electronic balancing allow for long supply lines without sound deterioration. The power supply adapter features a belt clip with strain relief and can be attached to the body if required. A wireless operation is possible with respective wireless transmitter systems from JTS.

Supplied with 48 V phantom power supply adapter, 2 tailpieces, 5 body clips, 4 windshields, 26 self-adhesive pads.

Supplied in a robust plastic case.

Specifications:

System: electret/omnidirectional
Frequency range: 20-20,000 Hz
Impedance: 1.5 kΩ
Sensitivity: 6.3 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 48 V DC current phantom
Connection, microphone: -
Connection, cable: 4-pole mini XLR adapter: XLR, bal.
Housing: plastic
Weight: 15 g

Price per unit (Order No. mo-235850) EUR 108,80 excl. VAT: € 91.43 / $ 106.06

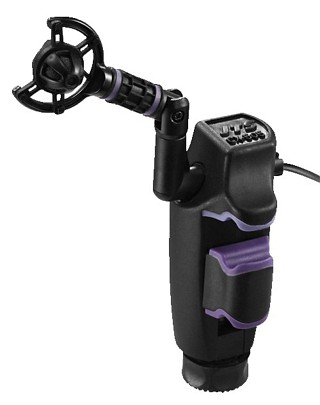

Electret instrument microphone CX-505

Electret instrument microphone

A state-of-the-art microphone ensuring great mobility and flexibility for drummers and percussionists. It provides an impressively brilliant sound which is always accentuated and powerful even at great dynamic gaps. The innovative and adjustable clamp which is to be attached to the rim of drums always ensures a secure fit even at cymbal stands due to its rubber jaws. A miniature gooseneck which can be turned by 230° allows perfect fine tuning for an optimised sound. Effective suppression of structure-borne noise. Supplied in a robust transport case.

DrumHeads 2006

"Cool! The special clamp of the filigreed CX-505 allows for an easy attachment to any clamping ring. Surprisingly, even the fine buzzing of the snare wires can be heard as brilliant as crisp attacks."

Specifications:

System: electret/cardioid
Frequency range: 50-18,000 Hz
Impedance: 220 Ω ±30 %
Sensitivity: 5.6 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 48 V DC current phantom power
Connection, microphone: -
Connection, cable: XLR, bal.
Housing: plastic
Weight: 200 g

Price per unit (Order No. mo-234590) EUR 118,50 excl. VAT: € 99.58 / $ 115.51

Electret instrument microphone CX-508

Electret instrument microphone

This is what anyone playing a wind instrument has long been waiting for! With the CX-508, a microphone has been created covering a wide dynamic range in superior style. The crystal-clear and crisp sound meets every requirement, one is simply longing for more. The microphone can securely be attached to the instrument by means of the integrated spring-type clamp to attach to a horn without damaging the surface. The robust gooseneck can be turned by 230°, its flexibility allows for almost any position. The design of low structure-borne noise with a low susceptibility to wind noise ensures genuine pleasure of playing music. Supplied in a robust transport case with windshield.

This item is also available as wireless version CX-508W.

Specifications:

System: electret/cardioid
Frequency range: 50-18,000 Hz
Impedance: 220 Ω ±30 %
Sensitivity: 5 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 48 V DC current phantom power
Connection, microphone: -
Connection, cable: XLR, bal.
Housing: plastic
Weight: 170 g

Price per unit (Order No. mo-234610) EUR 114,40 excl. VAT: € 96.13 / $ 111.52

Electret instrument microphone CX-508W

Electret instrument microphone

Everyone who is playing a wind instrument has been waiting for this for a long time! With the CX-508W, a microphone has been created which covers a wide dynamic range in superior style. The crystal-clear and crisp sound meets all requirements, one is simply longing for more. The microphone can securely be attached to the instrument by means of the integrated spring-type clamp to attach to a horn without damaging the surface. The robust gooseneck can be turned by 230°, its flexibility allows for almost any position. The design of low structure-borne noise with a low susceptibility to wind noise ensures genuine pleasure of playing music. Supplied with robust transport case and windshield.

This item is also available as cable-connected version CX-508.

Specifications:

System: electret/cardioid
Frequency range: 50-18,000 Hz
Impedance: 220 Ω ±30 %
Sensitivity: 4.5 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: pocket transmitter from JTS
Connection, microphone: -
Connection, cable: cable with 4-pole mini XLR
Housing: plastic
Weight: 170 g

Price per unit (Order No. mo-234620) EUR 123,40 excl. VAT: € 103.70 / $ 120.29

Electret instrument microphone CX-516

Electret instrument microphone

A microphone with a special quick-acting holder for the sound pick-up of accordions, pianos or wind instruments. The well-balanced frequency response guarantees a genuine and brilliant sound which makes playing music a real pleasure. Due to the gooseneck, the cartridge which isolates the structure-borne noise can be aligned in a very flexible way. Supplied in a robust transport case with windshield.

This item is also available as wireless version CX-516W.

Specifications:

System: electret/supercardioid
Frequency range: 20-20,000 Hz
Impedance: 220 Ω ±30 %
Sensitivity: 5.6 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 48 V DC current phantom power
Connection, microphone: -
Connection, cable: XLR, bal.
Housing: plastic
Weight: 55 g

Price per unit (Order No. mo-234640) EUR 117,70 excl. VAT: € 98.91 / $ 114.73

Electret instrument microphone CX-516W

Electret instrument microphone

A microphone with a special quick-acting holder for the sound pick-up of accordions, pianos or wind instruments. The well-balanced frequency response guarantees a genuine and brilliant sound which makes playing music a real pleasure. Due to the gooseneck, the cartridge which isolates the structure-borne noise allows a very flexible alignment. Supplied in a robust transport case with windshield.

This item is also available as cable-connected version CX-516.

Both of the instrument microphones (CX-516W and CX-508W) are perfectly suitable for the connection to the pocket transmitters of the UHF PLL systems from JTS.

Specifications:

System: electret/supercardioid
Frequency range: 20-20,000 Hz
Impedance: 220 Ω ±30 %
Sensitivity: 4.5 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: pocket transmitter from JTS
Connection, microphone: -
Connection, cable: cable with 4-pole mini XLR
Housing: plastic
Weight: 55 g

Price per unit (Order No. mo-234630) EUR 126,70 excl. VAT: € 106.47 / $ 123.51

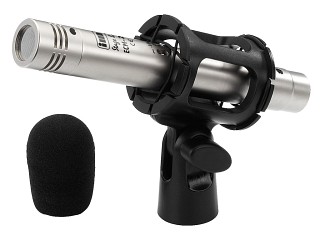

Professional condenser microphone ECM-270

Professional condenser microphone, for studio applications and live performances. Ideally suited for the direct or overhead sound pick-up of acoustic instruments and vocals.

Back electret cardridge of cardioid characteristic
Low cut switch
10 dB attentuation, switchable
Electronically balanced output
Robust brass body of high quality
Supplied accessories: robust hard-sided case, microphone windshield, microphone support (spider) for 16 mm ( 5/8 ") stand

Specifications:

System: back electret/cardioid
Frequency range: 50-18,000 Hz
Impedance: 200 Ω
Sensitivity: 5.6 mV/Pa/1 kHz
Max. SPL: 135 dB
Power supply: 48 V DC current (phantom)
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 20 mm x 150 mm
Weight: 140 g
Connection: XLR, bal.

Price per unit (Order No. mo-235140) EUR 90,45 excl. VAT: € 76.01 / $ 88.17

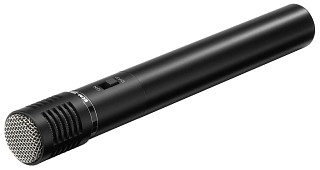

Electret microphone for the sound pick-up of vocals and instruments ECM-285

Electret microphone for the sound pick-up of vocals and instruments

Special shock-absorbing cartridge support
Operation via external phantom power (9-48 V DC current ) or internal 1.5 V battery
ON/OFF switch
Supplied with 6 m connection cable XLR/XLR and support with screw fixing 16 mm ( 5/8 ")/9 mm ( 3/8 ")

Specifications:

System: electret/cardioid
Frequency range: 80-15,000 Hz
Impedance: 400 Ω
Sensitivity: 5mV/Pa/1kHz
Max. SPL: 115 dB
Power supply: 1 x 1.5 V batt. AA size or 9-48 V DC current (phantom)
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 26 mm x 195 mm
Weight: 110 g
Connection: XLR, bal., cable: 6 m

Price per unit (Order No. mo-232760) EUR 77,10 excl. VAT: € 64.79 / $ 75.16

Overhead electret microphone NX-9

Overhead electret microphone

The NX-9 sets standards as a high-quality multi-purpose unit in overhead microphone applications. This microphone is suitable for various applications: sound pick-up of hi-hats/cymbals/percussion instruments, microphone applications with acoustic instruments, e.g. guitars, violins, pianos or wind instruments. The NX-9 convinces with a well-balanced and natural sound at the sound pick-up of choirs. The microphone can either be operated via +48 V phantom power or via 1.5 V battery AA size. This microphone of the NX series can also be recommended without reservation for on-the-road applications. Supplied with microphone holder and padded bag.

Specifications:

System: electret/cardioid
Frequency range: 60-18,000 Hz
Impedance: 400 Ω ±30 %
Sensitivity: 3.2 mV/Pa/1 kHz
Max. SPL: 145 dB
Power supply: 48 V DC current phantom power or 1 x batt. AA size
Connection, microphone: XLR, bal.
Connection, cable: -
Housing: diecast metal
Weight: 230 g

Price per unit (Order No. mo-234750) EUR 99,84 excl. VAT: € 83.90 / $ 97.32

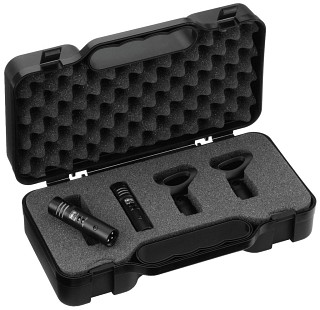

Electret microphone set ECM-250

Electret microphone set, consisting of two overhead electret microphones.

Optimised for the sound pick-up of drum combinations and percussion instruments
Short design
Low cut switch, 10 dB attenuator switch
48 V phantom power
Including microphone holder with 16 mm ( 5/8 ") stand thread and 9 mm ( 3/8 ") adapter screw
Supplied in a practical plastic case

Specifications:

System: electret/cardioid
Frequency range: 50-16,000 Hz
Impedance: 200 Ω
Sensitivity: 18/5.6 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 48 V DC current , phantom
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 19 mm x 80 mm
Weight: 25 g
Connection: XLR, quasi-balanced

Price per unit (Order No. mo-233480) EUR 77,89 excl. VAT: € 65.45 / $ 75.93

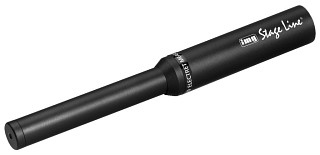

Universal electret microphone ECM-40

Universal electret microphone, with linear frequency response.

For measuring systems and audio recordings
Supplied with frequency graph

Specifications:

System: electret/omnidirectional
Frequency range: 30-18,000 Hz
Impedance: 500 Ω
Sensitivity: 5.6 mV/Pa/1 kHz
Max. SPL: 120 dB
S/N ratio:>60 dB
Power supply: 12-48 V DC current , ext. (phantom)
Body: metal
Dimensions: Ø 13/19 mm x 158 mm
Weight: 50 g
Connection, microphone: XLR, bal.
Connection, cable: XLR, bal.
Cable: 6 m

Price per unit (Order No. mo-232230) EUR 80,39 excl. VAT: € 67.55 / $ 78.36

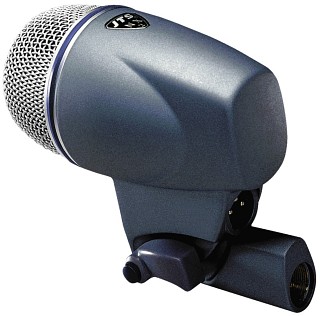

Dynamic instrument microphone NX-2

Dynamic instrument microphone

This microphone with integrated stand holder is the solution for any problem in low-frequency microphone applications. The NX-2 is suitable for every application, whether the sound pick-up of bass drums, kick drums or as a support for the bass amplifiers. Of course, it is also suitable for the sound pick-up of various other bass instruments where the sound mainly consists of low bass frequencies. Structure-borne noise or impact noise are suppressed effectively. This microphone is also equipped with the excellent mechanical features known from the NX series and is thus suitable for severe conditions on stage. Supplied with padded bag.

Specifications:

System: dynamic/supercardioid
Frequency range: 20-12,000 Hz
Impedance: 600 Ω
Sensitivity: 0.6 mV/Pa/1 kHz
Max. SPL: 172 dB
Power supply: -
Connection, microphone: XLR, bal.
Connection, cable: -
Housing: diecast metal
Weight: 815 g

Price per unit (Order No. mo-234820) EUR 109,60 excl. VAT: € 92.10 / $ 106.84

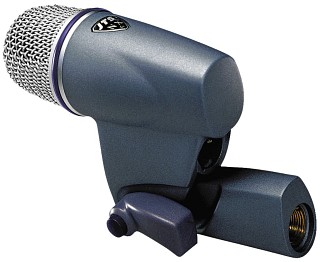

Dynamic instrument microphone NX-6

Dynamic instrument microphone

The NX-6 is the multi-purpose unit for applications on stage or in the studio. Its main range of applications include the sound pick-up of drums or percussion instruments, e.g. snare drums, tom-toms, congas or bongos. It can also be used as a microphone with wind instruments, at a guitar amplifier or forthe sound pick-up of acoustic instruments, providing a transparent and very powerful sound. The integrated stand holder with continuously adjusting facilities allows flexible positioning and provides a secure fit at the same time. The suppression of structure-borne noise and high-quality workmanship of the mechanical features go without saying. Supplied with padded bag.

Specifications:

System: dynamic/cardioid
Frequency range: 60-16,000 Hz
Impedance: 600 Ω
Sensitivity: 2.5 mV/Pa/1 kHz
Max. SPL: 158 dB
Power supply: -
Connection, microphone: XLR, bal.
Connection, cable: -
Housing: diecast metal
Weight: 610 g

Price per unit (Order No. mo-234810) EUR 100,60 excl. VAT: € 84.54 / $ 98.06

Universal dynamic microphone PDM-57

Universal dynamic microphone

The PDM-57 is an ideal microphone for the general sound pick-up of instruments and for live PA applications. This multi-purpose microphone is suitable for almost any kind of application, e.g. guitar or bass amplifiers, woodwind or brass instruments, harmonicas, drums or percussion instruments. Maintains natural sound characteristics but nevertheless creates a characteristic sound which can easily be recognised. Supplied with connection cable.

Specifications:

System: dynamic/cardioid
Frequency range: 50-16,500 Hz
Impedance: 600 Ω
Sensitivity: 1.8 mV/Pa/1 kHz
Max. SPL: 145 dB
Power supply: -
Connection, microphone: XLR, bal.
Connection, cable: XLR, bal., XLR, bal.
Housing: diecast metal
Weight: 250 g

Price per unit (Order No. mo-234860) EUR 66,38 excl. VAT: € 55.78 / $ 64.71

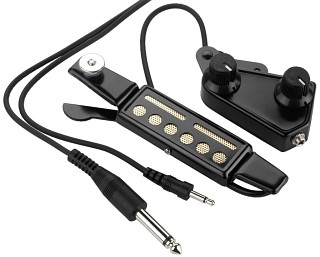

Guitar pick-up GM-100

Guitar pick-up, for clamping into the round sound holes of guitars, with volume control and sound control, 300 cm cable for the connection to an amplifier.

Price per unit (Order No. mo-240080) EUR 25,90 excl. VAT: € 21.76 / $ 25.25

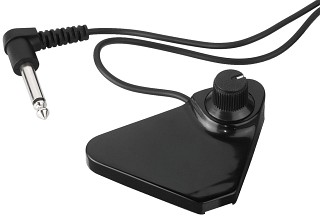

Guitar pick-up GM-80

Guitar pick-up, with volume control and push-on clamp, 3 m connection cable and 6.3 mm righ-angle plug.

Price per unit (Order No. mo-240090) EUR 18,25 excl. VAT: € 15.34 / $ 17.79
