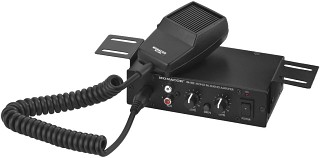

Mono PA mixing amplifier PA-102

Mono PA mixing amplifier, 15 WMAX.

1 adjustable microphone input
1 adjustable line input
Supplied with hand-held push-to-talk microphone
Siren function via push-button
Metal housing
Supplied with mounting brackets
12 V battery operation

Specifications:

Output power: 8.5 W_RMS, 15 W_MAX/12 V
Mic input: 3.4 mV/2.2 kΩ
Line input: 240 mV/11 kΩ
Output: 4+8 Ω
Frequency range: 20-20,000 Hz
S/N ratio: 70 dB
THD:<0.3 %
Power supply: 12 V DC current /2 A
Admiss. ambient temp.: 0-40 °C
Dimensions: 151x41x115 mm
Weight: 410 g
Inputs:
Mic: 1 x 6.3 mm
Line: 1 x RCA L/R
Outputs:
Speakers: plug-in screw terminals
Ext. speaker: -
Power supply: plug-in screw terminals

Price per unit (Order No. mo-172970) EUR 111,10 excl. VAT: € 93.36 / $ 110.17

5-zone mono PA mixing amplifier PA-1120

5-zone mono PA mixing amplifier

1 x 120 WRMS (PA-1120)
1 x 240 WRMS (PA-1240)
5 zones, can be controlled individually
Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
Bass, treble and master controls, level display via LEDs, regulated fan
Insertions for various functions are available at option
17 V phantom power for electret microphones
Connection for zone paging microphone PA-1120RC (available at option)
Connection for push-to-talk microphone PA-4000PTT or PA-4300PTT
Automatic alarm announcement with insertion PA-1120DMT (available at option)
Mains operation and 24 V emergency power operation
Removable mounting brackets

Specifications:

General information:
Output power: 120 W_RMS
: 170 W_MAX
Inputs:
Mic/line 1-3: 2.5 mV/5 kΩ, 0.3 V/5 kΩ
Line 4-5: 0.3 V/15 kΩ
Preamplifier: 0.775 V/10 kΩ
Outputs:
Speakers: 100 V/70 V
Preamplifier: 0.775 V/100 Ω
Record: 0.775 V/3 kΩ
Frequency range: 55-16,000 Hz
Tone control:
Bass: ±10 dB/100 Hz
Treble: ±10 dB/10 kHz
S/N ratio:
Mic:>70 dB, A-weighted
Line:>80 dB, A-weighted
THD:<1 %
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/340 VA,
: 24 V DC current /15 A
Dimensions: 482x133x352 mm, 3 RS
Weight: 13 kg
Inputs:
Mic/line: 3 x 6.3 mm/XLR (combo)
Line: 2 x RCA L/R
Zone paging microphone: 2 x RJ45, optional
Push-to-talk microphone: 2 x RJ45
Telephone system: screw terminals
Ext. amplifier: 1 x 6.3 mm jack
Outputs:
Mom. push-button for chime: -
1 x preamplifier: 1 x 6.3 mm jack
Speakers: screw terminals
Record: 1 x RCA L/R
Power supply:
230 V : 3-pin IEC jack
24 V DC current: screw terminals

Price per unit (Order No. mo-170780) EUR 826,70 excl. VAT: € 694.71 / $ 819.75

Timer insertion PA-1200C

Timer insertion, with DCF77 radio-controlled clock receiver for the PA mixing amplifiers with insertion compartment.

40 memory places, to be programmed and edited as desired
3 selectable chimes, remote-controllable
3 relay contacts (NO/NC) for switching external units
A combination with digital message insertion PA-1120DMT allows time-controlled announcements

Price per unit (Order No. mo-171160) - not available

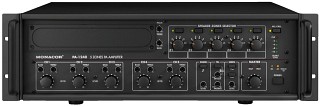

5-zone mono PA mixing amplifier PA-1240

5-zone mono PA mixing amplifier

1 x 120 WRMS (PA-1120)
1 x 240 WRMS (PA-1240)
5 zones, can be controlled individually
Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
Bass, treble and master controls, level display via LEDs, regulated fan
Insertions for various functions are available at option
17 V phantom power for electret microphones
Connection for zone paging microphone PA-1120RC (available at option)
Connection for push-to-talk microphone PA-4000PTT or PA-4300PTT
Automatic alarm announcement with insertion PA-1120DMT (available at option)
Mains operation and 24 V emergency power operation
Removable mounting brackets

Specifications:

General information:
Output power: 240 W_RMS
: 340 W_MAX
Inputs:
Mic/line 1-3: 2.5 mV/5 kΩ, 0.3 V/5 kΩ
Line 4-5: 0.3 V/15 kΩ
Preamplifier: 0.775 V/10 kΩ
Outputs:
Speakers: 100 V/70 V
Preamplifier: 0.775 V/100 Ω
Record: 0.775 V/3 kΩ
Frequency range: 55-16,000 Hz
Tone control:
Bass: ±10 dB/100 Hz
Treble: ±10 dB/10 kHz
S/N ratio:
Mic:>70 dB, A-weighted
Line:>80 dB, A-weighted
THD:<1 %
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/630 VA
: 24 V DC current /27 A
Dimensions: 482x133x352 mm, 3 RS
Weight: 14 kg
Inputs:
Mic/line: 3 x 6.3 mm/XLR (combo)
Line: 2 x RCA L/R
Zone paging microphone: 2 x RJ45, optional
Push-to-talk microphone: 2 x RJ45
Telephone system: screw terminals
Ext. amplifier: 1 x 6.3 mm jack
Outputs:
Mom. push-button for chime: -
1 x preamplifier: 1 x 6.3 mm jack
Speakers: screw terminals
Record: 1 x RCA L/R
Power supply:
230 V : 3-pin IEC jack
24 V DC current: screw terminals

Price per unit (Order No. mo-170790) EUR 1005,50 excl. VAT: € 844.96 / $ 997.05

4-channel mono mixing amplifier PA-40120

4-channel mono mixing amplifier, with 4 active 120 W outputs, for setting up a multi-zone PA system. A switch allows each of the 5 inputs to be assigned to one of the 4 outputs. Thus, it is possible to reproduce varying programmes in different areas. Another advantage is that an announcement in one area will not interrupt the programme in another area. With the optional zone-paging microphone PA-4000RC, the amplifier can be extended to a 4-channel PA system. In combination with the fireman's microphone PA-4000FMP with integrated voice memory, e.g.an alarm system can be set up in schools.

4 x 120 WRMS
4 zones, can be controlled individually
3 mic/line inputs and 2 line inputs
Built-in adjustable monitor speaker
Chime and siren can also be activated via external momentary push-button
Bass, treble and master controls, level display via LEDs, regulated fan
Phantom power for electret microphones
Connection for microphone PA-4000PTT
Connections for 4 x PA fireman's microphone PA-4000FMP
Mains operation and 24 V emergency power operation

Specifications:

Output power: 4 x 120 W_RMS, 4 x 170 W_MAX
Mic/line 1-3: 2.5 mV/5 kΩ, 0.3 V/15 kΩ
Line 4-5: 0.3 V/15 kΩ
Speakers: 4 x 4 Ω, 4 x 70 V/100 V
Preamplifier: 0.775 V/200 Ω
Record: 0.775 V/3 kΩ
Frequency range: 45-20,000 Hz
Bass: ±10 dB/100 Hz
Treble: ±10 dB/10 kHz
Mic:>70 dB, A-weighted
Line:>90 dB, A-weighted
THD:<1 %
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/1,500 VA, 24 V DC current /40 A
Dimensions: 482x90x377 mm, 2 RS
Weight: 22.1 kg
Mic/line: 3 x 6.3 mm/XLR (combo)
Line: 2 x RCA L/R
Push-to-talk microphone: 1 x RJ45
Emergency: 4 x RJ45
Mom. push-button for chime: screw terminals
Preamplifier: 4 x screw terminal
Speakers: 4 x screw terminal
Monitor: 1 x 6.3 mm jack
Record: 1 x RCA L/R
230 V : mains cable
24 V DC current: screw terminals

Price per unit (Order No. mo-173220) EUR 1520,82 excl. VAT: € 1278.00 / $ 1508.04

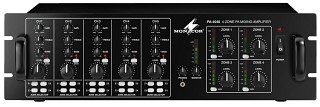

4-channel mono mixing amplifier PA-4040

4-channel mono mixing amplifier, with professional features for general multi-room PA applications.

4 x 40 WRMS, 100 V and 4 Ω/8 Ω operation
Perfect utilisation of the capacity and reliable protection of the connected speakers due to an integrated limiter
3 inputs microphone/line via comb. jacks
2 inputs line stereo via RCA jacks
Each input channel with gain control, 2-way tone control, channel mute switch and routing switch for zones
Microphone inputs with +15 V phantom power, can be switched on additionally as required
Priority function for channels 1-3, switchable
Independent paging input, can be routed to all zones
4 zone outputs, can be controlled individually
Zone and monitor line outputs for additional amplifiers or recorders
Connection for monitor speakers
Level control via VU meters for zone and monitor
Adjustable headphone output
Temperature-controlled fan, continuously adjustable
230 V mains operation

PROSOUND 02/2008

"You have to practice a very long time in order to cause an operating error. An absolutely useful unit available at a favourable price."

Specifications:

Output power: 4 x 40 W_RMS 4 x 65 W_MAX
Mic/line: 5 mV/4 kΩ, 100 mV/10 kΩ
Line: 100 mV/30 kΩ
Telephone paging: 40 mV/5 kΩ
Speakers: 4 x 25 V/70 V/100 V, 4 Ω/8 Ω
Monitor speakers: 8 Ω/1 W
Line (zone): 1.7 V, bal.
Line (mix out): 3.95 V
Frequency range: 50-17,000 Hz
Bass: ±10 dB/100 Hz
Treble: ±10 dB/10 kHz
S/N ratio, mic:>65 dB
S/N ratio, line:>75 dB
THD:<1 %
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/450 VA
Dimensions: 482x133x310 mm, 3 RS
Weight: 15 kg
Mic/line: 3 x 6.3 mm/XLR comb. jack, bal.
Line: 2 x RCA L/R
Paging: screw terminal
Priority: screw terminal
Line (zone): screw terminal
Line (mix out): screw terminal
Headphones: 3.5 mm stereo jack
Speakers (monitor): screw terminal
Speakers (zone): screw terminal
Power supply: 3-pin IEC jack

Price per unit (Order No. mo-172520) EUR 666,40 excl. VAT: € 560.00 / $ 660.80

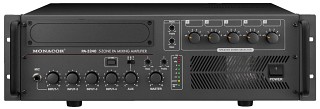

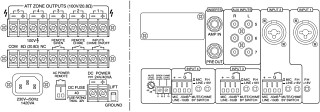

5-zone mono PA mixing amplifier PA-5240

5-zone mono PA mixing amplifier

1 x 240 WRMS (PA-5240)
1 x 480 WRMS (PA-5480)
5 zones, can be controlled individually
Chime, wailing sound, automatic mute, chime and siren can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable)
Bass, treble and master controls, level display via LEDs, regulated fan
Insertions for various functions are available at option
Phantom power for electret microphones
Connection for microphone PA-5000PTT
Alarm announcement with insertion PA-1120DMT (available at option)
Mains operation and 24 V emergency power operation
Removable mounting brackets

Specifications:

General information:
Output power: 240 W_RMS
: 340 W_MAX
Inputs:
Mic 1: 2.5 mV/2 kΩ
Mic/line 2-4: 2.5 mV/2 kΩ, 0.3 V/200 kΩ
Line 5-7: 0.3 V/5 kΩ
Preamplifier: 0.775 V/10 kΩ
Outputs:
Speakers: 100 V/70 V
Preamplifier: 0.775 V/100 Ω
Frequency range: 55-16,000 Hz
Tone control:
Bass: ±10 dB/100 Hz
Treble: ±10 dB/10 kHz
S/N ratio:
Mic:>70 dB
Line:>80 dB
THD:<1 %
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/750 VA,
: 24 V DC current /20 A
Dimensions: 482x133x352 mm, 3 RS
Weight: 16.5 kg
Inputs:
Mic/line: 2 x 6.3 mm/XLR (combo), 1 x 6.3 mm jack
Line: screw terminals, 3 x RCA L/R
Zone paging microphone: screw terminal
Push-to-talk microphone: screw terminal
Telephone: -
Preamplifier: 1 x 6.3 mm jack
Outputs:
Mom. push-button for chime: screw terminals
Preamplifier: 1 x 6.3 mm jack
Speakers: screw terminals
Power supply:
230 V : 3-pin IEC jack
24 V DC current: screw terminals

Price per unit (Order No. mo-243140) EUR 964,70 excl. VAT: € 810.67 / $ 956.59

5-zone mono PA mixing amplifier PA-5480

5-zone mono PA mixing amplifier

1 x 240 WRMS (PA-5240)
1 x 480 WRMS (PA-5480)
5 zones, can be controlled individually
Chime, wailing sound, automatic mute, chime and siren can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable)
Bass, treble and master controls, level display via LEDs, regulated fan
Insertions for various functions are available at option
Phantom power for electret microphones
Connection for microphone PA-5000PTT
Alarm announcement with insertion PA-1120DMT (available at option)
Mains operation and 24 V emergency power operation
Removable mounting brackets

Specifications:

General information:
Output power: 480 W_RMS
: 680 W_MAX
Inputs:
Mic 1: 2.5 mV/2 kΩ
Mic/line 2-4: 2.5 mV/2 kΩ, 0.3 V/200 kΩ
Line 5-7: 0.3 V/5 kΩ
Preamplifier: 0.775 V/10 kΩ
Outputs:
Speakers: 100 V/70 V
Preamplifier: 0.775 V/100 Ω
Frequency range: 55-16,000 Hz
Tone control:
Bass: ±10 dB/100 Hz
Treble: ±10 dB/10 kHz
S/N ratio:
Mic:>70 dB
Line:>80 dB
THD:<1 %
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/1,500 VA,
: 24 V DC current /40 A
Dimensions: 482x133x352 mm, 3 RS
Weight: 20 kg
Inputs:
Mic/line: 2 x 6.3 mm/XLR (combo), 1 x 6.3 mm jack
Line: screw terminals, 3 x RCA L/R
Zone paging microphone: screw terminal
Push-to-talk microphone: screw terminal
Telephone: -
Preamplifier: 1 x 6.3 mm jack
Outputs:
Mom. push-button for chime: screw terminals
Preamplifier: 1 x 6.3 mm jack
Speakers: screw terminals
Power supply:
230 V : 3-pin IEC jack
24 V DC current: screw terminals

Price per unit (Order No. mo-243150) EUR 1174,20 excl. VAT: € 986.72 / $ 1164.33

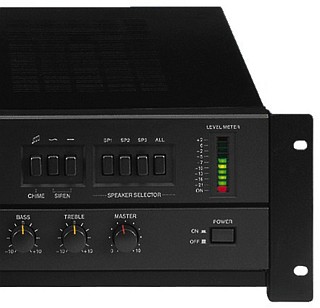

Mounting frame PA-1200RM

Mounting frame, for the installation of PA mixing amplifier PA-1200 into a 482 mm (19") rack, black lacquered. Inside dimensions: 420x290 mm, 3 RS

Price per unit (Order No. mo-126740) EUR 81,04 excl. VAT: € 68.10 / $ 80.36

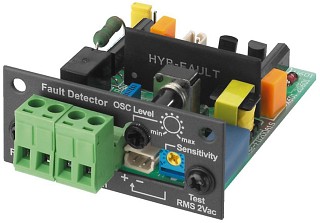

Fault detection module PA-6FD

Fault detection module, for the PA amplifiers PA-6240, PA-6480, PA-6600 and PA-1960. In order to monitor the functions of the PA amplifier, the module transmits a 20 kHz pilot tone and checks this at the amplifier output. In case of a fault, a floating relay contact will be opened. The sensitivity can be adjusted.

Price per unit (Order No. mo-172300) EUR 90,90 excl. VAT: € 76.39 / $ 90.14

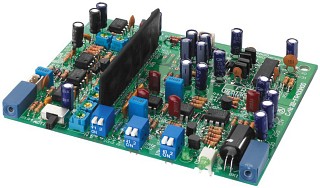

Anti-feedback module PA-6FR

Anti-feedback module, for the PA amplifiers PA-6240, PA-6480 and PA-6600. The module uses the frequency shift method. The frequency shift of 2-6 Hz is almost noiseless and provides the highest possible protection against acoustic feedback. Beside the activation of the anti-feedback function and the frequency selection (2, 4, 5, 6 Hz), no further adjustments are necessary. Affects mic 1 only.

Price per unit (Order No. mo-172320) EUR 266,60 excl. VAT: € 224.03 / $ 264.36
