Conference and tour guide systems

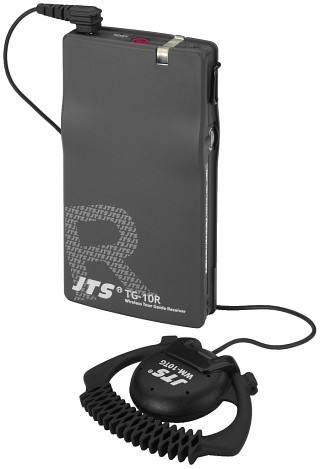

PLL pocket receiver TG-10R/1

PLL Tour Guide System

863-865 MHz (3 channels)
Supplied with extensive accessories
Operating range: up to 60 m
Licence-free system in the EU

PLL pocket receiver

3.5mm headphone connection
Supplied with matching earphone with rubber ear hook
Channel selector button
LED channel indicator
Volume level control
Belt clip and lanyard
Power supply via integrated rechargeable lithium-ion battery 3.7 V/1,300 mAh (operating time: up to 14 hours)
Dimensions: 54x99x17 mm
Weight: 80 g

Induction loop NL-90 for signal transmission to a hearing device is available at option.

Price per unit (Order No. mo-253070) EUR 208,20 excl. VAT: € 174.96 / $ 204.70

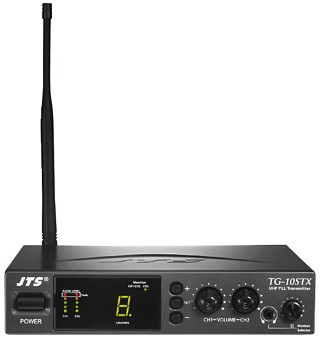

16-channel PLL wireless transmitter TG-10STX/1

Interpretation System

16-channel PLL wireless transmitter

An unobtrusive and elegant way to wirelessly transmit interpretations which have been generated, e.g. via the IT-12 system into an auditorium. Two different input signals (CH1/CH2) can be inserted via the rear comb. jacks, individually adjusted in the level and then be transmitted as a mono mixed signal. A further input signal (CH3) can be fed to the TG-10STX via a 6.3 mm mono jack and be used for monitoring purposes via the 3.5 mm stereo jack at the front panel. The volume for the headphone output can continuously be adjusted. The channels 1 and 2 can also be monitored and controlled in this way. Two loop outputs are available to insert further units into the system, with minimum wiring effort. The TG-10STX/1 operates in the commonly assigned frequency range 863-865 MHz and is thus licence-free. A parallel operation of up to three wireless transmitters is possible. The TG-10R/1 can be used as a suitable receiver.

Power supply via supplied PSU
Dimensions: 214x45x240 mm
Weight: 1.3 kg

Licence-free in the EU!

Price per unit (Order No. mo-173730) EUR 444,31 excl. VAT: € 373.37 / $ 436.84

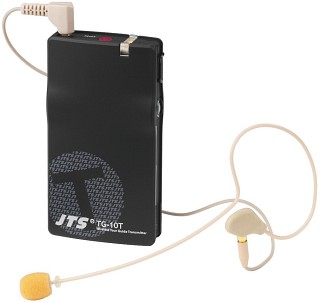

PLL pocket transmitter TG-10T/1

PLL Tour Guide System

863-865 MHz (3 channels)
Supplied with extensive accessories
Operating range: up to 60 m

Licence-free system in the EU

PLL pocket transmitter

Built-in electret microphone
3.5 mm microphone connection
Supplied with matching earband microphone CM-801F
Channel selector button
LED channel indicator
Volume level control
Belt clip and lanyard
Power supply via integrated rechargeable lithium-ion battery 3.7 V/1,300 mAh (operating time: up to 14 hours)
Dimensions: 54x99x17 mm
Weight: 80 g

Licence-free system in the EU

Price per unit (Order No. mo-253080) EUR 194,10 excl. VAT: € 163.11 / $ 190.84

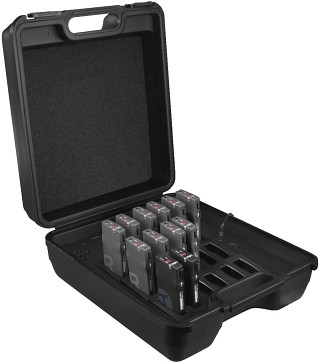

Transport case with integrated charging function TG-10CH18

Transport case with integrated charging function, for the transmitters TG-10T/1 and the receivers TG-10R/1 as well as for the KA-10 components.

For simultaneously charging the rech. batteries of up to 18 units
Average charging time, depending on the condition of the rechargeable batteries used: approx. 8 hours
Each slot with LED for indicating battery charging status
Mechanical reverse polarity protection
Protection against overload, short-circuit and deep discharge
Power supply via supplied switch-mode PSU
Dimensions: 361x422x189 mm
Weight: 3.6 kg

Price per unit (Order No. mo-252660) EUR 606,50 excl. VAT: € 509.66 / $ 596.31

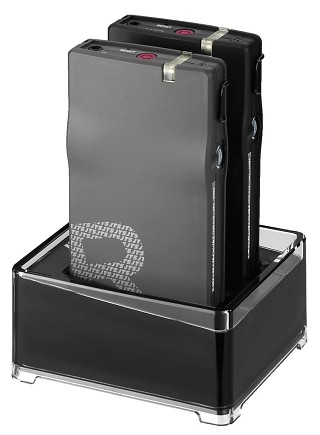

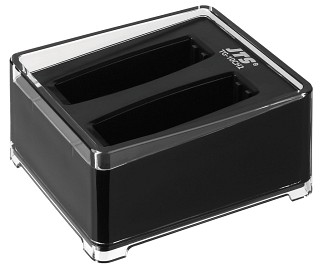

Charging station TG-10CH2

Charging station for the transmitters TG-10T/1 and the receivers TR-10R/1 as well as for the KA-10 components.

For simultaneously charging the rech. batteries of 2 units
Average charging time, depending on the condition of the rechargeable batteries used: approx. 8 hours
Each slot with LED for indicating battery charging status
Mechanical reverse polarity protection
Protection against overload, short-circuit and deep discharge
Power supply via supplied PSU
Dimensions: 75x41x85 mm

Price per unit (Order No. mo-252670) EUR 86,83 excl. VAT: € 72.97 / $ 85.37

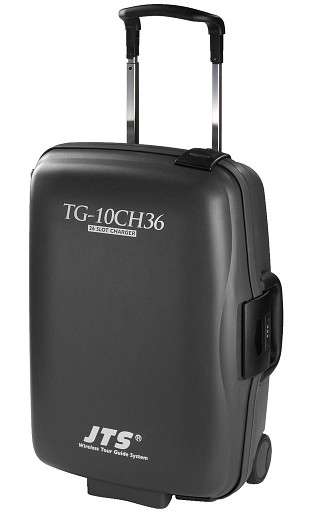

Transport case with castors and integrated charging function TG-10CH36

Transport case with castors and integrated charging function, for the transmitters TG-10T/1 and the receivers TG-10R/1 as well as for the KA-10 components.

For simultaneously charging the rech. batteries of up to 36 units
Average charging time, depending on the condition of the rechargeable batteries used: approx. 8 hours
Each slot with LED for indicating battery charging status
Mechanical reverse polarity protection
Protection against overload, short-circuit and deep discharge
Robust hard-sided plastic transport case with carrying handle
Due to the integrated telescopic handle and 2 castors, the transport case can easily be pulled like a trolley
Can be locked via key and combination lock
Supplied with nylon bag for accessories, fixed at the rear of the case
Power supply via supplied switch-mode PSU
Dimensions: 400x561x230 mm
Weight: 7.3 kg

Price per unit (Order No. mo-252680) EUR 1061,20 excl. VAT: € 891.76 / $ 1043.36

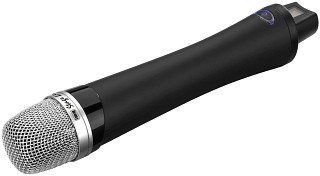

Hand-held microphone with integrated transmitter ATS-12HT

Hand-held microphone with integrated transmitter

Matching the 16-channel mono PLL audio transmission system of the ATS-10 series and ATS-16R
Electret microphone cartridge, cardioid characteristic
16 selectable channels
Pilot tone
Mute function
Push-to-talk function
Adjustable transmitting power (high: 10mW/low: 1 mW)
LCD for indicating channel and battery status
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied), operating range: approx. 50 m, dimensions: Ø 35 mm x 200 mm, weight: 100 g

Licence-free in the EU.

Price per unit (Order No. mo-253310) EUR 190,30 excl. VAT: € 159.92 / $ 187.10

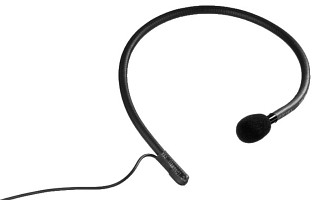

Electret neckband microphone ECM-16N

Electret neckband microphone. A special microphone, very comfortable to wear due to its ergonomic design. The unusual combination of gooseneck and microphone ensures a secure fit and a good voice transmission. Perfectly matched to the transmitter ATS-16T.

Can also be operated without ATS system via power supply adapter (e.g. EMA-20), available at option
Flexible 48 cm neckband of high-quality metal gooseneck technology
Cardioid characteristic with low acoustic feedback and a voice-optimised sound
1.1 m connection cable with 3.5 mm mono plug
Supplied with foam windshield

Specifications:

System: elecret/cardioid
Frequency range: 150-16,000 Hz
Impedance: 680 Ω
Sensitivity: 3.16 mV/Pa/1 kHz
Max. SPL: 110 dB
Power supply: 1.5 V via ATS-16T or 1.5-9 V via optional power supply adapter
Admiss. ambient temp.: 0-40 °C
Dimensions:
Weight: 160 g
Connection: 3.5 mm mono plug

Price per unit (Order No. mo-234340) - not available

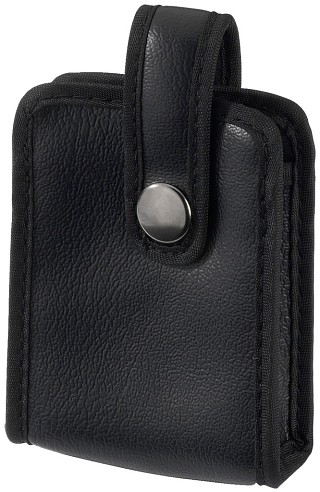

Protective bag ATS-10BAG

Protective bag, for the transmitters and receivers of the ATS-10 series. With belt clip.

Price per unit (Order No. mo-233910) EUR 8,28 excl. VAT: € 6.96 / $ 8.14

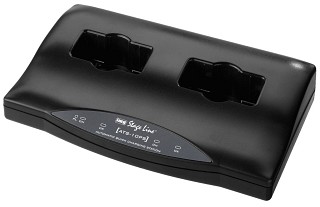

Automatic quick-charge station, for simultaneously charging the rechargeable batteries of two units from the ATS-10 series, ATS-10PS

Conference and tour guide systems, Automatic quick-charge station, for simultaneously charging the rechargeable batteries of two units from the ATS-10 series, ATS-10PS — Enlarge

16-channel Mono PLL Audio Transmission System, 863-865 MHz

Suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
Wireless transmissions of audio signals with one transmitter and one receiver are also possible
Due to the small frequency spacing in this free frequency range, a simultaneous operation of not more than two transmitters is recommended
Licence-free in the EU

Automatic quick-charge station, for simultaneously charging the rechargeable batteries of two units from the ATS-10 series.

Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 3-4 hours, e.g. for 1,300 mAh rech. batteries
Operating LEDs for "charging" and "charging completed"
Supplied with plug-in PSU

Price per unit (Order No. mo-243530) EUR 119,30 excl. VAT: € 100.25 / $ 117.29

Receiver, with 3.5 mm mono jack ATS-10R

16-channel Mono PLL Audio Transmission System, 863-865 MHz

Suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
Wireless transmissions of audio signals with one transmitter and one receiver are also possible
Due to the small frequency spacing in this free frequency range, a simultaneous operation of not more than two transmitters is recommended
Licence-free in the EU

Receiver, with 3.5 mm mono jack.

16 selectable channels
Built-in speaker
Including matching clip-on earphone with rubber ear hook
Status indication of rech. battery
Operating positions: on/standby/off
Volume level control, belt clip
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied), dimensions: 92x65x25 mm, weight: 80 g

Price per unit (Order No. mo-243500) EUR 190,30 excl. VAT: € 159.92 / $ 187.10

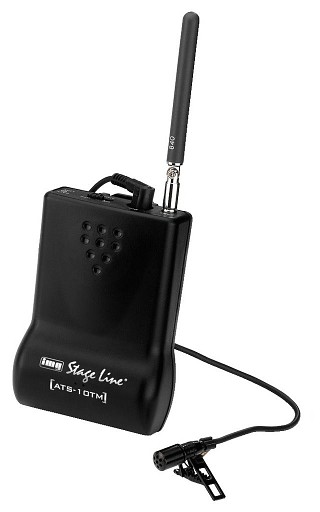

Transmitter, for microphone applications ATS-10TM

16-channel Mono PLL Audio Transmission System, 863-865 MHz

Suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
Wireless transmissions of audio signals with one transmitter and one receiver are also possible
Due to the small frequency spacing in this free frequency range, a simultaneous operation of not more than two transmitters is recommended

Licence-free in the EU

Transmitter, for microphone applications.

16 selectable channels
Integrated microphone
Supplied with additional electret tie clip microphone
Status indication of rech. battery
Operating positions: on/standby/off
Volume level control, belt clip
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied), transmitting power: 10 mW (EIRP), operating range: approx. 50 m, dimensions: 92x65x25 mm, weight: 78 g

Licence-free in the EU.

Price per unit (Order No. mo-243510) EUR 172,50 excl. VAT: € 144.96 / $ 169.60

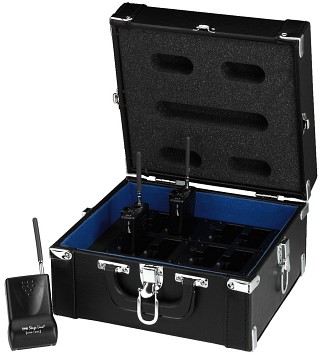

Transport case with integrated charging function ATS-12C

Transport case with integrated charging function, for the transmitters and receivers of the ATS-10 series.

For simultaneously charging the rech. batteries of up to 12 units
Each slot with LED for indicating battery charging status
Wooden case with black artificial leather cover
Supplied with matching PSU
Dimensions: 300x170x280 mm

Supplied without units.

Price per unit (Order No. mo-243930) EUR 417,70 excl. VAT: € 351.01 / $ 410.68

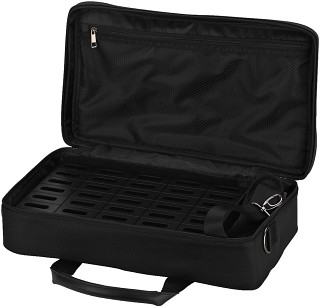

Transport bag with integrated charging function ATS-12CB

Transport bag with integrated charging function, for the transmitters and receivers of the ATS-20 series.

For simultaneously charging the rech. batteries of up to 12 units
Each slot with LED for indicating battery charging status
Black nylon bag with zip fastener, carrying handle and compartments for accessories
Supplied with matching PSU
Dimensions: 350x110x120 mm
Weight: 1.1 kg

Supplied without units.

Price per unit (Order No. mo-255660) EUR 331,30 excl. VAT: € 278.40 / $ 325.73

Artificial leather protective bag ATS-16BAG

Artificial leather protective bag, for the transmitters and receivers of the ATS-16 series. With belt clip and hook and loop fastener.

Price per unit (Order No. mo-220720) EUR 8,28 excl. VAT: € 6.96 / $ 8.14

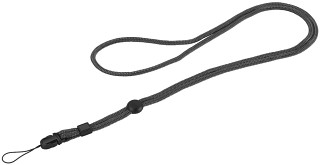

Lanyard ATS-16CORD

Lanyard, for transmitters and receivers of the ATS-16 series. Nylon version.

Price per unit (Order No. mo-220730) EUR 4,78 excl. VAT: € 4.02 / $ 4.70

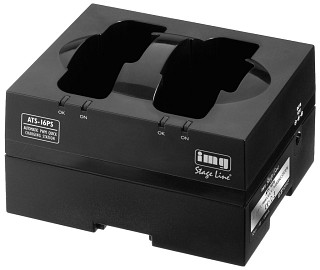

Intelligent PWM quick-charge station ATS-16PS

Intelligent PWM quick-charge station, for simultaneously charging the rechargeable batteries (NC, NiMH) of two units from the ATS-16 series.

Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 3-4 hours, e.g. for 1,300 mAh rech. batteries
Each slot with LED for indicating a fault and battery charging status
Mechanical reverse polarity protection
Supplied with plug-in PSU

Price per unit (Order No. mo-244670) EUR 114,40 excl. VAT: € 96.13 / $ 112.48

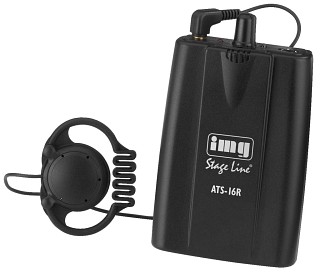

16-channel PLL receiver ATS-16R

Professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories

Suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
Wireless transmissions of audio signals with one transmitter and one receiver are also possible
Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitter, stationary RF sources of interference and other local conditions)
Licence-free in the EU

16-channel PLL receiver

Built-in speaker
Including matching chip-on earphone with rubber ear hook
Connection for optional audio tube earphone
Audio output via 3.5 mm stereo jack
Pilot tone squelch and noise squelch
Status indication of rech. battery, indication of carrier signal
Volume level control, belt clip
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied) or low-voltage jack (5 V), dimensions: 66x111x35 mm, weight: 100 g

The hand-held microphone with integrated transmitter ATS-12HT matches the ATS-16 series and is available at option.

PROSOUND 03/2007 on the ATS-16R and components of the tour guide system

"An extensive system which is equipped to meet every requirement. Easily set up with perfect audibility! A functional state-of-the-art system with perfect features for practical operations."

Price per unit (Order No. mo-244680) EUR 217,90 excl. VAT: € 183.11 / $ 214.24

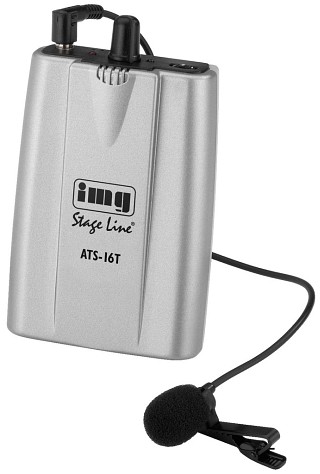

16-channel PLL transmitter, for microphone operation and line audio signals ATS-16T

Professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories

Suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
Wireless transmissions of audio signals with one transmitter and one receiver are also possible
Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitter, stationary RF sources of interference and other local conditions)
Licence-free in the EU

16-channel PLL transmitter, for microphone operation and line audio signals.

Integrated microphone
Supplied with additional electret tie clip microphone
Audio line input via 3.5 mm mono jack
Status indication of rech. battery, indication of carrier signal
Volume level control, belt clip
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied) or low-voltage jack (5 V), transmitting power: 10 mW (EIRP), operating range: approx. 50 m, dimensions: 66x111x35 mm, weight: 85 g

Licence-free in the EU!

Price per unit (Order No. mo-244690) EUR 208,20 excl. VAT: € 174.96 / $ 204.70

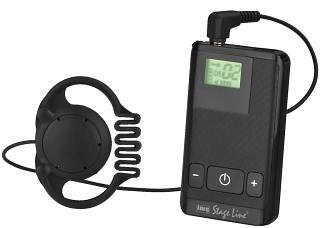

16-channel miniature receiver ATS-20R

16-channel Digital Voice Transmission System, 863-865 MHz

Suitable as a tour guide system and for any other application in which a certain voice source is to be distributed to one or more receivers
High resistance to interference due to digital transmission
High operating range
Frequency range perfectly adapted to voice transmissions
Parallel operation of up to 4 different channels possible without any interference
Extra small and lightweight transmitters and receivers
Licence-free in the EU

16-channel miniature receiver

Supplied with matching clip-on earphone
Switches off automatically after not receiving an input signal for 20 minutes (power-saving function)
LCD for indicating channel, carrier signal, volume and battery status
Autolock function
Supplied with lanyard
Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
Dimensions: 40x87x12 mm
Weight: 37 g

Price per unit (Order No. mo-255640) EUR 126,70 excl. VAT: € 106.47 / $ 124.57

16-channel miniature transmitter, for microphone operation and audio line signals ATS-20T

16-channel Digital Voice Transmission System, 863-865 MHz

Suitable as a tour guide system and for any other application in which a certain voice source is to be distributed to one or more receivers
High resistance to interference due to digital transmission
High operating range
Frequency range perfectly adapted to voice transmissions
Parallel operation of up to 4 different channels possible without any interference
Extra small and lightweight transmitters and receivers

Licence-free in the EU

16-channel miniature transmitter, for microphone operation and audio line signals.

Supplied with electret tie clip microphone
Microphone input/audio line input via 3.5 mm jack with automatic detection, depending on the configuration (mono/stereo)
LCD for indicating channel and battery status
Mute button
Supplied with lanyard
Transmitting power: 10 mW (EIRP), operating range: approx. 100 m
Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
Dimensions: 40x80x12 mm
Weight: 37 g

Licence-free in the EU!

Price per unit (Order No. mo-255650) EUR 126,70 excl. VAT: € 106.47 / $ 124.57

Transport case with integrated charging function ATS-25C

Transport case with integrated charging function, for the transmitters and receivers of the ATS-50 series.

For simultaneously charging the rech. batteries of up to 25 units
Each slot with LED for indicating battery charging status
Transport case with black artificial leather cover
Supplied with matching PSU
Dimensions: 442x160x290 mm
Weight: 7.5 kg

Supplied without units.

Price per unit (Order No. mo-255180) EUR 931,10 excl. VAT: € 782.44 / $ 915.45

Transport case with integrated charging function ATS-30C

Transport case with integrated charging function, for the transmitters and receivers of the ATS-10 series.

For simultaneously charging the rech. batteries of up to 30 units
Each slot with LED for indicating battery charging status
Transport case with black artificial leather cover
Supplied with matching PSU
Dimensions: 660x170x300 mm

Supplied without units.

Price per unit (Order No. mo-244320) EUR 752,30 excl. VAT: € 632.18 / $ 739.66

Transport bag with integrated charging function ATS-35CB

Transport bag with integrated charging function, for the transmitters and receivers of the ATS-20 series.

For simultaneously charging the rech. batteries of up to 35 units
Each slot with LED for indicating battery charging status
Black nylon bag with zip fastener, carrying handle and compartments for accessories
Supplied with matching PSU
Dimensions: 420x140x250 mm
Weight: 3 kg

Supplied without units.

Price per unit (Order No. mo-255670) - not available

Transport case with intelligent PWM quick-charge function ATS-36C

Transport case with intelligent PWM quick-charge function, for the transmitters and receivers of the ATS-16... series.

For simultaneously charging the rech. batteries (NC, NiMH) of up to 36 units
Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 5-6 hours, e.g. for 1,300 mAh rech. batteries
Each slot with LED for indicating a fault and battery charging status
Mechanical reverse polarity protection
Lockable plastic transport case fitted with castors
Supplied with matching switch-mode PSU
Dimensions: 860x230x350 mm

Price per unit (Order No. mo-244700) EUR 1135,60 excl. VAT: € 954.29 / $ 1116.51

40-channel PLL receiver ATS-42R

40-channel Mono PLL Voice Transmission System, 863-865 MHz

Economy tour guide system
Narrow-band frequency range which has been perfectly adapted to voice transmissions. Thus, a parallel operation of up to 12 different channels is possible without any interference
Licence-free in the EU

40-channel PLL receiver

Including matching clip-on earphone with rubber ear hook
Adjustable headphone output
Switches off automatically after not receiving an input signal for 30 minutes (power-saving function)
LCD for indicating channel and battery status
Noise squelch
Channel autolock function
With lanyard
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
Dimensions: 66x102x26 mm
Weight: 60 g

Matching chargers TXA-800PS, TXA-12C or TXA-36C are available at option.

Price per unit (Order No. mo-254560) EUR 137,20 excl. VAT: € 115.29 / $ 134.89

40-channel PLL transmitter, for microphone applications ATS-42T

40-channel Mono PLL Voice Transmission System, 863-865 MHz

Economy tour guide system
Narrow-band frequency range which has been perfectly adapted to voice transmissions. Thus, a parallel operation of up to 12 different channels is possible without any interference

Licence-free in the EU

40-channel PLL transmitter, for microphone applications.

Supplied with additional electret tie clip microphone
LCD for indicating channel and battery status
Channel autolock function
Lanyard
Transmitting power: 10 mW (EIRP), operating range: approx. 50 m
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
Dimensions: 66x102x26 mm
Weight: 60 g

Licence-free in the EU!

Matching chargers TXA-800PS, TXA-12C or TXA-36C are available at option.

Price per unit (Order No. mo-254570) EUR 137,20 excl. VAT: € 115.29 / $ 134.89

Intelligent PWM quick-charge station ATS-50PS

Intelligent PWM quick-charge station, for simultaneously charging the rechargeable batteries (NC, NiMH) of two units from the ATS-50 series.

Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 3-4 hours, e.g. for 1,300 mAh rech. batteries
Each slot with LED for indicating a fault and battery charging status
Mechanical reverse polarity protection
Supplied with plug-in PSU

Price per unit (Order No. mo-250080) - not available

40-channel PLL receiver ATS-50R

40-channel Mono PLL Voice Transmission System, 863-865 MHz

Economy tour guide system
Due to the narrow-band frequency range which has been perfectly adapted to voice transmissions, a parallel operation of up to 12 different channels is possible without any interference
Licence-free in the EU

40-channel PLL receiver

Supplied with matching earpiece
Adjustable headphone output
Switches off automatically after not receiving an input signal for 20 minutes (power-saving function)
LCD for indicating channel, carrier signal and battery status
Autolock function
Belt clip
Power supply via 1 x 1.2 V NiMH rech. battery AA size (not supplied)
Dimensions: 42x98x24 mm
Weight: 45 g

Price per unit (Order No. mo-255160) - not available

40-channel PLL transmitter, for microphone operation and audio line signals ATS-50T

40-channel Mono PLL Voice Transmission System, 863-865 MHz

Economy tour guide system
Due to the narrow-band frequency range which has been perfectly adapted to voice transmissions, a parallel operation of up to 12 different channels is possible without any interference

Licence-free in the EU

40-channel PLL transmitter, for microphone operation and audio line signals.

Integrated microphone
Supplied with additional electret tie clip microphone
Audio line input via 3.5 mm stereo jack
LCD for indicating channel and battery status
Mute button
Belt clip
Transmitting power: 10 mW (EIRP), operating range: approx. 100 m
Power supply via 1 x 1.2 V NiMH rech. battery AA size (not supplied)
Dimensions: 42x98x24 mm
Weight: 45 g

Licence-free in the EU!

Price per unit (Order No. mo-255170) - not available

Mono earphone ES-16

Mono earphone

Suitable for the receivers of the ATS-16 or ATS-10 series
Flexible rubber ear hook for a secure fit
Dynamic 32 Ω system
1.2 m connection cable with gold-plated 3.5 mm stereo plug

Specifications:

Headphones:
Driver:
System: dynamic
Frequency range: 20-20,000 Hz
Impedance: 32 Ω
Max. input power: 50 mW
Sensitivity: 105 dB/1 mW
Cable: 1.2 m
Plug: 3.5 mm stereo plug
Adapter:
Weight w/o cable: 8 g
Microphone:
System: -
Frequency range: -
Impedance: -
Sensitivity: -
Power supply: -
Connections: -

Price per unit (Order No. mo-220740) EUR 14,29 excl. VAT: € 12.01 / $ 14.05

Interpretation system, base unit IT-12M

Interpretation system, base unit (control and voice routing).

With the IT-12M, setting up a multi-language interpretation system is going to be child's play! The unit supports 12 languages (floor language/main language and 11 translations via interpretation console IT-12D), each transmitted via RCA outputs. The floor language (CH0) which is supplied by the PA system or conference system (e.g. CS-1) can be fed in via a balanced 6.3 mm jack input. The volume of the floor language can continuously be adjusted. Each output which doesn't have a translation assigned to, automatically provides the main language. The simultaneous interpreters can contact the main speaker via a slow-down signal to inform him or her if the conversation speed is too high. In case of an alarm, an audio message or an audio alarm signal can be fed to each output. The status LEDs of the interpretation channels provide an additional visual indication. An unbalanced dynamic microphone can be connected to the 6.3 mm jack of the comb. jack at the front of the IT-12M. A +48 V phantom power supply is available at the XLR input of the combo jack for the operation of a condenser microphone. The microphone signal will be mixed with the signal of CH0 and then be routed to the respective outputs (comment function). For documentation purposes, an optional recorder can be used for live recordings of the floor language which can be mixed with an external line signal at the same time. 12 DC outputs are implemented for the direct voltage supply of the optional wireless transmitters TG-10STX/1. With the supplied mounting brackets, the robust desktop metal housing can be converted into a 482 mm (19") cabinet.

Power supply: 230 V /50 Hz/90 VA
Dimensions: 423x52x220 mm
Weight: 2.6 kg

Price per unit (Order No. mo-173720) EUR 1045,72 excl. VAT: € 878.76 / $ 1028.14

Transport case with intelligent PWM quick-charge function TXA-12C

Transport case with intelligent PWM quick-charge function, for receiver TXA-800R and transmitter TXA-800HSE.

For simultaneously charging the rech. batteries (NC, NiMH) of up to 12 units
Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 5-6 hours, e.g. for 1,300 mAh rech. batteries
Each slot with LED for indicating a fault and battery charging status
Mechanical reverse polarity protection
Wooden case with artificial leather cover
Supplied with matching PSU
Dimensions: 300x170x280 mm

Supplied without units.

Price per unit (Order No. mo-252150) EUR 497,87 excl. VAT: € 418.38 / $ 489.50

Transport case with intelligent PWM quick-charge function TXA-36C

Transport case with intelligent PWM quick-charge function, for the receiver TXA-800R and transmitter TXA-800HSE.

For simultaneously charging the rech. batteries (NC, NiMH) of up to 36 units
Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 5-6 hours, e.g. for 1,300 mAh rech. batteries
Each slot with LED for indicating a fault and battery charging status
Mechanical reverse polarity protection
Lockable plastic transport case fitted with castors
Supplied with matching switch-mode PSU
Dimensions: 860x230x350 mm

Supplied without units.

Price per unit (Order No. mo-252160) EUR 1216,30 excl. VAT: € 1022.10 / $ 1195.86

16-channel PLL receiver TXA-800R

Professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories

Compatible with the portable amplifier systems of the TXA-800 and TXA-1000 series
Can be combined with the TXA-800and TXA-1000 series, but also suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
Can be combined with the transmitters and receivers of the ATS-16 series
Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitters, stationary RF sources of interference and other local conditions)
Licence-free in the EU

16-channel PLL receiver

Matching the transmitters TXA-800ST, ATS-16T and the portable amplifier system TXA-802CD with integrated wireless transmitter
16 selectable UHF frequencies (863.1-864.9 MHz)
Adjustable headphone output
Audio line mono output via 3.5 mm stereo jack
Line output level adjustable in 3 steps
Backlit LCD for indicating channel/frequency and battery status
Metal housing
Power supply via 2 x 1.5 V battery AA size or NiMH rech. battery (not supplied)
Scope of delivery includes earphones with rubber ear hook
Belt clip

Matching microphone transmitter TXA-800HT is available at option.

Price per unit (Order No. mo-172590) EUR 263,70 excl. VAT: € 221.60 / $ 259.27

16-channel PLL transmitter, for microphone operation and line audio signals TXA-800ST

Professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories

Compatible with the portable amplifier systems of the TXA-800 and TXA-1000 series
Can be combined with the TXA-800and TXA-1000 series, but also suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
Can be combined with the transmitters and receivers of the ATS-16 series
Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitters, stationary RF sources of interference and other local conditions)
Licence-free in the EU

16-channel PLL transmitter, for microphone operation and line audio signals.

Matching the receivers TXA-800R, ATS-16R and the portable amplifiers of the TXA-800 series
16 selectable UHF frequencies (863.1-864.9 MHz)
Audio stereo line input via RCA L/R
Balanced XLR microphone input and 6.3 mm microphone input
Audio mono line output via RCA
Adjustable headphone output
Backlit LCD for indicating channel/frequency, LEDs for carrier frequency, signal and signal peak
Additional DC voltage output 10-15 V DC current for connecting an additional transmitter
482 mm (19") rack installation possible with supplied mounting brackets
Power supply via supplied plug-in PSU
Dimensions: 215x50x210 mm
Weight: 1.25 kg

Licence-free in the EU.

Price per unit (Order No. mo-172600) EUR 501,30 excl. VAT: € 421.26 / $ 492.87
