Speaker systems: Low-impedance

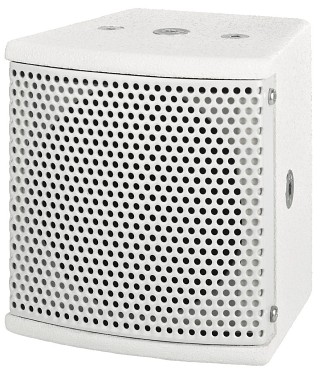

This series of miniature PA speakers is suitable for versatile applications. The full range systems with neutral sound tuning impress by a good speech intelligibility and a high-quality music reproduction, no matter whether used as unobtrusive speakers in fixed installations, as near-field monitor speakers in mobile applications or even as a small full range solution with subwoofer support. The black or white systems with a compact and unobtrusive design can ideally be integrated into existing architecture.

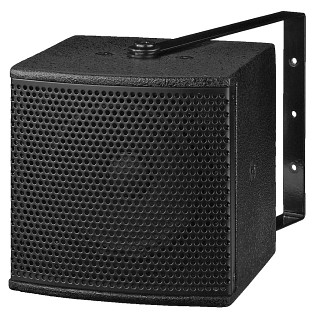

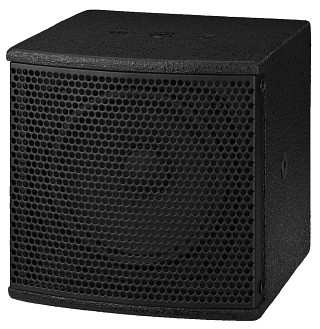

Miniature PA speaker system, 60 WMAX, 8 Ω

Very compact full range system, closed
8 cm (3") full range speaker
High-pass filter for the application from 180 Hz on with an additional subwoofer
High-quality MDF wooden cabinet in black (SW) or white (WS), with protective metal grille
Multi-purpose positioning and installation options
4 x M8 threaded inserts for suspended installation
2 x M6 threaded inserts suitable for bracket LST-40
2 x SPEAKER terminal in/out

tools4music 02/2014

"Any company working at trade fairs, in the installation sector or PA sector should stock these miniature speakers for versatile applications. Due to the low weight, they can easily be installed at lightweight trade fair stands in a suspended way. The miniature speakers provide a very lively sound with a surprisingly high volume level for its size."

+ 4-pole Speakon jacks

+ Workmanship

+ High efficiency

+ Price-performance ratio

+ Can be installed in any position

+ Choice of two colours

Specifications:

System: full range, closed
Bass speaker: 8 cm (3")
Tweeter: -
Power capabilities:
Music power: 60 W_MAX
Power rating: 30 W_RMS
General information:
Impedance: 8 Ω
Frequency range: 180-20,000 Hz
SPL (1 W/1 m): 88 dB
Max. rated SPL: 102 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 120x120x105 mm
Inputs: 1 x SPEAKER
Outputs: 1 x SPEAKER, par. out
Weight: 0.8 kg

Speaker systems: Low-impedance, Miniature PA speaker system, 60 WMAX, 8 , PAB-303/WS — Enlarge

This series of miniature PA speakers is suitable for versatile applications. The full range systems with neutral sound tuning impress by a good speech intelligibility and a high-quality music reproduction, no matter whether used as unobtrusive speakers in fixed installations, as near-field monitor speakers in mobile applications or even as a small full range solution with subwoofer support. The black or white systems with a compact and unobtrusive design can ideally be integrated into existing architecture.

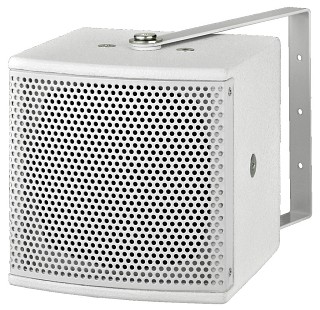

Miniature PA speaker system, 60 WMAX, 8 Ω

Very compact full range system, closed
8 cm (3") full range speaker
High-pass filter for the application from 180 Hz on with an additional subwoofer
High-quality MDF wooden cabinet in black (SW) or white (WS), with protective metal grille
Multi-purpose positioning and installation options
4 x M8 threaded inserts for suspended installation
2 x M6 threaded inserts suitable for bracket LST-40
2 x SPEAKER terminal in/out

tools4music 02/2014

"Any company working at trade fairs, in the installation sector or PA sector should stock these miniature speakers for versatile applications. Due to the low weight, they can easily be installed at lightweight trade fair stands in a suspended way. The miniature speakers provide a very lively sound with a surprisingly high volume level for its size."

+ 4-pole Speakon jacks

+ Workmanship

+ High efficiency

+ Price-performance ratio

+ Can be installed in any position

+ Choice of two colours

Specifications:

System: full range, closed
Bass speaker: 8 cm (3")
Tweeter: -
Power capabilities:
Music power: 60 W_MAX
Power rating: 30 W_RMS
General information:
Impedance: 8 Ω
Frequency range: 180-20,000 Hz
SPL (1 W/1 m): 88 dB
Max. rated SPL: 102 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 120x120x105 mm
Inputs: 1 x SPEAKER
Outputs: 1 x SPEAKER, par. out
Weight: 0.8 kg

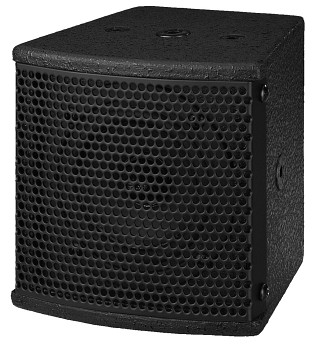

Speaker systems: Low-impedance, Miniature PA speaker system, 200 WMAX, 8 , PAB-305/SW — Enlarge

This series of miniature PA speakers is suitable for versatile applications. The full range systems with neutral sound tuning impress by a good speech intelligibility and a high-quality music reproduction, no matter whether used as unobtrusive speakers in fixed installations, as near-field monitor speakers in mobile applications or even as a small full range solution with subwoofer support. The black or white systems with a compact and unobtrusive design can ideally be integrated into existing architecture.

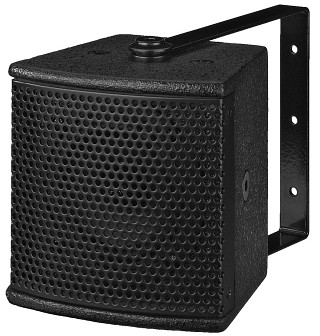

Miniature PA speaker system, 200 WMAX, 8 Ω

Very compact full range bass-reflex system
13 cm (5") full range speaker with neodymium magnet system
High-pass filter for the application from 140 Hz on with an additional subwoofer
High-quality MDF wooden cabinet in black (SW) or white (WS), with protective metal grille
Multi-purpose positioning and installation options
4 x M8 threaded inserts for suspended installation
2 x M6 threaded inserts suitable for bracket LST-40
2 x SPEAKER terminal in/out

tastenwelt 02/2014

"A very well-balanced sound in the sweet spot area. They are very suitable e.g. as keyboard monitors. The speaker systems are also well-suited for an unobtrusive PA application at smaller events. The workmanship is no doubt reliable." (Test setup: 2 x PAB-305/SW and 1 x PSUB-12AKA)

tools4music 02/2014

"Any company working at trade fairs, in the installation sector or PA sector should stock these miniature speakers for versatile applications. Due to the low weight, they can easily be installed at lightweight trade fair stands in a suspended way. The miniature speakers provide a very lively sound with a surprisingly high volume level for its size."

+ 4-pole Speakon jacks

+ Workmanship

+ High efficiency

+ Price-performance ratio

+ Can be installed in any position

+ Choice of two colours

Specifications:

System: full range, bass-reflex
Bass speaker: 13 cm (5")
Tweeter: -
Power capabilities:
Music power: 200 W_MAX
Power rating: 100 W_RMS
General information:
Impedance: 8 Ω
Frequency range: 140-18,000 Hz
SPL (1 W/1 m): 93 dB
Max. rated SPL: 109 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 147x146x152 mm
Inputs: 1 x SPEAKER
Outputs: 1 x SPEAKER, par. out
Weight: 1.2 kg

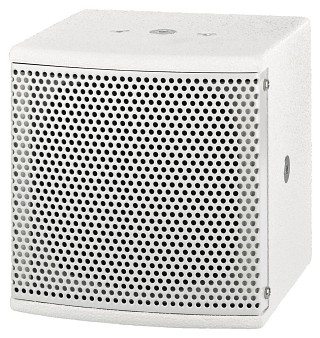

Speaker systems: Low-impedance, Miniature PA speaker system, 200 WMAX, 8 , PAB-305/WS — Enlarge

This series of miniature PA speakers is suitable for versatile applications. The full range systems with neutral sound tuning impress by a good speech intelligibility and a high-quality music reproduction, no matter whether used as unobtrusive speakers in fixed installations, as near-field monitor speakers in mobile applications or even as a small full range solution with subwoofer support. The black or white systems with a compact and unobtrusive design can ideally be integrated into existing architecture.

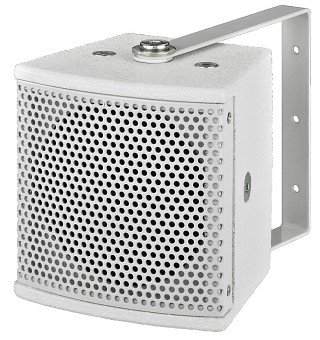

Miniature PA speaker system, 200 WMAX, 8 Ω

Very compact full range bass-reflex system
13 cm (5") full range speaker with neodymium magnet system
High-pass filter for the application from 140 Hz on with an additional subwoofer
High-quality MDF wooden cabinet in black (SW) or white (WS), with protective metal grille
Multi-purpose positioning and installation options
4 x M8 threaded inserts for suspended installation
2 x M6 threaded inserts suitable for bracket LST-40
2 x SPEAKER terminal in/out

tools4music 02/2014

"Any company working at trade fairs, in the installation sector or PA sector should stock these miniature speakers for versatile applications. Due to the low weight, they can easily be installed at lightweight trade fair stands in a suspended way. The miniature speakers provide a very lively sound with a surprisingly high volume level for its size."

+ 4-pole Speakon jacks

+ Workmanship

+ High efficiency

+ Price-performance ratio

+ Can be installed in any position

+ Choice of two colours

Specifications:

System: full range, bass-reflex
Bass speaker: 13 cm (5")
Tweeter: -
Power capabilities:
Music power: 200 W_MAX
Power rating: 100 W_RMS
General information:
Impedance: 8 Ω
Frequency range: 140-18,000 Hz
SPL (1 W/1 m): 93 dB
Max. rated SPL: 109 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 147x146x152 mm
Inputs: 1 x SPEAKER
Outputs: 1 x SPEAKER, par. out
Weight: 1.2 kg

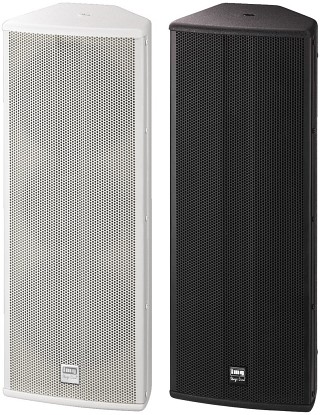

Speaker systems: Low-impedance, Universal PA speaker system, 320 WMAX, 8 , PAB-306/SW — Enlarge

Multi-purpose PA speakers for versatile applications: the 300 series from IMG Stage Line. They can be used for both fixed installations and mobile applications. Ideally suited for powerful PA applications of good level stability in rooms as well as for rearfill applications and sidefill applications. The very compact and easy-to-transport systems are also very well-suited for mobile applications when combined with suitable subwoofers, e.g. PSUB-12AKA or PSUB-15AKA and as small floor monitors.

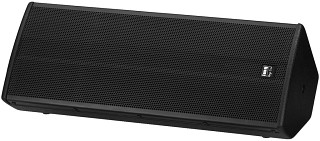

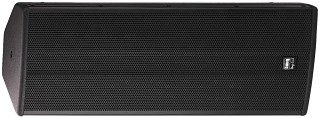

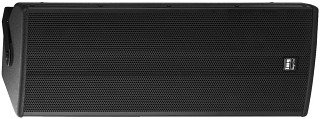

Universal PA speaker system, 320 WMAX, 8 Ω

Closed 2-way system in D-Appolito arrangement
2 x 16 cm (6.5") bass speaker, 25 mm (1") horn tweeter
Tweeter protection circuit
High-quality MDF wooden cabinets in black (SW) or white (WS), with protective metal grille
Multi-purpose positioning and installation options
4 x M8 threaded inserts for suspended installation
Supplied with mounting bracket and integrated stand sleeve
NEUTRIK SPEAKON terminal

tastenwelt 03/2013

"The small active system (PSUB-12AKA & 2 x PAB-306/SW) can be used for general applications, suitable for entertainers, smaller DJ events or piano bars. Beside its transparent sound, the system impresses by a good workmanship and its features."

+ Good price-performance ratio

EVENT Rookie 08/2012

"Any speaker with a great appearance should ideally provide a great sound. This is exactly what the PAB-306/SW and PAB-308/SW do - throughout low volume levels and high volume levels. Even though, these speaker systems are not intended for excessive volume levels, they deliver a surprisingly powerful sound. Based on subjective assessment, the PAB-306 with the two 6.5" speakers supplies a fuller, more prominent sound. However, with a slightly lower frequency range, the PAB-308 provides a little bit more bass. Each user should decide whether this will be required for the intended range of application, or not. The slim and unobtrusive appearance is also an advantage of the PAB-306. With its particularly slimline design, this speaker system is particularly suitable for the use as a small monitor speaker. It can be fully recommended for small monitoring, unobtrusive room and background music or as a fill for larger systems. Both models are available in rock 'n' roll black and gala white."

Specifications:

System: 2-way D'Appolito, closed
Bass speaker: 2 x 16 cm (6.5")
Tweeter: 25 mm (1") horn tweeter
Power capabilities:
Music power: 320 W_MAX
Power rating: 160 W_RMS
General information:
Impedance: 8 Ω
Frequency range: 65-20,000 Hz
SPL (1 W/1 m): 93 dB
Max. rated SPL: 116 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 212x565x190 mm
Inputs: 1 x NEUTRIK SPEAKON
Outputs: 1 x NEUTRIK SPEAKON, par. out
Weight: 9.5 kg

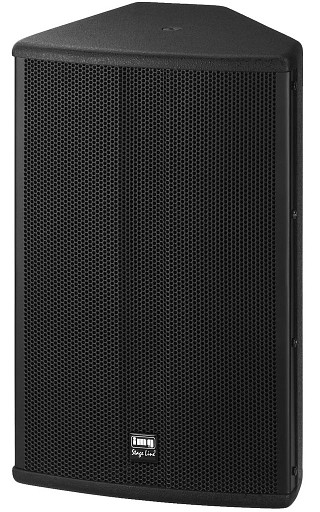

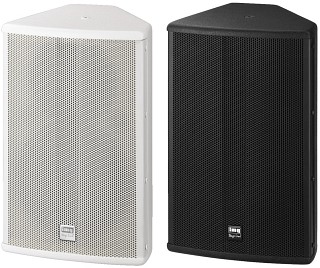

Speaker systems: Low-impedance, Universal PA speaker system, 250 WMAX, 8 , PAB-308/SW — Enlarge

Multi-purpose PA speakers for versatile applications: the 300 series from IMG Stage Line. They can be used for both fixed installations and mobile applications. Ideally suited for powerful PA applications of good level stability in rooms as well as for rearfill applications and sidefill applications. The very compact and easy-to-transport systems are also very well-suited for mobile applications when combined with suitable subwoofers, e.g. PSUB-12AKA or PSUB-15AKA and as small floor monitors.

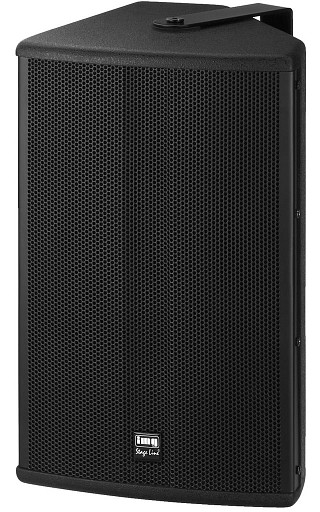

Universal PA speaker system, 250 WMAX, 8 Ω

Compact 8/2 full range bass-reflex system
20 cm (8") bass speaker, 25 mm (1") horn tweeter
Tweeter protection circuit
High-quality MDF wooden cabinet in black (SW) or white (WS), with protective metal grille
Multi-purpose positioning and installation options
4 x M8 threaded inserts for suspended installation
Supplied with mounting bracket and integrated stand sleeve
NEUTRIK SPEAKON terminal

EVENT Rookie 08/2012

"Any speaker with a great appearance should ideally provide a great sound. This is exactly what the PAB-306/SW and PAB-308/SW do - throughout low volume levels and high volume levels. Even though, these speaker systems are not intended for excessive volume levels, they deliver a surprisingly powerful sound. Based on subjective assessment, the PAB-306 with the two 6.5" speakers supplies a fuller, more prominent sound. However, with a slightly lower frequency range, the PAB-308 provides a little bit more bass. Each user should decide whether this will be required for the intended range of application, or not. The slim and unobtrusive appearance is also an advantage of the PAB-306. With its particularly slimline design, this speaker system is particularly suitable for the use as a small monitor speaker. It can be fully recommended for small monitoring, unobtrusive room and background music or as a fill for larger systems. Both models are available in rock 'n' roll black and gala white."

SOUNDCHECK 04/2013

"With the PAB-308/SW and the PSUB-15AKA, IMG Stage Line provides PA systems which, despite their small size, are capable of very high volume levels. The PAB-308/SW allows for a good intelligibility whenever speech is reproduced. You were able to understand every word sung by the vocalist, even without any help from the equalizer."

Specifications:

System: 2-way bass-reflex
Bass speaker: 20 cm (8")
Tweeter: 25 mm (1") horn tweeter
Power capabilities:
Music power: 250 W_MAX
Power rating: 125 W_RMS
General information:
Impedance: 8 Ω
Frequency range: 60-20,000 Hz
SPL (1 W/1 m): 93 dB
Max. rated SPL: 115 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 258x410x247 mm
Inputs: 1 x NEUTRIK SPEAKON
Outputs: 1 x NEUTRIK SPEAKON par. out
Weight: 7.5 kg

Speaker systems: Low-impedance, Pair of high-quality PA speakers, 30 WMAX, 16 , PAB-416/SW — Enlarge

This particularly attractive and efficient series of PA speaker systems is clearly designed for effective fixed installations, whether in restaurants and bars, hotels, for background PA applications at sport facilities, PA applications in adjoining rooms at discotheques or at conferences: these PAB speaker systems offer a perfect price-performance ratio and a high quality.

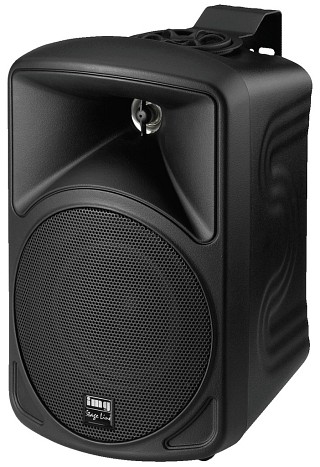

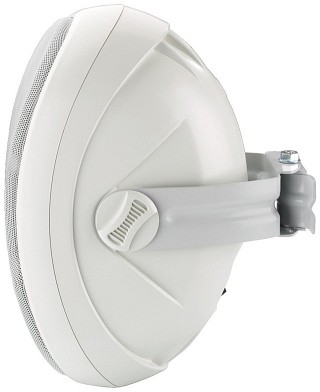

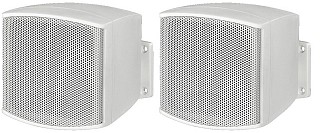

Pair of high-quality PA speakers, 30 WMAX, 16 Ω

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Very well-balanced and clear sound which also convinces with the genuine reproduction of voices and demanding music and at the same time appears to be very unobtrusive at moderate levels
Supplied with wall bracket
Due to the availability of the PAB-416/... speaker systems in 16 Ω, too, up to 8 speaker systems can be driven at one 2-channel standard amplifier with 4 Ω stability by basic parallel connection!
Pair of high-quality PA speakers
2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance (PAB-88 and PAB-68 in a bass-reflex cabinet), polypropylene bass speaker (partly with ventilated drive) and dome tweeter with horn front attachment (waveguide).

High-quality crossover networks with a perfect long-term stability, e.g. due to permanently applying film capacitors. With the series, 2 kinds of sound are on offer:

PAB-88/... and PAB-58/... impress by a really fast and brilliant sound of high efficiency and a high dynamic range and are particularly optimised for PA applications of modern music of higher volume levels.

The PAB-68/... and the four PAB-4... speaker systems of this series feature a very well-balanced and clear sound which also convinces with the genuine reproduction of voices and demanding music and at the same time appears to be very unobtrusive at moderate levels. Special features of the individual sizes:

The PAB-88 and PAB-68 speaker systems are equipped with an LED at the front for indicating the level
The PAB-4... speaker systems are also available in 16 Ω for a perfect parallel connection of up to 4 speaker systems per channel

All speaker systems of this series are supplied with wall brackets.

Specifications:

Music power: 30 W_MAX
Power rating: 20 W_RMS
Max. frequency range: 80-22,000 Hz
Impedance: 16 Ω
SPL (1 W/1 m): 87 dB
Max. rated SPL: 100 dB
Dimensions: 150x240x140 mm
Weight: 1.8 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

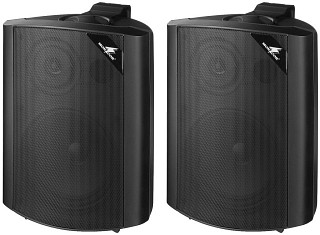

Speaker systems: Low-impedance, Pair of high-quality PA speakers, 30 WMAX, 8 , PAB-48/SW — Enlarge

This particularly attractive and efficient series of PA speaker systems is clearly designed for effective fixed installations, whether in restaurants and bars, hotels, for background PA applications at sport facilities, PA applications in adjoining rooms at discotheques or at conferences: these PAB speaker systems offer a perfect price-performance ratio and a high quality.

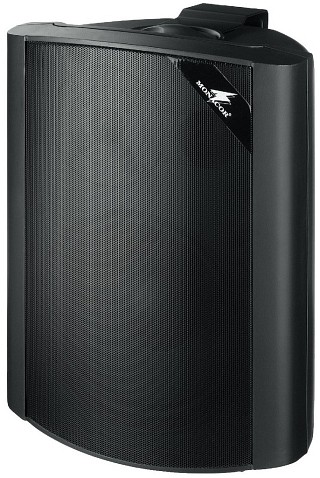

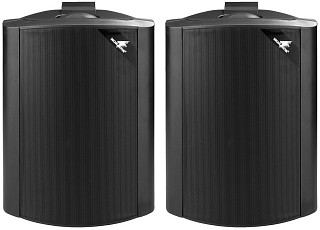

Pair of high-quality PA speakers, 30 WMAX, 8 Ω

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Very well-balanced and clear sound which also convinces with the genuine reproduction of voices and demanding music and at the same time appears to be very unobtrusive at moderate levels
Supplied with wall bracket

Specifications:

Music power: 30 W_MAX
Power rating: 20 W_RMS
Max. frequency range: 80-22,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 87 dB
Max. rated SPL: 100 dB
Dimensions: 150x240x140 mm
Weight: 1.8 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

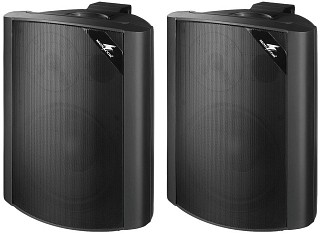

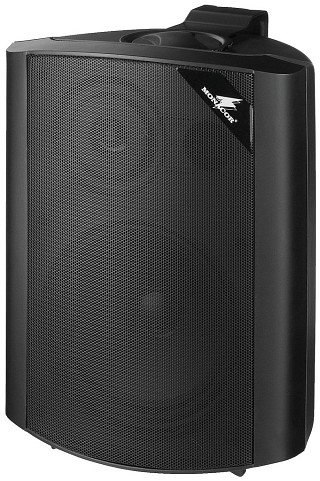

Speaker systems: Low-impedance, Pair of high-quality PA speakers, 50 WMAX, 8 , PAB-58/WS — Enlarge

This particularly attractive and efficient series of PA speaker systems is clearly designed for effective fixed installations, whether in restaurants and bars, hotels, for background PA applications at sport facilities, PA applications in adjoining rooms at discotheques or at conferences: these PAB speaker systems offer a perfect price-performance ratio and a high quality.

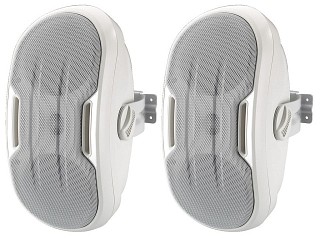

Pair of high-quality PA speakers, 50 WMAX, 8 Ω

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Impress by a really fast and brilliant sound of high efficiency and a high dynamic range and are particularly optimised for PA applications of modern music of higher volume levels
Supplied with wall bracket

Specifications:

Music power: 50 W_MAX
Power rating: 30 W_RMS
Max. frequency range: 75-22,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 92 dB
Max. rated SPL: 107 dB
Dimensions: 160x250x150 mm
Weight: 2.2 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

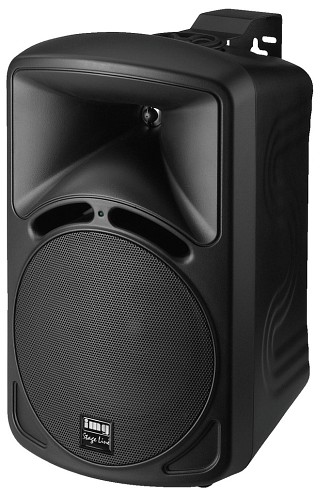

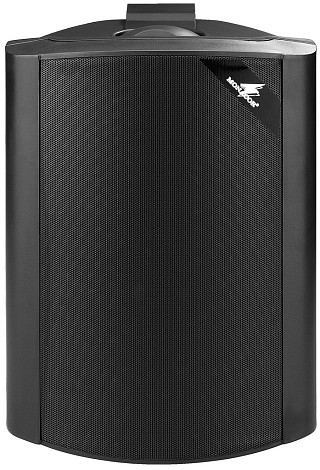

Speaker systems: Low-impedance, Pair of high-quality PA speakers, 70 WMAX, 8 , PAB-68/SW — Enlarge

This particularly attractive and efficient series of PA speaker systems is clearly designed for effective fixed installations, whether in restaurants and bars, hotels, for background PA applications at sport facilities, PA applications in adjoining rooms at discotheques or at conferences: these PAB speaker systems offer a perfect price-performance ratio and a high quality.

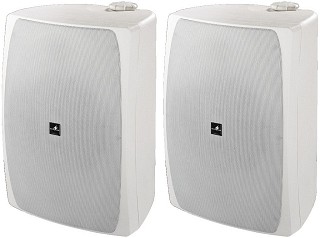

Pair of high-quality PA speakers, 70 WMAX, 8 Ω

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance, bass-reflex
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Very well-balanced and clear sound which also convinces with the genuine reproduction of voices and demanding music and at the same time appears to be very unobtrusive at moderate levels
LED at the front for indicating the level
Supplied with wall bracket

Specifications:

Music power: 70 W_MAX
Power rating: 40 W_RMS
Max. frequency range: 55-22,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 90 dB
Max. rated SPL: 106 dB
Dimensions: 210x350x200 mm
Weight: 3.9 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

Speaker systems: Low-impedance, Pair of high-quality PA speakers, 120 WMAX, 8 , PAB-88/SW — Enlarge

This particularly attractive and efficient series of PA speaker systems is clearly designed for effective fixed installations, whether in restaurants and bars, hotels, for background PA applications at sport facilities, PA applications in adjoining rooms at discotheques or at conferences: these PAB speaker systems offer a perfect price-performance ratio and a high quality.

Pair of high-quality PA speakers, 120 WMAX, 8 Ω

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance, bass-reflex
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Impress by a really fast and brilliant sound of high efficiency and a high dynamic range and are particularly optimised for PA applications of modern music of higher volume levels
LED at the front for indicating the level
Supplied with wall bracket

Specifications:

Music power: 120 W_MAX
Power rating: 75 W_RMS
Max. frequency range: 40-20,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 92 dB
Max. rated SPL: 111 dB
Dimensions: 250x420x240 mm
Weight: 7 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

Speaker systems: Low-impedance, Pair of 2-way wall-mount design speaker systems, 100 W<sub>MAX</sub>, 8 MKS-248/WS — Enlarge

Pair of 2-way wall-mount design speaker systems, 100 WMAX, 8 Ω

High-performance PA speaker systems (bass-reflex) with a perfect sound
Each equipped with 2 x 10 cm polypropylene bass-midrange speaker and one high-quality dome tweeter
Good efficiency, high power capability
White plastic with lacquered aluminium grille
Supplied with matching metal wall bracket (movable and tiltable)

Specifications:

Impedance: 8 Ω
Frequency range: 70-20,000 Hz
Crossover frequency: 4,000 Hz
Power rating: 100 W_MAX, 60 W_RMS
SPL (1 W/1 m): 89 dB
Dimensions: 150x300x190 mm
Weight: 3.4 kg
Other features:

Speaker systems: Low-impedance, Pairs of miniature speaker systems, 8 , 20 W<sub>MAX</sub>, 10 W<sub>RMS</sub> MKS-26/WS — Enlarge

Pairs of miniature speaker systems, 8 Ω, 20 WMAX, 10 WRMS

For general applications, very small dimensions
6.5 cm (2.5") full range speaker
Excellent sound quality and speech intelligibility
Black (SW) or white (WS) plastic cabinet
Turnable, movable and tiltable due to mounting bracket with ball joint
For completing the low-frequency sound reproduction, an additional subwoofer system is recommended (e.g. SOUND-100SUB)

Specifications:

Music power: 20 W_MAX
Power rating: 10 W_RMS
Max. frequency range: 150-22,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 88 dB
Max. rated SPL: 100 dB
Dimensions: 90x90x115 mm
Weight: 0.45 kg
Connections: spring-load. speaker term.
Mounting facility: Mounting plate with ball joint
System:

Speaker systems: Low-impedance, Pair of 2-way speaker systems, 90 W<sub>MAX</sub>, 4 MKS-64/SW — Enlarge

Pair of 2-way speaker systems, 90 WMAX, 4 Ω

Dome tweeter
Excellent sound quality
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Music power: 90 W_MAX
Power rating: 60 W_RMS
Max. frequency range: 60-20,000 Hz
Impedance: 4 Ω
SPL (1 W/1 m): 89 dB
Max. rated SPL: 106 dB
Dimensions: 215x290x172 mm
Weight: 3.4 kg
Connections: spring-load. speaker term.
Mounting facility: 2 x M6 thread
System:

Speaker systems: Low-impedance, Pair of 2-way speaker systems, 125 W<sub>MAX</sub>, 8 MKS-88/SW — Enlarge

Pair of 2-way speaker systems, 125 WMAX, 8 Ω

Dome tweeter
Excellent sound quality
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Music power: 125 W_MAX
Power rating: 85 W_RMS
Max. frequency range: 40-20,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 89 dB
Max. rated SPL: 107 dB
Dimensions: 270x370x220 mm
Weight: 5.4 kg
Connections: spring-load. speaker term.
Mounting facility: 2 x M6 thread
System:

Speaker systems: Low-impedance, Pair of high-performance PA speakers, 180 WMAX, 100 WRMS each speaker system, MKS-8PRO — Enlarge

State-of-the-art speaker systems of an appealing design with high-quality speaker technology: these new MKS speaker systems are suitable for all stationary PA applications where a powerful sound and outstanding level reserves are required.

Pair of high-performance PA speakers, 180 WMAX, 100 WRMS each speaker system

2-way speaker systems with ABS cabinet (bass-reflex) of modern design, 20 cm bass speaker and dome tweeter. Both the sound with a very extended frequency response and the volume capability are absolutely convincing. These speakers are valuable solutions for PA applications in function rooms or conference rooms, for presentations and on parties. Supplied with mounting brackets for wall mounting.

Specifications:

Music power: 180 W_MAX
Power rating: 100 W_RMS
Max. frequency range: 40-21,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 91 dB
Max. rated SPL: 111 dB
Dimensions: 265x374x285 mm
Weight: 5.7 kg
Connections: speaker screw terminal
Mounting facility: mounting bracket
System:

Speaker systems: Low-impedance

Miniature PA speaker system, 60 WMAX, 8 Ω, PAB-303/SW

Miniature PA speaker system, 60 WMAX, 8 Ω, PAB-303/WS

Miniature PA speaker system, 200 WMAX, 8 Ω, PAB-305/SW

Miniature PA speaker system, 200 WMAX, 8 Ω, PAB-305/WS

Universal PA speaker system, 320 WMAX, 8 Ω, PAB-306/SW

Universal PA speaker system, 250 WMAX, 8 Ω, PAB-308/SW

Pair of high-quality PA speakers, 30 WMAX, 16 Ω, PAB-416/SW

Pair of high-quality PA speakers, 30 WMAX, 8 Ω, PAB-48/SW

Pair of high-quality PA speakers, 50 WMAX, 8 Ω, PAB-58/WS

Pair of high-quality PA speakers, 70 WMAX, 8 Ω, PAB-68/SW

Pair of high-quality PA speakers, 120 WMAX, 8 Ω, PAB-88/SW

Pair of 2-way wall-mount design speaker systems, 100 W_MAX, 8 Ω MKS-248/WS

Pairs of miniature speaker systems, 8 Ω, 20 W_MAX, 10 W_RMS MKS-26/WS

Pair of 2-way speaker systems, 90 W_MAX, 4 Ω MKS-64/SW

Pair of 2-way speaker systems, 125 W_MAX, 8 Ω MKS-88/SW

Pair of high-performance PA speakers, 180 WMAX, 100 WRMS each speaker system, MKS-8PRO

Speaker systems: Low-impedance

Miniature PA speaker system, 60 WMAX, 8 Ω, PAB-303/SW

Miniature PA speaker system, 60 WMAX, 8 Ω, PAB-303/WS

Miniature PA speaker system, 200 WMAX, 8 Ω, PAB-305/SW

Miniature PA speaker system, 200 WMAX, 8 Ω, PAB-305/WS

Universal PA speaker system, 320 WMAX, 8 Ω, PAB-306/SW

Universal PA speaker system, 250 WMAX, 8 Ω, PAB-308/SW

Pair of high-quality PA speakers, 30 WMAX, 16 Ω, PAB-416/SW

Pair of high-quality PA speakers, 30 WMAX, 8 Ω, PAB-48/SW

Pair of high-quality PA speakers, 50 WMAX, 8 Ω, PAB-58/WS

Pair of high-quality PA speakers, 70 WMAX, 8 Ω, PAB-68/SW

Pair of high-quality PA speakers, 120 WMAX, 8 Ω, PAB-88/SW

Pair of 2-way wall-mount design speaker systems, 100 WMAX, 8 Ω MKS-248/WS

Pairs of miniature speaker systems, 8 Ω, 20 WMAX, 10 WRMS MKS-26/WS

Pair of 2-way speaker systems, 90 WMAX, 4 Ω MKS-64/SW

Pair of 2-way speaker systems, 125 WMAX, 8 Ω MKS-88/SW

Pair of high-performance PA speakers, 180 WMAX, 100 WRMS each speaker system, MKS-8PRO

Pair of 2-way wall-mount design speaker systems, 100 W_MAX, 8 Ω MKS-248/WS

Pairs of miniature speaker systems, 8 Ω, 20 W_MAX, 10 W_RMS MKS-26/WS

Pair of 2-way speaker systems, 90 W_MAX, 4 Ω MKS-64/SW

Pair of 2-way speaker systems, 125 W_MAX, 8 Ω MKS-88/SW
