Power supply: Universal PSUs

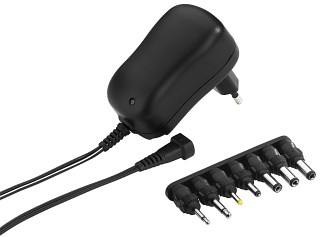

Switch-mode PSU, 1A PSS-1000E

Switch-mode PSU, 1A, with a high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
Switchable output voltage
Compact lightweight design
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Switchable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm,

Specifications:

Input voltage: 100-240 V /50-60 Hz/ 250 mA
Output voltage: 3/4.5/5/6/7.5/9/12 V DC current
Charging/output current: 1 A
Charging time: -
Trickle charge: -
Reactivation: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 43x52x76 mm
Weight: 135 g

Price per unit (Order No. mo-273130) EUR 15,14 excl. VAT: € 12.72 / $ 14.76

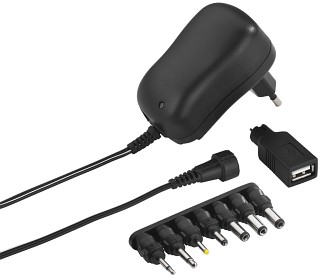

Switch-mode PSU, 1 A PSS-1000USB

Switch-mode PSU, 1 A, with plug-in adapters and additional USB output adapter.

High energy efficiency, corresponds to the EU ecodesign directive
Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
Switchable output voltage
Compact lightweight design
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Switchable polarity by reversing the supplied adapters
8 plug-in adapters: USB A jack, plugs: 2.5 mm, 3.5 mm,
hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1mm, 5.5/2.5 mm

Specifications:

Input voltage: 100-240 V /50-60 Hz/ 250 mA
Output voltage: 3/4.5/5/6/7.5/9/12 V DC current
Charging/output current: 1 A
Charging time: -
Trickle charge: -
Reactivation: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 43x53x76 mm
Weight: 135 g

Price per unit (Order No. mo-273330) EUR 15,22 excl. VAT: € 12.79 / $ 14.84

Switch-mode PSU, 1.5 A PSS-1500E

Switch-mode PSU, 1.5 A, with a high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
Switchable output voltage
Compact lightweight design
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Switchable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm,
hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

Specifications:

Input voltage: 100-240 V /50-60 Hz/350 mA
Output voltage: 3/4.5/5/6/7.5/9/12 V DC current
Charging/output current: 1.5 A
Charging time: -
Trickle charge: -
Reactivation: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 52x54x82 mm
Weight: 140 g

Price per unit (Order No. mo-273140) EUR 17,85 excl. VAT: € 15.00 / $ 17.40

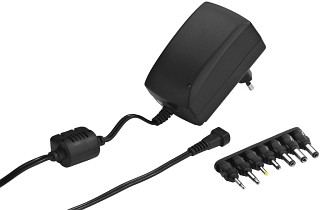

Switch-mode PSU, 1.5 A PSS-1500SV

Switch-mode PSU, 1.5 A, with a high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
Switchable output voltage
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Switchable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm,
hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

Specifications:

Input voltage: 100-240 V /50-60 Hz/500 mA
Output voltage: 9/12/13.5/15/18/20/24 V DC current
Charging/output current: 1.5 A (9-15 V) 1.2 A (18-20 V) 1 A (24 V)
Charging time: -
Trickle charge: -
Reactivation: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 52x59x95 mm
Weight: 190 g

Price per unit (Order No. mo-273450) - not available

Switch-mode PSU, 3 A max. PSS-3000E

Switch-mode PSU, 3 A max., with a high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
Switchable output voltage
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Switchable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm,
hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

Specifications:

Input voltage: 100-240 V /50-60 Hz/800 mA
Output voltage: 5/6/7.5/9/12/13.5/15 V DC current
Charging/output current: 3/3/3/3/3/2.4/2.4 A, 36 VA
Charging time: -
Trickle charge: -
Reactivation: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 50x32x115 mm
Weight: 290 g

Price per unit (Order No. mo-273150) EUR 33,00 excl. VAT: € 27.73 / $ 32.17

Switch-mode PSU, 3 A max. PSS-3000SV

Switch-mode PSU, 3 A max., with a high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
Output voltage can be selected via supplied plug-in resistors
Protected against short circuit, overload and overheating
Changeable mains plug travel adapters for Europe, Great Britain, Australia and USA/Japan
Power LED
1.8 m connection cable
Switchable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm, hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

The current values do vary, depending on the output voltage selected. Please pay attention to the table!

Specifications:

Input voltage: 100-240 V /50-60 Hz/800 mA
Output voltage: 5-24 V DC current (in 1 V steps)
Charging/output current: 3.0-1.5 A
Charging time: -
Trickle charge: -
Reactivation: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 68x40x135 mm
Weight: 343 g

Price per unit (Order No. mo-273320) EUR 40,49 excl. VAT: € 34.03 / $ 39.47

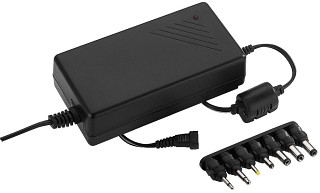

Switch-mode PSU, 5 A max. PSS-5000

Switch-mode PSU, 5 A max., high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to a low power consumption in standby mode (< 0.5 W)
Switchable output voltage
For peripheral devices like printers, scanners, etc.
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Switchable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm, hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

Note: High output current for such small dimensions and low weight.

The current values do vary, depending on the output voltage selected. Please pay attention to the table!

Specifications:

Input voltage: 100-240 V /50-60 Hz/1,320 VA
Output voltage: 6/7.5/9/12/13.5/15 V DC current
Charging/output current: 5/5/5/5/3.8/3.8 A
Charging time: -
Trickle charge: -
Reactivation: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 70x37x140 mm
Weight: 480 g

Price per unit (Order No. mo-271840) EUR 37,90 excl. VAT: € 31.85 / $ 36.94

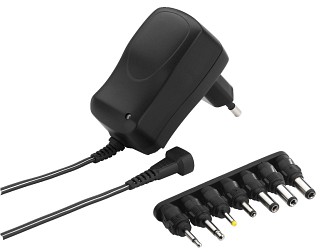

Switch-mode PSU, 0.6 A PSS-600E

Switch-mode PSU, 0.6 A, with a high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
Switchable output voltage
Compact lightweight design
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Switchable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm,
hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

Specifications:

Input voltage: 100-240 V /50-60 Hz/160 mA
Output voltage: 3/4.5/5/6/7.5/9/12 V DC current
Charging/output current: 600 mA
Charging time: -
Trickle charge: -
Reactivation: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 38x50x68 mm
Weight: 90 g

Price per unit (Order No. mo-273030) EUR 12,32 excl. VAT: € 10.35 / $ 12.01
