Horn speakers: 100 V

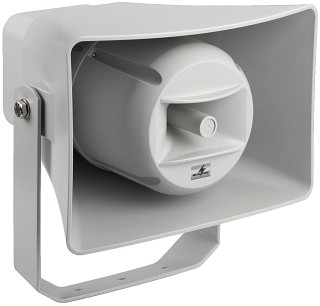

Weatherproof horn speaker (music horn), 2-way technology IT-100TW

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.

Weatherproof horn speaker (music horn), 2-way technology

100 V line technique
Weatherproof and IP66 certified
Wideband sound with clear bass frequencies
13 cm bass-midrange speaker and 25 mm (1") horn
Suitable for indoor and outdoor applications
Robust plastic housing of very low resonance
Supplied with stainless steeel mounting bracket
4 power taps, connection via screw terminals

Specifications:

Power rating: 30/15/7.5/3.75 W_RMS
Frequency range: 110-16,000 Hz
SPL (1 W/1 m): 99 dB
Radiation angle (hor./vert.): 110°/60°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 310x215x330 mm
Weight: 4.7 kg
Special feature: IP66, ABS, 2-way
Replacement voice coil: -

Price per unit (Order No. mo-162570) EUR 279,58 excl. VAT: € 234.94 / $ 272.53

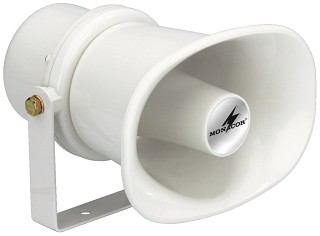

Horn speaker IT-110

Horn speaker

100 V line technique
Weatherproof and IP66 tested
Protected against powerful water jets
Power selector switch
For open-air events, industrial use, in workshops

Specifications:

Power rating: 10/5/3/1 W_RMS
Frequency range: 315-12,500 Hz
SPL (1 W/1 m): 105 dB
Radiation angle (hor./vert.): no data
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 175x130x185 mm
Weight: 1.1 kg
Special feature: IP66, ABS plastic
Replacement voice coil: -

Price per unit (Order No. mo-161690) EUR 70,66 excl. VAT: € 59.38 / $ 68.88

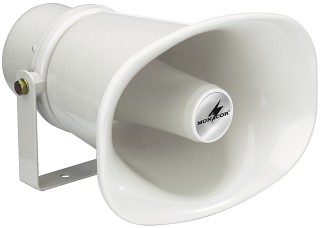

Weatherproof horn speaker IT-115

Weatherproof horn speaker

100 V line technique
Weatherproof and IP66 tested
Protected against powerful water jets
Power selector switch
For open-air events, industrial use, in workshops

Specifications:

Power rating: 15/10/5/3/1 W_RMS
Frequency range: 280-12,500 Hz
SPL (1 W/1 m): 108 dB
Radiation angle (hor./vert.): no data
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 225x160x235 mm
Weight: 1.3 kg
Special feature: IP66, ABS plastic
Replacement voice coil: -

Price per unit (Order No. mo-161700) EUR 83,68 excl. VAT: € 70.32 / $ 81.57

Weatherproof horn speaker IT-130

Weatherproof horn speaker

100 V line technique
Weatherproof and IP66 tested
Protected against powerful water jets
Power selector switch
For open-air events, industrial use, in workshops

Specifications:

Power rating: 30/15/10/5/3/1 W_RMS
Frequency range: 250-16,000 Hz
SPL (1 W/1 m): 109 dB
Radiation angle (hor./vert.): no data
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 290x215x260 mm
Weight: 1.7 kg
Special feature: IP66, ABS plastic
Replacement voice coil: -

Price per unit (Order No. mo-161710) EUR 100,80 excl. VAT: € 84.71 / $ 98.26

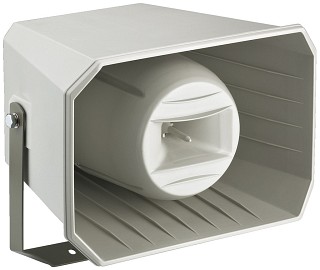

Weatherproof horn speaker (music horn), 2-way technology IT-250TW

Weatherproof horn speaker (music horn), 2-way technology

100 V line technique or 8 Ω operation
IP66 certified
High-performance music horn at an attractive price
16 cm bass-midrange speaker and 25 mm (1") horn
Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
ABS plastic housing
Supplied with mounting bracket and stainless steel screws
6 power taps, connection via screw terminal strip

Specifications:

Power rating: 50/25/12.5/9/4.5/3.5 W_RMS(100 V) 50 W_RMS (8 Ω)
Frequency range: 150-15,000 Hz
SPL (1 W/1 m): 97 dB
Radiation angle (hor./vert.): 100°/60°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 370x270x305 mm
Weight: 4.1 kg
Special feature: IP66, ABS, 2-way
Replacement voice coil: -

Price per unit (Order No. mo-163190) EUR 210,10 excl. VAT: € 176.55 / $ 204.80

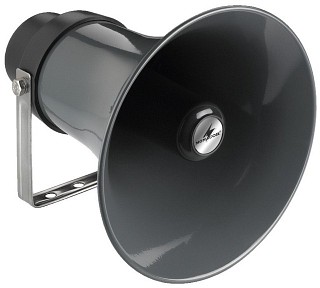

Weatherproof horn speaker IT-30

Weatherproof horn speaker

100 V line technique
Weatherproof and IP66 tested
Protected against powerful water jets
Suitable for general indoor and outdoor applications
Aluminium housing
Mounting bracket and screws made of stainless steel
4-step power selector switch

Specifications:

Power rating: 20/15/10/5 W_RMS
Frequency range: 250-10,000 Hz
SPL (1 W/1 m): 108.5 dB
Radiation angle (hor./vert.): 80°/80°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: Ø 265 mm x 310 mm
Weight: 2.3 kg
Special feature: IP66, aluminium
Replacement voice coil: IT-230/VC

Price per unit (Order No. mo-160670) EUR 88,54 excl. VAT: € 74.40 / $ 86.31

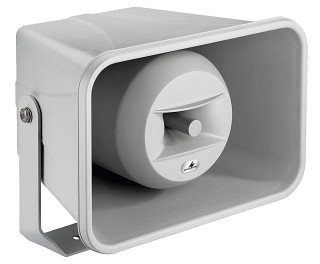

Weatherproof horn speaker (music horn), 2-way technology IT-300TW

Weatherproof horn speaker (music horn), 2-way technology

100 V line technique with high power taps
Weatherproof and IP66 certified
Very wideband sound with a distinct bass volume
16 cm bass-midrange speaker and 25 mm (1") horn
Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
Robust light grey ABS plastic housing
Supplied with mounting bracket and stainless steel screws
Connection via screw terminal strip with 4 power taps

Specifications:

Power rating: 30/15/7.5/3.75 W_RMS
Frequency range: 100-15,000 Hz
SPL (1 W/1 m): 101 dB
Radiation angle (hor./vert.): 100°/60°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 370x250x300 mm
Weight: 4.7 kg
Special feature: IP66, ABS, 2-way
Replacement voice coil: -

Price per unit (Order No. mo-162230) EUR 325,50 excl. VAT: € 273.53 / $ 317.29

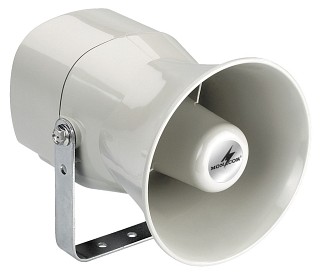

Weatherproof horn speaker IT-33

Weatherproof horn speaker

100 V line technique
IP64 tested, splashproof
White ABS housing (self-extinguishing, complies with standard UL 94V-0)
Particularly high power capability in relation to the size of the speaker
Suitable for general indoor and outdoor applications
Integrated high-pass filter for optimising the sound and stability

Specifications:

Power rating: 25/12.5/6.25 W_RMS
Frequency range: 500-13,000 Hz
SPL (1 W/1 m): 107 dB
Radiation angle (hor./vert.): 90°/90°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: Ø 130 mm x 175 mm
Weight: 1.8 kg
Special feature: IP64, self-extinguishing ABS
Replacement voice coil: -

Price per unit (Order No. mo-162190) EUR 100,80 excl. VAT: € 84.71 / $ 98.26

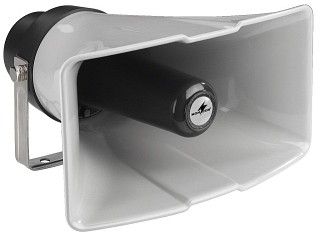

Weatherproof horn speaker IT-35

Weatherproof horn speaker

100 V line technique
Weatherproof and IP66 tested
Protected against powerful water jets
Suitable for general indoor and outdoor applications
Robust plastic housing
Mounting bracket and screws made of stainless steel
5-step power selector switch

Specifications:

Power rating: 25/20/15/10/5 W_RMS
Frequency range: 250-10,000 Hz
SPL (1 W/1 m): 108 dB
Radiation angle (hor./vert.): 110°/52°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 300x180x315 mm
Weight: 2.5 kg
Special feature: IP66, plastic
Replacement voice coil: IT-230/VC

Price per unit (Order No. mo-160870) EUR 97,48 excl. VAT: € 81.92 / $ 95.02

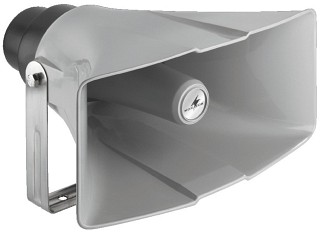

Weatherproof horn speaker IT-40

Weatherproof horn speaker

100 V line technique
Weatherproof and IP66 tested
Protected against powerful water jets
Suitable for general indoor and outdoor applications
Robust plastic housing
Mounting bracket and screws made of stainless steel
5-step power selector switch

Specifications:

Power rating: 40/30/20/10/5 W_RMS
Frequency range: 180-7,000 Hz
SPL (1 W/1 m): 113 dB
Radiation angle (hor./vert.): 100°/45°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 400x200x420 mm
Weight: 3.9kg
Special feature: IP66, plastic
Replacement voice coil: IT-40/VC

Price per unit (Order No. mo-161360) EUR 133,20 excl. VAT: € 111.93 / $ 129.84

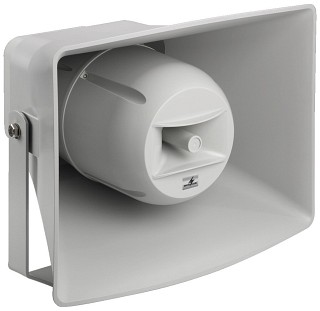

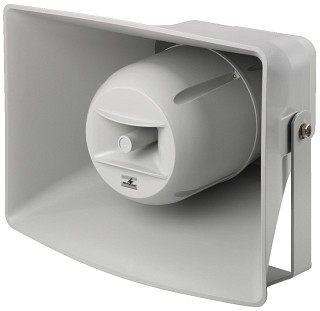

Weatherproof horn speaker (music horn), 2-way technology IT-400TW

Weatherproof horn speaker (music horn), 2-way technology

100 V line technique with very high tapping power
Weatherproof and IP66 certified
Very wideband sound with a distinct bass volume, even at very high volume levels
16 cm bass-midrange speaker and 25 mm (1") horn
Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
Robust plastic housing with extra low resonance and very high rear dampening
Supplied with mounting bracket and screws made of stainless steel
Connection via screw terminals with 4 power taps

Specifications:

Power rating: 60/30/15/7.5 W_RMS
Frequency range: 100-15,000 Hz
SPL (1 W/1 m): 101 dB
Radiation angle (hor./vert.): 100°/60°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 420x335x400 mm
Weight: 7.1 kg
Special feature: IP66, ABS, 2-way
Replacement voice coil: -

Price per unit (Order No. mo-162580) EUR 385,72 excl. VAT: € 324.13 / $ 376.00

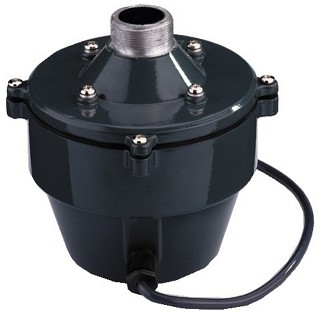

Weatherproof horn driver KU-616T

Weatherproof horn driver

100 V line technique
Protected against powerful water jets
Power selector switch
Matching the horns SK-22 and SK-159
3.5 cm (1 3/8 ") mounting flange
55 cm connection cable

Specifications:

Power rating: 60 W_MAX 40/30/20/10/5 W_RMS
Frequency range: 160-6,500 Hz
SPL (1 W/1 m): 112 dB
Radiation angle (hor./vert.): -
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: Ø 150 mm x 136 mm
Weight: 2.3 kg
Special feature: IP66
Replacement voice coil: KU-616T/VC

Price per unit (Order No. mo-160710) EUR 64,01 excl. VAT: € 53.79 / $ 62.40

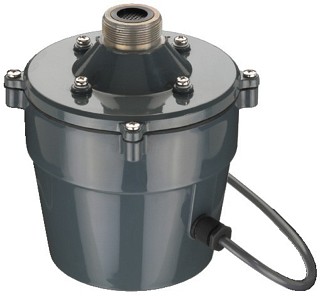

Weatherproof horn driver KU-916T

Weatherproof horn driver

100 V line technique
Protected against powerful water jets
Power selector switch
Matching the horns SK-22 and SK-159
3.5 cm (1 3/8 ") mounting flange
60 cm connection cable

Specifications:

Power rating: 90 W_MAX 60/50/40/30/20/10 W_RMS
Frequency range: 160-7,000 Hz
SPL (1 W/1 m): 113 dB
Radiation angle (hor./vert.): -
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: Ø 150 mm x 158 mm
Weight: 2.8 kg
Special feature: IP66
Replacement voice coil: KU-916T/VC

Price per unit (Order No. mo-161610) EUR 75,53 excl. VAT: € 63.47 / $ 73.63

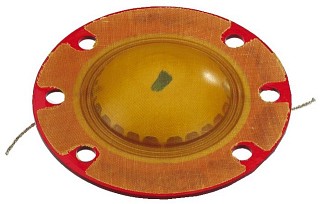

Replacement voice coil IT-230/VC

Replacement voice coil For horn systems.

Specifications:

Suitable for:: IT-20, IT-30, IT-35, UHC-30, NR-33KS

Price per unit (Order No. mo-160750) EUR 9,18 excl. VAT: € 7.71 / $ 8.95

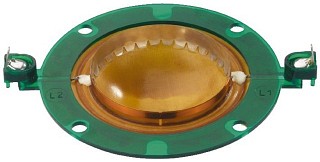

Replacement Voice Coils KU-616T/VC

Replacement Voice Coils For horn systems.

Replacement voice coil,

Specifications:

Suitable for:: KU-616T

Price per unit (Order No. mo-160720) EUR 10,97 excl. VAT: € 9.22 / $ 10.69

Replacement voice coil KU-916T/VC

Replacement voice coil For horn systems.

Replacement voice coils,

Specifications:

Suitable for:: KU-916T

Price per unit (Order No. mo-161620) EUR 10,97 excl. VAT: € 9.22 / $ 10.69

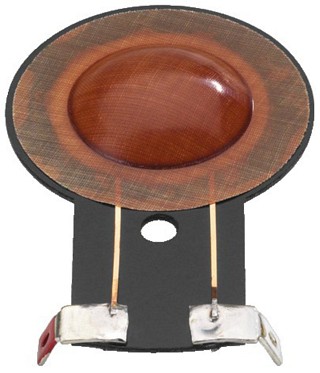

Replacement voice coils of high-quality workmanship, suitable for different horn speakers. MHD-152/VC

Replacement voice coils of high-quality workmanship, suitable for different horn speakers.

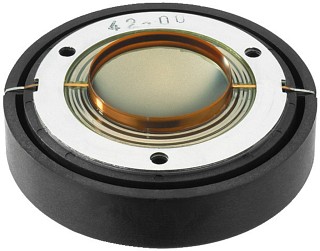

Replacement voice coil, high-quality workmanship, for MHD-152.

Specifications:

Suitable for: MHD-152

Price per unit (Order No. mo-129200) EUR 46,49 excl. VAT: € 39.07 / $ 45.32

Replacement voice coils of high-quality workmanship, suitable for different horn speakers. MHD-172/VC

Replacement voice coils of high-quality workmanship, suitable for different horn speakers.

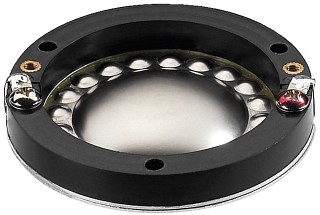

Replacement voice coil, high-quality workmanship, for MHD-172, MHD-170, MHD-142 and MHD-140.

Specifications:

Suitable for: MHD-172, MHD-170, MHD-142, MHD-140

Price per unit (Order No. mo-122040) - not available

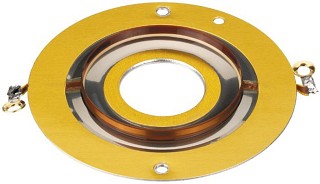

Replacement voice coils, suitable for different ring radiator tweeters and horn tweeters. MHD-540/VC

Replacement voice coils, suitable for different ring radiator tweeters and horn tweeters.

Replacement voice coil, for MHD-540.

Specifications:

Suitable for: MHD-540

Price per unit (Order No. mo-129370) - not available

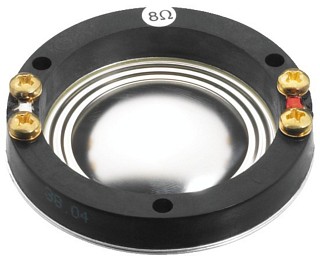

Replacement voice coil MRD-140/VC

Replacement voice coil, high-quality workmanship, for MRD-140.

Price per unit (Order No. mo-128500) - not available

Replacement voice coil MRD-200/VC

Replacement voice coil, high-quality workmanship, for MRD-200.

Price per unit (Order No. mo-128510) - not available

Replacement voice coils of high-quality workmanship, suitable for different horn speakers. MHD-1255/VC

Replacement voice coils of high-quality workmanship, suitable for different horn speakers.

Replacement voice coil, high-quality workmanship, for MHD-55 and MHD-120.

Specifications:

Suitable for: MHD-55, MHD-120

Price per unit (Order No. mo-121740) EUR 13,19 excl. VAT: € 11.08 / $ 12.86

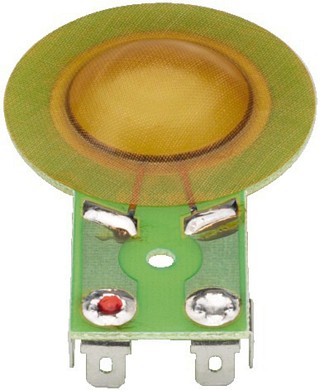

Replacement voice coils, suitable for different ring radiator tweeters and horn tweeters. MHD-230/VC

Replacement voice coils, suitable for different ring radiator tweeters and horn tweeters.

Replacement voice coil, for MHD-230/RD, MHD-230/SQ and MHD-240.

Specifications:

Suitable for: MHD-230/RD, MHD-230/SQ, MHD-240

Price per unit (Order No. mo-128480) - not available
