Measuring technology: Measuring equipment

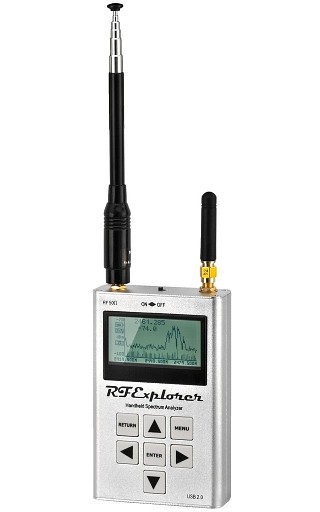

RF spectrum analyser, 15-2,700 MHz RF-EXPLORER/3

RF spectrum analyser, 15-2,700 MHz, in a compact aluminium housing with two antennas (SMA connection) for the different frequency ranges, among other things, for preventing frequency collisions when setting up radio links in the frequency range mentioned above.

Real-time monitoring of the frequency range used with indication of frequency and level (dBm and dBµV)
Backlit high-contrast graphic display (128x64 pixels)
Automarker function and manual marker positioning for setting an individual carrier frequency
Special Wi-Fi analyser with display of 13 WLAN channels
Max hold function for a reliable detection of ultra-short RF carrier frequencies (additional modes: normal, max., average, overwrite)
Mini USB 2.0 interface for connecting to a PC or laptop as well as for charging the built-in rechargeable lithium polymer battery (860 mAh)
Supplied with transport bag and USB cable
Client software with real-time analysis for Windows* XP/Vista/Win7/Win8 (32-bit or 64-bit versions) can be downloaded at www.monacor.com
Dimensions: 71x122x25 mm
Weight: 200 g

proaudio.de 02/2013

"All in all, the RF-EXPLORER/3 can highly be recommended to anyone using wireless products. Of course, there are also other units in the range of scanners, but no other device is as mobile, functional and flexible, yet still available at such an attractive price. Thus, it can absolutely be recommended to anyone using wireless products."

Price per unit (Order No. mo-254670) EUR 389,00 excl. VAT: € 326.89 / $ 379.19

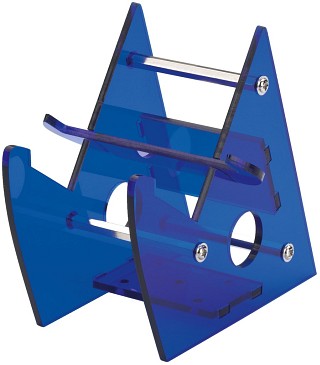

Holder RF-HOLDER

Holder, for the RF spectrum analyser RF-EXPLORER/3.

Blue plastic, 3 mm thick
Supplied as an assembly kit
Dimensions: 90x105x90 mm (assembled)
Weight: 90 g

Supplied without unit.

Price per unit (Order No. mo-250020) EUR 28,48 excl. VAT: € 23.93 / $ 27.76

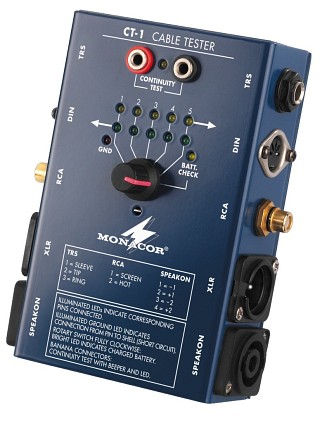

Cable tester CT-1

Cable tester

For audio cables, microphone cables, speaker cables and adapter cables with the following connectors:

6.3 mm TRS (mono/stereo)
5-pole DIN
RCA
XLR (unbal./bal.)
Speakon (2-pole/4-pole)

LED fault indication, can be set for each contact via selector switch
Acoustic continuity test via 2 optional test leads
Please order matching test leads, e.g. CC-311A, together with this item
Battery status LED
Robust metal housing
Power supply via 9 V battery (not supplied)
Dimensions: 112x55x138 mm

Price per unit (Order No. mo-291960) - not available

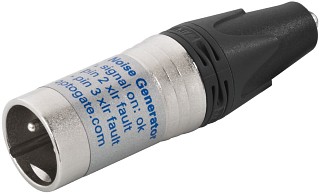

XLR function tester, 48 V CTG-1NOISE

XLR function tester, 48 V, with integrated pink noise generator.

For an easy and fast functional test of balanced microphone cables or of microphone inputs on stage
Visual fault indication via LEDFlashing twice: pin 2 of XLR cable is defective
Flashing three times: pin 3 of XLR cable is defective
LED is off: pin 1 or phantom power is defective
LED is lighting up permanently: faultless cable, noise generator
3-pole NEUTRIK XLR plug
Power supply via phantom power: 9-48 V
Output amplitude: 100 mVpp
Dimensions: Ø 19 mm x 74 mm
Weight: 32 g

SOUNDCHECK 05/2013

"Useful tools for practical applications. The CTG testers (CTG-1NOISE & CTG-1SINE) are beneficial for stagehands who frequently have to search for the reason why there is no incoming signal."

+ Extra compact size

+ Reliable operation

+ Visual and acoustic indication

tools4music 03/2012

"The optogate phantom power line tester and the pink noise generator are ideally suited for applications on stage and in front of it. Anyone insisting on useful tools will love it. Totally recommendable. With both test candidates, a line check is far quicker and equally reliable. The visual and acoustic indications ensure a quick and reliable operation on stage - an absolute advantage."

Price per unit (Order No. mo-292050) EUR 42,08 excl. VAT: € 35.36 / $ 41.02

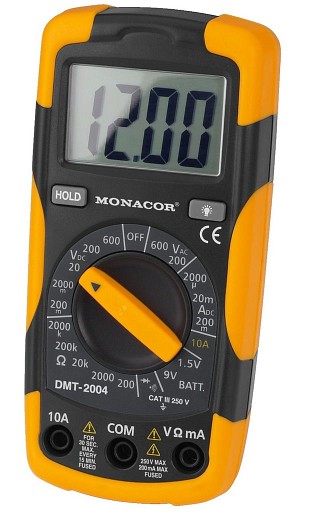

Digital multimeter DMT-2004

Digital multimeter, for general applications.

Resolution: 2,000 digits
Voltage measurement: up to 250 V DC current /
Current measurement: up to 10 A DC current
Resistance measurement: up to 2 MΩ
Battery test for 9 V battery and 1.5 V batteries
Acoustic continuity test
Diode test
Data hold (storage of measured value)
LCD with selectable backlight
Overload protection
Supplied with test leads

Specifications:

Display: 21 mm LCD, 3 ½ digits
Range selection: manual
Measuring ranges:
Voltage: 5 ranges 200 mV DC current - 250 V DC current 200 mV - 250 V
Current: 4 ranges 2,000 µA DC current - 10 A DC current
Resistance: 5 ranges 200 Ω-2,000 kΩ
Frequency: -
Capacitance: -
Temperature: -
Battery test: 9 V, 1.5 V
Admiss. ambient temp.: 0-50 °C
Dimensions: 68x138x37 mm incl. rubber holster
Weight: 200 g
Power supply: 9 V battery (not supplied)
Special features: hold function, diode test, continuity test, battery test

Price per unit (Order No. mo-292030) EUR 34,11 excl. VAT: € 28.66 / $ 33.25

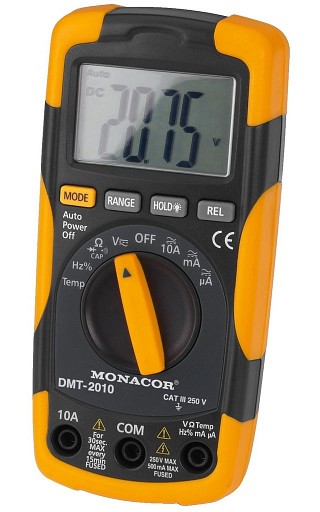

Digital multimeter DMT-2010

Digital multimeter, for general applications.

Autoranging for faster measurements
Resolution: 4,000 digits
Voltage measurement: up to 250 V DC current /
Current measurement: up to 10 A DC current /
Frequency measurement: up to 10 MHz
Resistance measurement: up to 40 MΩ
Capacitance measurement: up to 100 µF
Temperature measurement: -20 °C to +760 °C
Acoustic continuity test
Diode test
Data hold (storage of measured value)
Reference value measurements
LCD with selectable backlight
Automatic switch-off
Overload protection
Supplied with test leads

Specifications:

Display: 21 mm LCD, 3 ¾ digits
Range selection: automatic, manual
Measuring ranges:
Voltage: 5 ranges 400 mV DC current - 250 V DC current 400 mV - 250 V
Current: 5 ranges 400 µA DC current - 10 A DC current 400 µA - 10 A
Resistance: 6 ranges 400 Ω-40 MΩ
Frequency: 8 ranges 5 Hz - 10 MHz
Capacitance: 4 ranges 40 nF - 100 µF
Temperature: 1 range -20 °C to +760 °C -4 °F to +1400 °F type K sensor
Battery test: -
Admiss. ambient temp.: 0-50 °C
Dimensions: 68x138x37 mm incl. rubber holster
Weight: 205 g
Power supply: 9 V battery (not supplied)
Special features: hold function, diode test and continuity test

Price per unit (Order No. mo-292040) EUR 60,20 excl. VAT: € 50.59 / $ 58.68

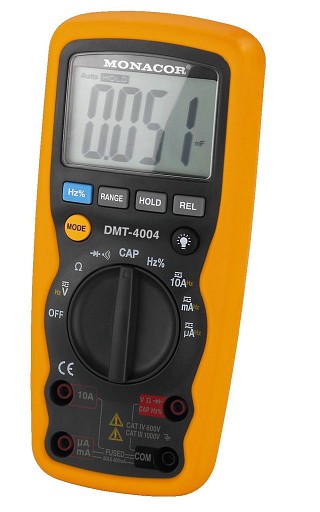

Digital multimeter DMT-4004

Digital multimeter, for professional applications.

Protected against dust and water according to IP67 when test jacks are covered
Autoranging for faster measurements
Resolution: 4,000 digits, basic accuracy: 0.5 %
Voltage measurement: up to 1,000 V DC current /
Current measurement: up to 10 A DC current /
Frequency measurement: up to 10 MHz
Resistance measurement: up to 40 MΩ
Capacitance measurement: up to 200 µF
Acoustic continuity test
Diode test
Data hold (storage of measured value)
Reference value measurements
LCD with selectable backlight
Automatic switch-off
Overload protection
Supplied with test leads and protective bag

Specifications:

Display: 29 mm LCD, 3 ¾ digits
Range selection: automatic, manual
Measuring ranges:
Voltage: 5 ranges 400 mV DC current - 1,000 V DC current 400 mV - 1,000 V
Current: 5 ranges 400 µA DC current - 10 A DC current 400 µA - 10 A
Resistance: 6 ranges 400 Ω-40 MΩ
Frequency: 7 ranges 9,999 Hz - 9,999 MHz
Capacitance: 6 ranges 4 nF - 200 µF
Temperature: -
Battery test: -
Admiss. ambient temp.: 0-50 °C
Dimensions: 83x180x54 mm incl. rubber holster
Weight: 490 g
Power supply: 9 V battery (not supplied)
Special features: diode test and continuity test, hold function, IP67

Price per unit (Order No. mo-291970) EUR 79,90 excl. VAT: € 67.14 / $ 77.89

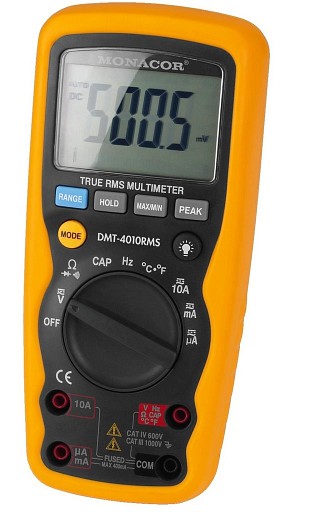

Digital multimeter DMT-4010RMS

Digital multimeter, for professional applications.

True RMS measuring method
Protected against dust and water according to IP67 when test jacks are covered
Autoranging for faster measurements
Resolution: 4,000 digits
Additional bar graph display
Voltage measurement: up to 1,000 V DC current /
Current measurement: up to 10 A DC current /
Frequency measurement: up to 10 MHz
Resistance measurement: up to 40 MΩ
Capacitance measurement: up to 40 mF
Temperature measurement: -20 °C to +760 °C
Acoustic continuity test
Diode test
Data hold (storage of measured value)
Peak hold
Recording of max. value and min. value
LCD with selectable backlight
Automatic switch-off
Overload protection
Supplied with test leads and protective bag

Specifications:

Display: 21 mm LCD, 3¾ digits, bar graph display
Range selection: automatic, manual
Measuring ranges:
Voltage: 5 ranges 400 mV DC current - 1,000 V DC current 400 mV - 1,000 V
Current: 5 ranges 400 µA DC current - 10 A DC current 400 µA - 10 A
Resistance: 6 ranges 400 Ω-40 MΩ
Frequency: 4 ranges 4 kHz - 10 MHz
Capacitance: 8 ranges 4 nF - 40 mF
Temperature: 1 range -20 °C to +760 °C -4 °F to +1,400 °F type K sensor
Battery test: -
Admiss. ambient temp.: -10 °C to +50 °C
Dimensions: 83x180x54 mm incl. rubber holster
Weight: 430 g
Power supply: 9V battery (not supplied)
Special features: peak, min/max, hold, IP67

Price per unit (Order No. mo-292020) EUR 139,70 excl. VAT: € 117.39 / $ 136.18

Soft carrying bag DMT-4CC

Soft carrying bag, for digital and analog multimeters.

Soft artificial leather
With wrist strap and inner lining
Inside dimensions: 110x190x50 mm

Price per unit (Order No. mo-070640) EUR 7,97 excl. VAT: € 6.70 / $ 7.77

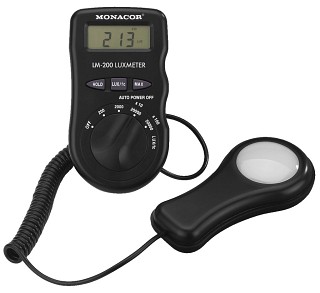

Digital luxmeter LM-200

Digital luxmeter, for measuring the luminous intensity.

0-50,000 lx, resolution: 0.1 lx
4 measuring ranges: 200/2,000/20,000/50,000 lx
Functions max. and hold
Selectable: lx/fc (foot-candle)
LCD, 3½ digits
Automatic switch-off
Separate photo sensor with helix cable
Supplied with carrying bag
Power supply via battery 1 x 12 V DC current , type A23 (not supplied)
Meter: 65x25x188 mm, 93 g
Photo sensor: 60x27x115 mm, 52 g

Price per unit (Order No. mo-292010) EUR 53,60 excl. VAT: € 45.04 / $ 52.25

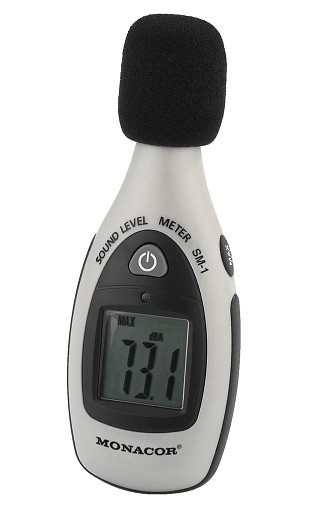

Sound level meter SM-1

Sound level meter, one-hand operation.

Electret microphone cartridge
A-weighting
Functions max hold and min. hold
Backlit LCD, switches off automatically
6.3 mm (¼") thread

Specifications:

Display: 3 digits, LCD, 17 mm
Frequency range: 100-8,000 Hz
Measuring range: 40-130 dB
Measuring range, low: -
Measuring range, high: -
Resolution: 0.1 dB
Accuracy: ±3.5 dB (94 dB/1 kHz)
Output V : -
Output V DC current: -
Admiss. ambient temp.: 0-40 °C
Power supply: 9 V battery (not supplied)
Dimensions: 53x130x34 mm
Weight: 130 g

Price per unit (Order No. mo-291980) EUR 67,23 excl. VAT: € 56.50 / $ 65.54

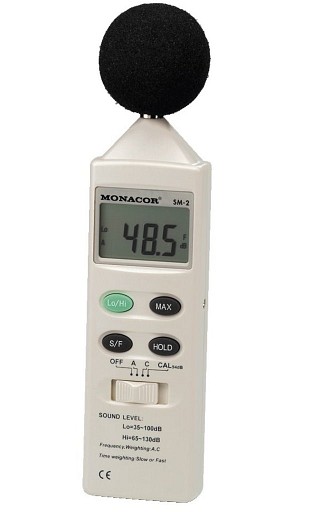

Sound level meter SM-2

Sound level meter, (class 2), one-hand operation.

Electret microphone cartridge
Functions max hold and data hold
A-weighting and C-weighting, slow and fast
Additional output for V DC current / via 3.5 mm jack
Supplied with practical nylon bag

Specifications:

Display: 3½ digits, LCD, 17 mm
Frequency range: 31.5-8,000 Hz
Measuring range:
Measuring range, low: 35-100 dB
Measuring range, high: 65-130 dB
Resolution: 0.1 dB
Accuracy: ±1.5 dB (94 dB/1 kHz)
Output V : low: 38 mV/dB, 100 Ω high: 8.3 mV/dB, 100 Ω
Output V DC current: 10 mV/dB, 100 Ω
Admiss. ambient temp.: 0-40 °C
Power supply: 9 V battery (not supplied)
Dimensions: 63x253x30 mm
Weight: 250 g

Price per unit (Order No. mo-291870) EUR 185,40 excl. VAT: € 155.80 / $ 180.73

Non-contact voltage tester VD-100

Non-contact voltage tester

Induction detector for voltages of 100-600 V /50-60 Hz
Audible alarm and indicator light
CAT III 1,000 V
Integrated LED lamp
Power supply via 2 x 1.5 V batteries AAA size (not supplied)
Dimensions: Ø 26 mm x 176 mm
Weight: 30 g

Price per unit (Order No. mo-291990) EUR 22,59 excl. VAT: € 18.98 / $ 22.02

512-channel DMX tester DMX-1TEST

512-channel DMX tester

For testing signals of DMX control units like DMX mixers (DMX IN MODE)
For testing DMX end units like scanner moving heads and DMX dimmers (DMX OUT MODE)
Integrated XLR cable tester
Key-controlled menu
Backlit LCD in 2 rows
Two momentary push-buttons for addressing individual channels or channel ranges in the DMX OUT MODE
DMX level: 0-100 %, 0-255 or 00 h-FFh, to be adjusted via two momentary push-buttons
Fade function (slider): 0-100 %/100-0 % for individual channels or channel ranges
Automatic power-off function
DMX input: 3-pole XLR plug
DMX output: 3-pole XLR jack
Power supply via supplied plug-in PSU or 4 x 1.2 V NIMH rech. battery AA size (not supplied)
Dimensions: 141x58x105 mm
Weight: 700 g

SOUNDCHECK 02/2007

"This unit easily identifies faults and defects in the signal range and checks functions of the unit. The values indicated are absolutely exact and reliable. This unit is reliable at all times and should be part of the standard equipment of every lighting system."

Price per unit (Order No. mo-382740) EUR 239,40 excl. VAT: € 201.18 / $ 233.36
