Signal optimisers: Splitters and transformers

Professional stereo line transformer FGA-102

Professional stereo line transformer, for reducing signal interference and hum loops which may occur, e.g. when connecting PC sound cards to hi-fi systems or mixers.

Galvanically isolated inputs and outputs
Gold-plated RCA connections (600 Ω)
Frequency range: 20-20,000 Hz
Robust metal housing with very good shielding qualities, suitable for stage applications
Dimensions: 125x55x75 mm
Weight: 650 g

SOUNDCHECK 07/2007 on the FGA-102, FGA-202, LC-31, MC-31 and LSP-102:

"Every musician or sound engineer should have these little helpers in their toolbox. They impress by their unobtrusiveness. Both the robust metal housing and the functionality of these transformers allow to solve many problems on stage or in the studio at a reasonable price."

tools4music 06/2009 on the LSP-102, LC-31, FGA-102, FGA-202, DIB-102

"Recommendable and fit for on-the-road applications. An attractively priced little audio aid, perfect for the 'ever accompanying' tool case."

Price per unit (Order No. mo-251650) EUR 69,00 excl. VAT: € 57.98 / $ 67.26

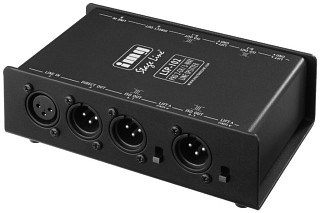

2-channel 3-way line splitter LSP-102

2-channel 3-way line splitter, (2 inputs/6 outputs), e.g. for connecting one mixer to several amplifiers.

1 balanced XLR input (600 Ω) for each channel
2 galvanically isolated, balanced XLR outputs (600 Ω) with ground lift switch for each channel
1 balanced XLR direct output for each channel
Frequency range: 20-20,000 Hz
Robust metal housing with very good shielding qualities, suitable for stage applications
Dimensions: 160x55x105 mm
Weight: 980 g

Price per unit (Order No. mo-251680) EUR 80,78 excl. VAT: € 67.88 / $ 78.74

3-way microphone combiner MC-31

3-way microphone combiner, (3 inputs/1 output), for connecting 3 microphones to e.g. one microphone input of a mixer.

Balanced XLR connections (200 Ω)
Frequency range: 20-20,000 Hz
Also suitable for microphones with phantom power
Robust metal housing with very good shielding qualities, suitable for stage applications
Dimensions: 125x55x75 mm
Weight: 570 g

Price per unit (Order No. mo-251690) EUR 42,00 excl. VAT: € 35.29 / $ 40.94

2-channel low-noise microphone preamplifier MPA-202

2-channel low-noise microphone preamplifier

2 microphone inputs, XLR, bal.
Gain control, 11 steps, 20-70 dB
2 level controls ±5 dB
LED green/red for indicating operation/peak
Phantom power +12 V, can be switched on additionally
Microphone phase can be switched for each channel
Lo cut 15-240 Hz, continuously adjustable
Subsonic filter 15 Hz, 18 dB/oct.
2 line outputs, XLR bal.
2 line outputs, RCA unbal.

Specifications:

Frequency range: 20-20,000 Hz
Input sensitivity: 0.16-150 mV, switchable
Input impedance:
Mic: 4.4 kΩ bal., 2.2 kΩ unbal.
Stereo line: -
Outputs:
Line, bal.: 1 V/100 Ω, 14 V max.
Stereo line: 1 V/600 Ω, 7 V max.
Stereo master: -
Filter, low cut: 15-240 Hz, 6 dB/oct.
Filter, high cut: -
Filter, subsonic: 15 Hz, 18 dB/oct.
Gain, mic: 15-75 dB
Gain, stereo line: -
S/N ratio, mic:>68 dB (unweighted)>87 dB (weighted)
S/N ratio, line: -
THD:<0.01 %
Power supply: via supplied plug-in PSU
Dimensions: 116x55x135 mm

Price per unit (Order No. mo-320710) EUR 247,30 excl. VAT: € 207.82 / $ 241.07

Stereo phono anti-distortion preamplifier acc. to RIAA SPR-6

Stereo phono anti-distortion preamplifier acc. to RIAA, for connecting a turntable to the aux input or line input of a hi-fi system, a mixer or an amplifier, etc. Low hum effect due to metal case and supplied plug-in PSU.

Specifications:

General Information:
Input: 5mV/47kΩ
Output: 450mV/100kΩ
Frequency range: 20-20,000Hz
S/N ratio:>50dB
Power supply: via suppl. plug-in PSU
Dimensions: 67x37x121mm
Weight: 200g
Inputs: 1 x RCA L/R
Outputs: 1 x RCA L/R

Price per unit (Order No. mo-210640) EUR 60,19 excl. VAT: € 50.58 / $ 58.67

ine/phono adapter LPC-1

Line/phono adapter, a stereo line source (e.g. CD player, tape deck, tuner, etc.) can be connected to an unused phono input (mag.). No power supply required.

Input: 2 x RCA, 56 kΩ/1 kHz
Output: 2 x RCA, 560 Ω/1 kHz
Dimensions: 37x53x22 mm
Weight: 50 g

Price per unit (Order No. mo-210600) EUR 34,63 excl. VAT: € 29.10 / $ 33.76

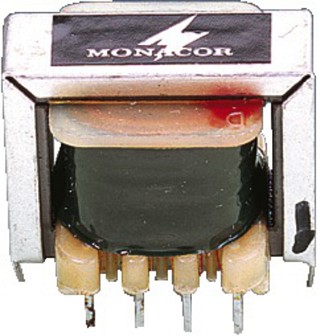

Audio transformer 1:1/2:1 for line signals LTR-110

Audio transformer 1:1/2:1 for line signals

Unshielded version with print connections
Wideband version
Change from unbalanced to balanced and vice versa
Galvanic isolation to avoid/eliminate hum loops
Various level adjustment possibilities when windings are arranged accordingly

When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Specifications:

Frequency range: 15-30,000 Hz
Transformation ratio: 1:1/2:1
Input impedance: 600 Ω
Output impedance: 600 Ω/300 Ω
Optimum source imped.: 50-600 Ω
Optimum load imped.: 5k Ω
Max. input voltage (1% THD/40 Hz): 5 V
Dimensions: 25x19x19.5 mm
Weight: 28 g
Inputs:
Outputs:

Price per unit (Order No. mo-210500) EUR 18,36 excl. VAT: € 15.43 / $ 17.90

Microphone splitter MPS-1

Microphone splitter, for distributing one input signal to two outputs, e.g. monitor mixer and main mixer.Galvanically isolated output with ground lift switch and feed-through output XLR connections (600 Ω) for input and output Frequency range: 35-30,000 Hz Dimensions: 100x80x40 mm Weight: 310 g

Price per unit (Order No. mo-243790) EUR 31,81 excl. VAT: € 26.73 / $ 31.01

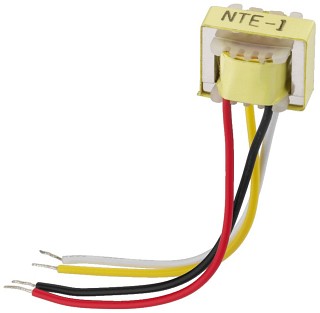

Audio transformer 1:1 for microphone signals NTE-1

Audio transformer 1:1 for microphone signals, from NEUTRIK.

Very compact design, e.g. also suitable for the installation into connector housings
Unshielded version with bare wire connections (70 mm)
Wideband version
Balance adjustment
Galvanic isolation to avoid/eliminate hum loops
Max. input voltage: 550 mV (1 % THD/50 Hz)

When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Specifications:

General Information:
Frequency range: 20-20,000 Hz
Inputs: 200 Ω
Outputs: 2 kΩ
Transmission ratio: 1:1
Admiss. ambient temp.:
Dimensions: 14x11x12 mm (w/o cable)
Weight: 4g
Inputs:
Outputs:

Price per unit (Order No. mo-212370) EUR 12,01 excl. VAT: € 10.09 / $ 11.71

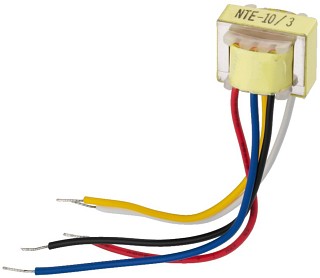

Audio transformer 1:3/1:10 for microphone signals NTE-10/3

Audio transformer 1:3/1:10 for microphone signals, from NEUTRIK.

Very compact design, e.g. also suitable for the installation into connector housings
Unshielded version with bare wire connections (70mm)
Wideband version
Balance adjustment
Galvanic isolation to avoid/eliminate hum loops
Suitable e.g. for level matching, can be used for the connection of wireless microphone receivers to line inputs
Max. input voltage: 350mV/380mV (1% THD/50Hz)

When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Specifications:

General Information:
Frequency range: 20-20,000 Hz
Inputs: 200 Ω
Outputs: 10 kΩ/50 kΩ
Transmission ratio: 1:3/1:10
Admiss. ambient temp.:
Dimensions: 14x11x12 mm (w/o cable)
Weight: 4 g
Inputs:
Outputs:

Price per unit (Order No. mo-212380) EUR 14,74 excl. VAT: € 12.39 / $ 14.37

Adjustable attenuator for balanced microphones MA-123

Adjustable attenuator for balanced microphones

PA applications and sound pick-ups where high microphone output levels are to be expected, sometimes need a smooth touch in order to prevent an overload of the input stage of the following unit. The user is doomed if the mixer or preamplifier does not feature any level adjustment at all for the incoming microphone signal. The MA-123 is the answer to these problems. It is simply connected between microphone and signal input stage. The attenuation can be selected in 3 steps: 10 dB, 20 dB and 30 dB. Also suitable for balanced condenser/electret microphones with phantom power.

Specifications:

Frequency range: 22-22,000 Hz
Attenuation: 10 dB, 20 dB, 30 dB
Input impedance: 1.6 kΩ @ -10 dB
Output impedance: 660 Ω @ -10 dB
Connection: XLR jack, XLR plug
Dimensions: Ø 20.5 mm x 113 mm
Weight: 50 g

Price per unit (Order No. mo-235490) EUR 21,51 excl. VAT: € 18.08 / $ 20.97

Transformer FGA-22

Transformer, for connecting speaker outputs of a car radio to the line inputs of an amplifier.

Internal ground separation
Bare cable ends, gold-plated RCA jacks
Max. input power: 20 WRMS
Input/output impedance: 120 Ω/200 Ω
Frequency range: 20-30,000 Hz
THD:<0.001 %
Ø 35 mm x 65 mm, 65 g

Price per unit (Order No. mo-066360) EUR 17,25 excl. VAT: € 14.50 / $ 16.82

Transformer with switching voltage generation FGA-22S

Transformer with switching voltage generation, for connecting speaker outputs of a car radio to the line inputs of an amplifier.

For the operation with car audio systems without switching voltage output. Also suitable for the connection of units in locations without direct access to the switching voltage of the car radio (e.g. in the boot).
The switching voltage (REM) is generated independently of the audio signal, also when the music stops
Internal ground separation
Screw terminals, gold-plated RCA jacks
Max. input power: 20 WRMS
Input/output impedance: 20 kΩ/10 kΩ
Frequency range: 20-30,000 Hz
THD:<0.01 %
Power supply: 12 V DC current /25 mA
43x27x100 mm, 70 g

Price per unit (Order No. mo-067550) EUR 27,32 excl. VAT: € 22.96 / $ 26.63

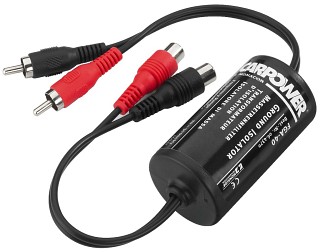

Ground isolator FGA-40

Ground isolator, for preventing signal interference and hum loops which may occur, e.g. when connecting the car radio to an amplifier.

Galvanically isolated inputs and outputs
RCA plugs and RCA jacks
Input/output impedance: 15 kΩ
Frequency range: 20-30,000 Hz
THD:<0.001 %
Transmission ratio 1:1
Ø 35 mm x 65 mm, 65 g

Price per unit (Order No. mo-064370) EUR 18,76 excl. VAT: € 15.76 / $ 18.29

NEUTRIK XLR/RCA balancing adapter/ground isolator NA-2MD0BTX

NEUTRIK XLR/RCA balancing adapter/ground isolator

XLR plug to RCA jack
Signal will be balanced 1:1 at separated ground, interference and hum loops are prevented
Galvanic isolation between input signal and output signal
Input/output impedance: 200 Ω
Black aluminium body
For passive DI applications, e.g. from the output of a mixer to a power amplifier
Not suitable for speaker applications!

Price per unit (Order No. mo-347680) EUR 49,00 excl. VAT: € 41.18 / $ 47.76

NEUTRIK XLR/6.3 mm balancing adapter/ground isolator NA-2MJTX

NEUTRIK XLR/6.3 mm balancing adapter/ground isolator

XLR plug to 6.3 mm jack
Signal will be balanced 1:1 at separated ground, interference and hum loops are prevented
Galvanic isolation between input signal and output signal
Input/output impedance: 200 Ω
Black aluminium body
With latching device
For passive DI applications, e.g. from the output of an instrument to a mixer
Not suitable for speaker applications!

Price per unit (Order No. mo-347660) EUR 49,00 excl. VAT: € 41.18 / $ 47.76
