Boundary microphones

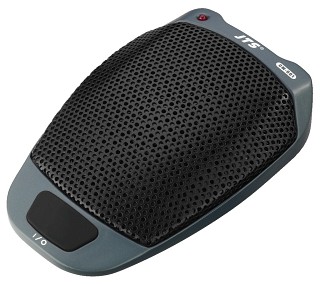

Electret boundary microphone CM-601

Electret boundary microphone

The professional aid for unobtrusive microphone applications, e.g. at theatrical performances, discussions, conferences and in churches. A direct alignment to the sound source is not essential due to the special characteristics of a boundary microphone. The CM-601 is a valuable aid for various sound pick-up situations due to extensive features like dual low cut filter (80 Hz/120 Hz), configurable push-button (PTT, PTM or switching function), standby LED, robust and shock-absorbing body, a highly effective and elastic cartridge suspension for preventing structure-borne noise and impact sound.

Specifications:

System: electret/semi-cardioid
Frequency range: 30-12,000 Hz
Impedance: 100 Ω
Sensitivity: 22 mV/Pa/1 kHz
Max. SPL: 125 dB
Power supply: 48 V DC current phantom power
Connection, microphone: -
Connection, cable: XLR, bal.
Housing: diecast metal
Weight: 310 g

Price per unit (Order No. mo-235010) EUR 136,40 excl. VAT: € 114.62 / $ 132.96

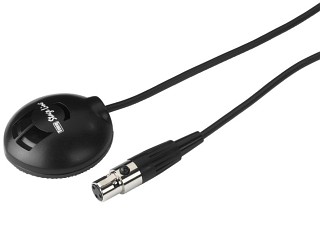

Boundary microphone ECM-300B

Boundary microphone

Extra compact version
Phantom power via adapter EMA-300P, available at option
With 6 m connection cable, 3-pole mini XLR

Specifications:

System: electret/semicardioid
Frequency range: 30-20,000 Hz
Impedance: 300 Ω
Sensitivity: 4 mV/Pa/1 kHz
Max. SPL: 120 dB
Power supply: 17-48 V via power supply adapter
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 43 mm x 15 mm
Weight: 40 g
Connection: 3-pole mini XLR, unbal.

Price per unit (Order No. mo-232390) EUR 38,78 excl. VAT: € 32.59 / $ 37.80

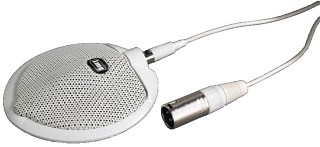

undary microphones ECM-302B/WS

Boundary microphones

Integrated electronics for the direct connection to a phantom power supply 17-48 V DC current
Transformer-balanced AF output
With 6 m connection cable, 3-pole mini XLR/XLR

ECM-302B = black version

ECM-302B/WS = white version

Boundary microphone

Integrated electronics for the direct connection to a phantom power supply 17-48 V DC current
Transformer-balanced AF output
With 6 m connection cable, 3-pole mini XLR/XLR

Specifications:

System: electret/semicardioid
Frequency range: 30-20,000 Hz
Impedance: 250 Ω
Sensitivity: 22 mV/Pa/1 kHz
Max. SPL: 140 dB
Power supply: 17-48 V DC current , ext. (phantom power)
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 120 mm x 22 mm
Weight: 350 g
Connection: 3-pole mini XLR, bal. (cable: XLR)

Price per unit (Order No. mo-233630) EUR 129,30 excl. VAT: € 108.66 / $ 126.04

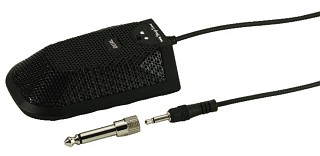

Boundary microphone ECM-304BD

Boundary microphone

Switchable between cardioid characteristic and omnidirectional characteristic
Voltage supply via 1.5 V button cell (not supplied). Phantom power via mixer not required
With 4 m connection cable, 3.5/6.3 mm plug

Especially suitable for the use as a desktop microphone!

Specifications:

System: electret/cardioid/omnidir.
Frequency range: 30-20,000 Hz
Impedance: 600 Ω/1,000 Ω
Sensitivity: 7 mV/Pa/1 kHz
Max. SPL: -
Power supply: 1.5 V button cell (LR44)
Admiss. ambient temp.: 0-40 °C
Dimensions: 70x96x20 mm
Weight: 300 g
Connection: 3.5 mm plug

Price per unit (Order No. mo-232510) EUR 50,70 excl. VAT: € 42.61 / $ 49.42

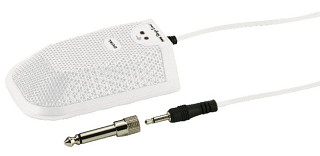

oundary microphones ECM-304BD/WS

Boundary microphonesSwitchable between cardioid characteristic and omnidirectional characteristic

Voltage supply via 1.5 V button cell (not supplied). Phantom power via mixer not required
With 4 m connection cable, 3.5/6.3 mm plug

ECM-304BD = black version

ECM-304BD/WS = white version

Boundary microphone

Switchable between cardioid characteristic and omnidirectional characteristic
Power supply via 1.5 V button cell (not supplied). Phantom power via mixer not required
With 4 m connection cable, 3.5/6.3 mm plug

Especially suitable for the use as a desktop microphone!

Specifications:

System: electret/cardioid/omnidir.
Frequency range: 30-20,000 Hz
Impedance: 600 Ω/1,000 Ω
Sensitivity: 7 mV/Pa/1 kHz
Max. SPL: -
Power supply: 1.5 V button cell (LR44)
Admiss. ambient temp.: 0-40 °C
Dimensions: 70x96x20 mm
Weight: 300 g
Connection: 3.5 mm plug

Price per unit (Order No. mo-233270) EUR 50,70 excl. VAT: € 42.61 / $ 49.42

Boundary microphone ECM-306B/SW

Boundary microphone

On/off switch with power LED
Low cut and 10 dB attenuation, switchable
Integrated electronics for the direct connection to a phantom power supply 17-48 V DC current
Electronically balanced AF output
With 6 m connection cable, 3-pole mini XLR/XLR plug
Supplied in a foam-padded plastic case

Especially suitable for the use as a desktop microphone!

Specifications:

System: electret/semi-supercardioid
Frequency range: 30-20,000 Hz
Impedance: 250 Ω
Sensitivity: 22 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 17-48 V DC current , ext. (phantom power)
Admiss. ambient temp.: 0-40 °C
Dimensions: 90x16x90 mm
Weight: 200 g
Connection: 3-pole mini XLR, bal. cable (XLR)

Price per unit (Order No. mo-235790) EUR 99,86 excl. VAT: € 83.92 / $ 97.34
