Wireless microphones: accessories

Stereo in-ear earphones IE-5

Stereo in-ear earphones

The perfect sound allows for maximum joy of playing music! The IE-5 is a wideband in-ear earphone in BA technology (Balanced Armature) which provides an impressively transparent sound rich in detail. The supplied pairs of silicone sleeves in different sizes ensure a perfect fit in the ear canal and an excellent isolation of the background noise, thus providing a defined bass reproduction. The formable and individually adjustable ear hook facilitates the positioning of the earphones and additionally ensures a high reliability, regardless of whether the cable runs at the front or at the back. The fabric-reinforced anti-twist cable can easily be replaced (replacement cable: IE-5C). Very important for long gigs: Due to the ergonomic design, no more earache! The earphones are very comfortable to wear without pressure even after hours of wearing. The IE-5 is supplied with three pairs of silicone sleeves, cleaning utensils (for removing cerumen) and a hard transport case.

Specifications:

Headphones:
Driver:
System: balanced armature
Frequency range: 20-13,000 Hz
Impedance: 13 Ω
Max. input power: 100 mW
Sensitivity: 115 dB SPL/mW
Cable: 1.4 m
Plug: 3.5 mm stereo plug
Adapter:
Weight w/o cable: 5 g
Microphone:
System:
Frequency range:
Impedance:
Sensitivity:
Power supply:
Connections:

Price per unit (Order No. mo-221240) EUR 159,70 excl. VAT: € 134.20 / $ 155.67

Stereo in-ear earphones IE-1

Stereo in-ear earphones

The right basis for a clear monitoring! This wideband earphone was especially designed for the application with the in-ear system SIEM. It provides a musical experience rich in detail due to a brilliant reproduction of the high frequencies, a natural midrange and a reproduction of the complete bass frequencies. Three pairs of silicone sleeves in different sizes ensure an excellent isolation of the background noise and a perfect fit. They are very comfortable to wear without pressure even after hours of wearing.

Specifications:

Headphones:
Driver:
System: dynamic
Frequency range: 20-20,000 Hz
Impedance: 16 Ω
Max. input power: 100 mW
Sensitivity: 114 dB SPL/mW
Cable: 1.5 m
Plug: 3.5 mm stereo plug
Adapter:
Weight w/o cable: 6 g
Microphone:
System:
Frequency range:
Impedance:
Sensitivity:
Power supply:
Connections:

Price per unit (Order No. mo-220810) EUR 77,81 excl. VAT: € 65.39 / $ 75.85

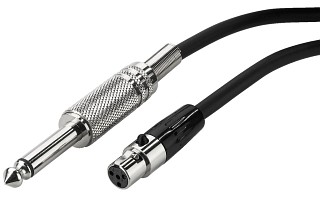

Guitar cable / bass guitar cable GC-80

Guitar cable / bass guitar cable. For connecting an electric guitar to the PT pocket transmitters. The 70 cm cable is fitted with a 6.3 mm metal plug with cable bending protection as well as a 4-pole mini XLR inline jack with self-latching device.

Price per unit (Order No. mo-067070) EUR 13,35 excl. VAT: € 11.22 / $ 13.01

482 mm (19", 1 RS) unit holder RCB-870

Wireless microphones: accessories, 482 mm (19 — Enlarge

482 mm (19", 1 RS) unit holder, for the installation of two multifrequency receiver units TXS-871, TXS-872 or TXS-852. Supplied with dummy cover. Dimensions: 482x44x108 mm

Price per unit (Order No. mo-242830) EUR 42,81 excl. VAT: € 35.97 / $ 41.73

482 mm (19") mounting set RM-10SET

482 mm (19") mounting set. For mounting two true diversity UHF PLL wideband receivers UF-10R/12 into a rack cabinet. Consisting of two metal mounting brackets and two aluminium connecting rails.

Price per pair (Order No. mo-254950) EUR 44,06 excl. VAT: € 37.03 / $ 42.95

Phantom power supply adapter EMA-1

Phantom power supply adapter

For elelctret microphones and electret microphone cartridges
Also as a phantom power adapter for mixers with phantom power supply +48 V DC current
Internal power supply via 1.5 V battery AA size (not supplied)
Mini XLR input
XLR output

Specifications:

Frequency range:
Input impedance:
Phantom power: via mixer 48 V DC current
Power supply: 1.5 V batt. AA size
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 22 mm x 170 mm
Weight: 75 g

Price per unit (Order No. mo-232120) EUR 47,14 excl. VAT: € 39.61 / $ 45.95

Phantom power supply adapter EMA-300P

Phantom power supply adapter

For connecting ECM-300B, ECM-300L and other microphones with 3-pole mini XLR connector to a mixer with 48 V phantom power
Mini XLR plug and XLR plug, 3 poles

Specifications:

Frequency range:
Input impedance:
Phantom power: via mixer
Power supply: -
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 19 mm x 92 mm
Weight: 80 g

Price per unit (Order No. mo-232410) EUR 47,14 excl. VAT: € 39.61 / $ 45.95

Adapter screw MAC-10

Adapter screw

Outside thread: 16 mm ( 5/8 ")
Inside thread, combined: 9 mm ( 3/8 ")
For microphone stands and goosenecks

Price per unit (Order No. mo-233070) EUR 2,55 excl. VAT: € 2.14 / $ 2.49

Adapter screw MAC-30

Adapter screw

Inside thread: 16 mm ( 5/8 ")
Outside thread: 9 mm ( 3/8 ")

Price per unit (Order No. mo-233080) EUR 2,97 excl. VAT: € 2.50 / $ 2.90

Adapter screw MAC-50

Adapter screw

Inside thread: 9 mm ( 3/8 ")
Outside thread: 6.3 mm (¼"), camera thread
Suitable for portable audio recorders, e.g. H-1 or H-2N

Price per unit (Order No. mo-236350) EUR 2,91 excl. VAT: € 2.45 / $ 2.84

Adapter screw MAC-60

Adapter screw

Inside thread: 9 mm ( 3/8 ")
Outside thread: 12.7 mm (½")

Price per unit (Order No. mo-236360) EUR 2,44 excl. VAT: € 2.05 / $ 2.38

Adapter screw MAC-70

Adapter screw

Inside thread: 9 mm ( 3/8 ")
Outside thread: M8 x 18 mm
Suitable for the speaker systems PAB-303/..., PAB-305/..., ESP-303/... and ESP-305/...

Price per unit (Order No. mo-236390) EUR 2,61 excl. VAT: € 2.19 / $ 2.54

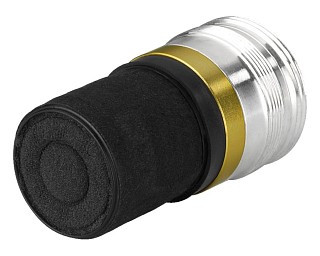

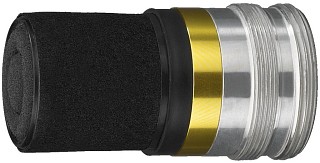

Replacement microphone cartridge MD-821HT

Replacement microphone cartridge, dynamic, cardioid characteristic, for hand-held microphones of the series TXS-100SET to TXS-103SET, TXS-140SET to TXS-143SET as well as the series TXS-220HT to TXS-223HT and TXS-821HT to TXS-822HT.

Specifications:

Frequency range: 50-15,000 Hz
Sensitivity: 2.5 mV/Pa/1 kHz
Output impedance: 600 Ω/1 kHz
S/N ratio: -
Coupling capacitor: -
Admiss. ambient temp.: 0-40 °C
Power supply: -

Price per unit (Order No. mo-235470) - not available

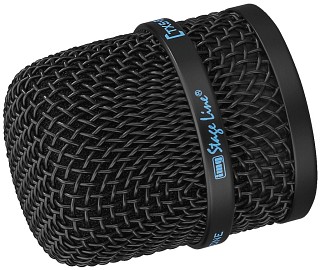

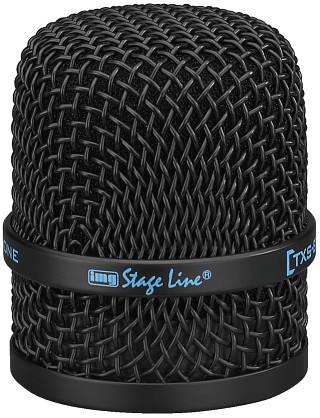

Condenser microphone cartridge for TXS-872HT/TXS-871HT MD-872

Condenser microphone cartridge for TXS-872HT/TXS-871HT

Supercardioid characteristic
Ideally suited for vocals, especially for musicians and stage applications
With extended frequency range, more precise bass frequencies and more brilliant high frequencies
Frequency range: 50-18,000 Hz
Impedance: 2.2 kΩ
Sensitivity: 7 mV/Pa/1 kHz
S/N ratio: 77 dB

Suitable as a replacement cartridge for the hand-held microphone transmitters TXS-891HT, TXS-892HT and TXS-895HT.

Price per unit (Order No. mo-233440) EUR 78,68 excl. VAT: € 66.12 / $ 76.70

Clip MH-2/SK

Clip, for the connection cables of headband or earband microphones.

Beige lacquered metal version
For cables up to: Ø 1.5 mm

Price per unit (Order No. mo-235770) EUR 11,18 excl. VAT: € 9.39 / $ 10.90

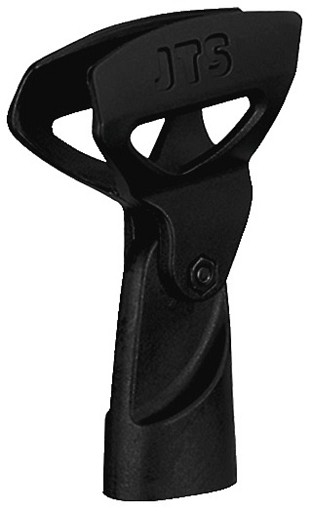

Microphone holder for wireless microphones MH-56

Microphone holder for wireless microphones The special composition of plastic materials of this microphone holder guarantees a high flexiblity at an optimum form stability. Suitable for wireless microphones. A rubber surround additionally allows for a secure fit and avoids scratches on the microphone. To be fixed alternatively at 9mm ( 3/8 ") or 16mm ( 5/8 ") stand threads.

Price per unit (Order No. mo-234730) EUR 6,73 excl. VAT: € 5.66 / $ 6.56

Neckband NM-43

Neckband. The NM-43 is the ideal addition to the CM-501. In combination with the lightweight and easy-to-adjust neckband (lightweight plastic version), the CM-501 lavalier microphone is positioned near the mouth. A type of headband microphone is thus created which features are based on this type of microphone, e.g. more freedom of head movements without serious change of the signal level. Supplied without microphone!

Price per unit (Order No. mo-235070) - not available

Adapter NTA-4M

Adapter 4-pole mini XLR inline jack to 2.5 mm stereo inline jack. For connecting headband and earband microphones HSE-60A/SK, HSE-70A/SK, HSE-150A/SK and HSE-152A/SK to TXS-882HSE and wireless transmission systems of other manufacturers. For the pin assignment, see technical drawing.

Price per unit (Order No. mo-235230) EUR 27,85 excl. VAT: € 23.40 / $ 27.15

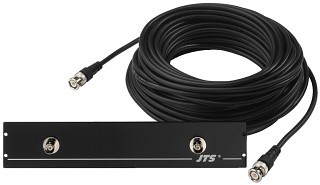

Coaxial antenna cable RTF-20

Coaxial antenna cable 2 x 20 m RG-58U coaxial cable with 2 x BNC plug each, e.g. for connecting offset antennas to respective UHF PLL receivers of the UF/US/IN series or the in-ear monitoring transmitter SIEM-111/R. Supplied with a mounting plate (1 RS), with cutouts for two BNC bushings which are supplied, too.

Specifications:

Frequency range: 10-1,000 MHz
Attenuation/100 m @ 100 MHz: 7 dB
Screening value @ 100 MHz: 20 dB
Impedance level: 50 Ω
Connection: 2 x BNC plug
Length: 20 m
Outside diameter (cable): 5 mm
Dimensions (mounting plate): 227x44x1.6 mm
Weight (cable): 700 g

Price per unit (Order No. mo-252060) EUR 69,66 excl. VAT: € 58.54 / $ 67.90

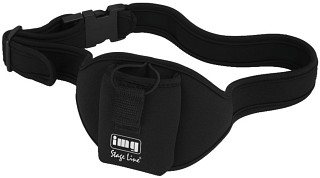

Belt bag, black TXS-10BELT/SW

Belt bag, black, suitable for wireless pocket transmitters from MONACOR, IMG Stage Line and JTS.

Ideally suited for mobile applications (e.g. at sports)
Flexible, adjustable strap
Bag with hook and loop fastener

Price per unit (Order No. mo-235460) EUR 25,97 excl. VAT: € 21.82 / $ 25.32

Replacement telescopic antenna TXS-1BNC

Replacement telescopic antenna

For VHF 175-225 MHz
BNC connection

Price per unit (Order No. mo-247750) EUR 16,04 excl. VAT: € 13.48 / $ 15.64

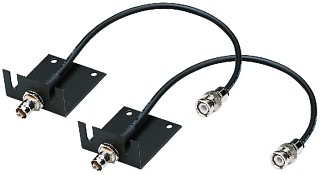

Mounting brackets TXS-35BNC

Mounting brackets, for offset antenna mounting.

For 482 mm (19") rack installation
Aluminium, black lacquered
Fixed BNC jack, 35 cm antenna cable with BNC plug

Price per pair (Order No. mo-247760) EUR 36,39 excl. VAT: € 30.58 / $ 35.47

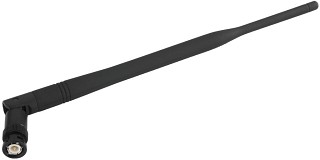

Replacement rod antenna TXS-81ANT

Replacement rod antenna, for UHF frequency receiver unit TXS-871.

Perfect reception due to half-wave length tuning ( /2)
Folding 90°, with 45° locking
Flexible, with insulating plastic sheathing
BNC connection
Total length: 245 mm

Price per unit (Order No. mo-253730) EUR 31,17 excl. VAT: € 26.19 / $ 30.38

Replacement rod antenna TXS-82ANT

Replacement rod antenna, especially suitable for UHF frequency receiver units TXS-872, TXS-892 and antenna amplifier TXS-870B.

Perfect reception due to half-wave length tuning ( /2)
Folding 90°, with 45° locking
Flexible, with insulating plastic sheathing
BNC connection
Total length: 245 mm

Price per unit (Order No. mo-253180) EUR 31,17 excl. VAT: € 26.19 / $ 30.38

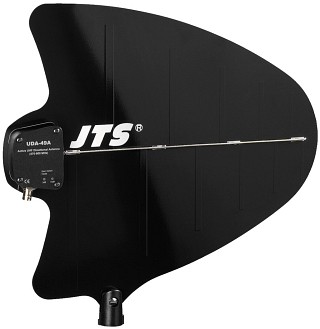

Active UHF directional antenna UDA-49A

Active UHF directional antenna. Compared with standard omnidirectional antennas, the UDA-49A allows for a better reception and a larger transmission range of 470-870 MHz. The directional characteristic ensures a higher suppression of unwanted RF signals, minimum signal cancellation caused by multipath receptions and a reduction of interference susceptibility. The design also allows for reliable short-term outdoor applications. The integrated antenna amplifier for which the power is supplied externally, compensates transmission losses which usually occur with longer cables. For mobile applications, the UDA-49A can be mounted onto any microphone stand with 9 mm ( 3/8 ") or 16 mm ( 5/8 ") thread. The power for the antenna amplifier is supplied directly via UHF PLL receivers of the US/IN series which are equipped accordingly or the active antenna splitter UA-948. Two UDA-49A are required for diversity reception.

Specifications:

Frequency range: 470-870 MHz
Aperture angle: 100°
Antenna gain: 10 dB
Gain: 3 dB/10 dB, switchable, display via LEDs
Power supply: 12 V DC current /50 mA, remote power supply (external power supply)
Impedance level: 50 Ω
Connection: BNC jack
Support: 9 mm ( 3/8 ") or 16 mm ( 5/8 ")
Dimensions: 360x350x36 mm (sheet thickness: 1.7 mm)
Weight: 350 g

Price per unit (Order No. mo-150630) EUR 196,83 excl. VAT: € 165.40 / $ 191.87

Passive UHF directional antenna UDA-49P

Passive UHF directional antenna. The UDA-49P can be used both as a reception antenna for wireless microphone systems or as a transmitting antenna for wireless in-ear monitoring systems, e.g. the SIEM-111/2 or SIEM-2/2 from JTS. Compared with standard omnidirectional antennas, the UDA-49P allows for a better reception and a larger transmission range of 470-870 MHz. The directional characteristic ensures a higher suppression of unwanted RF signals, minimum signal cancellation caused by multipath receptions and a reduction of interference susceptibility. The design also allows for reliable short-term outdoor applications. For mobile applications, the UDA-49P can be mounted onto any microphone stand with a 9 mm ( 3/8 ") or 16 mm ( 5/8 ") thread. Two UDA-49P are required for diversity reception.

Specifications:
