Monitors and brackets / supports

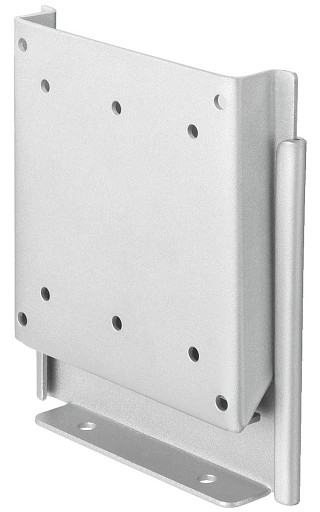

Wall support for LCD monitors MST-10

Wall support for LCD monitors, also suitable for wall mounting of speaker systems.

VESA 75 standard, VESA 100 standard
Mounting plate for monitor can be removed, to be secured with screws
Silver lacquered metal version
Suitable for LCD monitors with a diagonal screen size: 25-61 cm (10-24")
Supplied with screws for securing the monitor and mounting screws for 10 mm wall plugs (please use suitable wall plugs for the respective wall material, to be purchased separately)
Maximum load: 10 kg
Own weight: 590 g

Please use safety rope.

Price per unit (Order No. mo-181130) - not available

Wall support for LCD monitors MST-16

Wall support for LCD monitors

VESA 75 standard, VESA 100 standard
Movable and tiltable
Silver lacquered metal version
For LCD monitors with a diagonal screen size: 25-61 cm (10-24")
Supplied with screws for securing the monitor and mounting screws for 10 mm wall plugs (please use suitable wall plugs for the respective wall material, to be purchased separately)
Maximum load: 5 kg
Own weight: 1.1 kg

Please use safety rope.

Price per unit (Order No. mo-181160) - not available

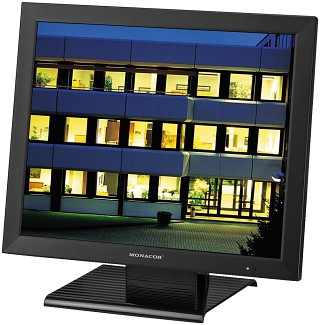

LCD colour monitor in a metal housing for surveillance systems TFT-1904LED

LCD colour monitor in a metal housing for surveillance systems, with LED backlight for a very detailed image of high colour brilliance, with HDMI™ connection.

Visible diagonal screen size: 48 cm (19")
Response time: 3.7 ms
Viewing angle: 170° horizontal, 160° vertical
Contrast ratio: 1,000:1
Brightness: 250 cd/m2, 16.7 million colours
2 video inputs, switchable, feed-through output
2 RCA audio inputs, feed-through output
Additional connections: HDMI™, DVI, VGA and S-video
Built-in speaker
Operation via on-screen menu (OSD)
Display options: full image, picture-in-picture (PIP), picture-over-picture (POP)
Perforated rear panel according to VESA 100 standard
Supplied with base, VGA cable, RCA audio cable and matching PSU

Specifications:

General information:
Colour system: PAL/NTSC
Resolution: 1280x1024 pixels
Inputs:
Audio:
Video: 1 Vpp/75 Ω
Outputs:
Audio: -
Video: 1 Vpp/75 Ω
Power supply: via suppl. PSU
Admiss. ambient temp.: 0-40 °C
Dimensions: 425x352x53 mm (w/o base)
Mount. cutout/mount. depth: -
Dimensions front panel: -
Weight: 3.7 kg (w/o base)
Connections:
Audio/video: 2 x BNC in (video 1+2) 2 x BNC out (video 1+2), feed-through output 1 x D-sub (VGA) 1 x DVI 1 x HDMI™ 1 x S-video 1 x 3.5 mm stereo jack, audio in 2 x RCA, audio in 2 x RCA, audio out, feed-through output 1 x USB
Power supply: 1 x low-voltage jack

Price per unit (Order No. mo-183100) - not available
